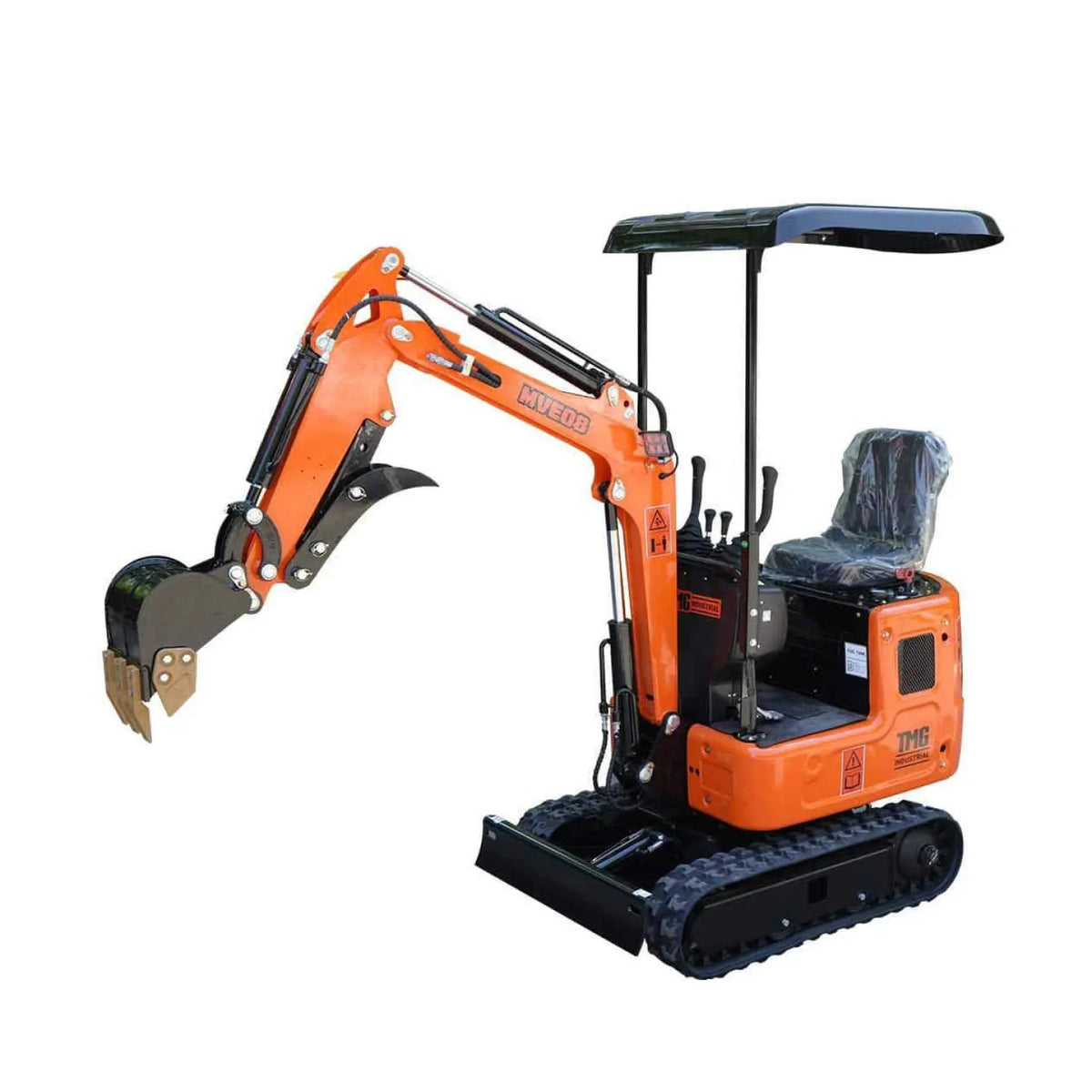

Compact Mini Excavator, 13.5 HP Briggs & Stratton XR Gas Engine, 61-½" Max. Digging Depth, 1900 Lb Operating Weight TMG-MVE08
- Richmond Warehouse 2 in stock
- Mississauga Warehouse 1 in stock
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store
The TMG-MVE08 Mini Compact Excavator is a heavy-duty powerhouse packed into a small, easy-to-use package. Featuring a reliable 13.5 HP Briggs & Stratton XR Series air-cooled gas engine with EPA certification, this excavator is designed for both flexibility and safety.
The user-friendly operation panel makes for a quick learning curve, and the spacious operator area enhances comfort for all users. With an operating weight of 1900 lb and a maximum digging depth of 61-½", this backhoe-type excavator is perfect for tasks of all shapes and sizes.
Auxiliary hydraulics come standard, providing power for multiple attachments. The compact design ensures reduced dead angles, enhancing worker safety during operation. Ideal for tight spaces and versatile projects. Includes a dozer blade and mechanical thumb.
- Operating weight: 1,900 lb
- Standard bucket capacity: 0.5 cu ft
- Working device form: Backhoe
- Maximum travel speed: 1.8 km/h
- Maximum gradability: 30°
- Track ground pressure: 25.53 kPa
- Hydraulic oil tank capacity: 12.5 L
- Fuel tank capacity: 5.5 L
- Maximum tractive force: 6.8 kN
- Mechanical thumb: Included
- Hydraulic pump brand: Parker
- Hydraulic flow rate: 21.6 L/min
Operating Range:
- Maximum digging depth: 61-1/2"
- Overall operating height (fully raised): 100"
- Maximum digging radius: 114"
- Maximum unloading height: 75"
- Minimum turning radius: 61"
- Maximum lifting height, dozer blade: 6"
- Maximum depth, dozer blade: 6"
- Dipper boom digging force: 6.1 kN
- Bucket digging force: 9.2 kN
Main Dimensions:
- Track length: 47"
- Upper chassis ground clearance: 15"
- Counterweight turning radius: 32"
- Chassis width: 36"
- Track width: 7"
- Track height: 12"
- Transportation length: 85"
- Seat height from ground: 40-1/2"
- Overall height: 87"
Engine:
- Model: Briggs & Stratton XR Series, Model #25T2
- Type: Single-cylinder, air-cooled, 4-stroke, OHV
- Displacement: 420 cc
- Maximum output power: 13.5 HP / 3600 RPM
- Start type: Electric start with battery included
- Oil capacity: 6.6 L
- Engine oil type: 10W-30, 1.1 L
- Powered by 13.5 HP Briggs & Stratton XR Series Gas Engine with EPA certification
- Equipped with a convenient and simple-to-use operation panel; minimal training required
- Safety is prioritized with reduced dead angles to protect workers and prevent accidents
- Spacious operator area is ergonomically designed for maximum comfort
- Includes a standard dozer blade and a mechanical thumb attachment
