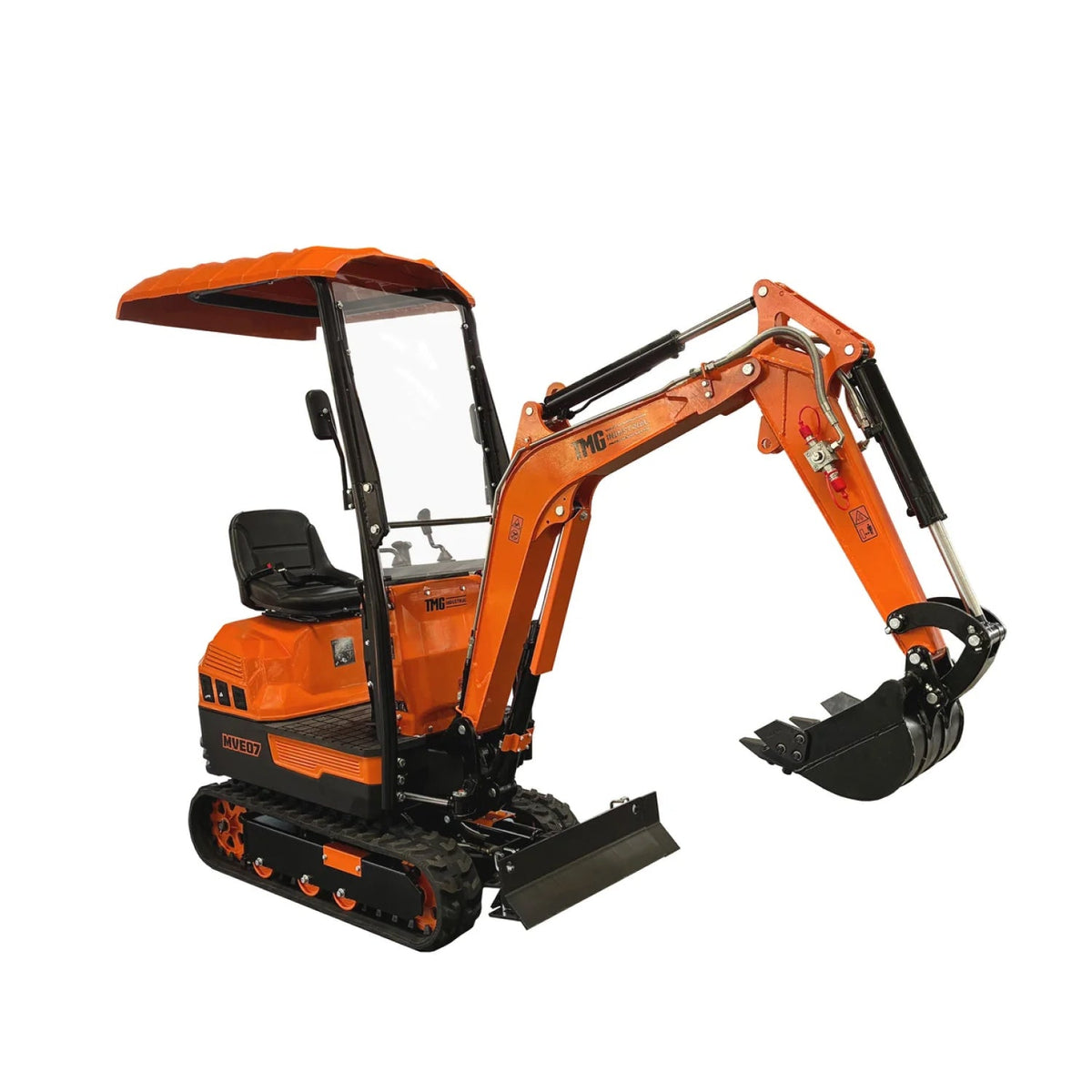

2200 LB Compact Mini Excavator, 420cc/14 HP Gas Engine, 13-¾” Bucket Width, 2765 Lb Digging Force, TMG-MVE07

The TMG-MVE07 Mini Compact Excavator is a compact powerhouse designed for easy operation and versatile performance. Powered by a durable 14 HP gas engine with EPA certification, this excavator delivers reliable power while maintaining flexibility and operator safety.

The user-friendly control panel provides a short learning curve, while the spacious operator area enhances comfort during extended use. With an operating weight of 2200 lb and a maximum digging depth of 69 1/4", this backhoe-style excavator is ideal for a wide range of digging and material handling tasks.

Auxiliary hydraulics come standard, allowing compatibility with multiple attachments for increased versatility. Equipped with a dozer blade, the compact design helps reduce blind spots and improve operator visibility and safety during operation. Ideal for tight spaces and demanding projects, the TMG-MVE07 delivers dependable performance in a highly maneuverable package.

• Operating Weight: 2200 lb (1000 kg)
• Bucket Width: 13-3/4" (350 mm)
• Bucket Capacity: 0.8 cu ft (0.023 m³)
• Working Device Form: Backhoe
• Bucket Digging Force: 2765 lb (12.3 kN)
• Max Travel Speed: 1.8 mph
• Max Gradeability: 25°
• Track Type: Rubber crawler
• Track Ground Pressure: 4.2 PSI (29 kPa)
• Hydraulic Tank Capacity: 3.6 gal (13.5 L)
• Parking Brake: Hydraulic lock
• Max Traction Force: 7.6 kN
• Swing Speed: 8.8 RPM
• Boom Swing: Left 45° / Right 85°
• Pump Capacity: 3.4 GPM (13 L/min)
• Tip-Over Protection Structure (TOPS)

Operating Range

• Max Digging Depth: 69-1/4" (1760 mm)
• Overall Operating Height (Fully Raised): 120-1/4" (3055 mm)
• Max Digging Radius: 126-3/8" (3210 mm)
• Max Unloading Height: 83-1/4" (2115 mm)
• Min Turning Radius: 56" (1420 mm) or 53-1/2" (1360 mm with boom swing)
• Max Lifting Height Dozer Blade: 8-1/4" (210 mm)
• Max Depth Dozer Blade: 7-7/8" (200 mm)

Main Dimensions

• Track Length: 47-1/2" (1330 mm)
• Track Width: 7" (180 mm)
• Track Height: 6" (150 mm)
• Upper Chassis Ground Clearance: 14-1/2" (375 mm)
• Chassis Width: 28-3/8" to 35-1/2" (720 - 900 mm)
• Transportation Length: 115-1/4" (2925 mm)
• Height of Seat to Ground: 53-1/2" (1360 mm)
• Overall Height: 88" (2235 mm), with canopy

Engine

• Single-cylinder, air-cooled, 4-stroke, OHV
• Displacement: 420 cc
• Max Output Power: 14 HP @ 3600 RPM
• Start Type: Electric start
• Fuel Tank Capacity: 8 L
• Oil Capacity: 1.2 US qt (1.1 L)
• Engine Oil Type: 10W-30

• Durable 14 HP Gas Engine: Specially designed for excavation tasks, delivering powerful output, fuel efficiency, and long-lasting durability.
• Advanced Hydraulics: Smooth, responsive controls ensure precise digging and effortless operation.
• 360° Rotation: Work seamlessly from any angle without repositioning, improving maneuverability in confined areas.
• Telescopic Undercarriage: With an adjustable chassis width from 28 3/8" to 35 1/2", this excavator fits easily into confined job sites, making it ideal for urban and residential projects.
• Rugged Durability: Constructed with high-quality materials to withstand tough environments and heavy-duty applications.
• Engineered Stability: Advanced construction delivers exceptional durability in the swing motor, ensuring smooth and stable rotation performance.
• Powerful Digging Force: Delivers efficient excavation with 2765 lb of digging force for a variety of materials.
• Convenient Maintenance: Strategically placed lubrication points allow quick and easy access for hassle-free upkeep and optimal machine performance.
• Hydraulic Dozer Blade: Equipped with lowering and locking functions to improve stability and leveling while enabling efficient backfilling and grading.
• Protective Windshield: Durable windshield protects the operator from debris, dust, and weather while maintaining clear visibility for safer, more comfortable operation.
• Built-In TOPS (Tip-Over Protection Structure) and Canopy: Provides enhanced operator safety, while the durable canopy offers shade, weather resistance, and improved visibility throughout the workday.

Specifically engineered attachments are available as options to ensure peak performance for intended applications.

• TMG-MVE06-QC: Quick Coupler
• TMG-MVE06-BR: 1 3/8" (35 mm) Hydraulic Breaker
• TMG-MVE06-RT: 26 3/4" (680 mm) Ripper Tooth
• TMG-MVE07-RK: 21" (530 mm) Root Rake
• TMG-MVE07-THH: Hydraulic Thumb
