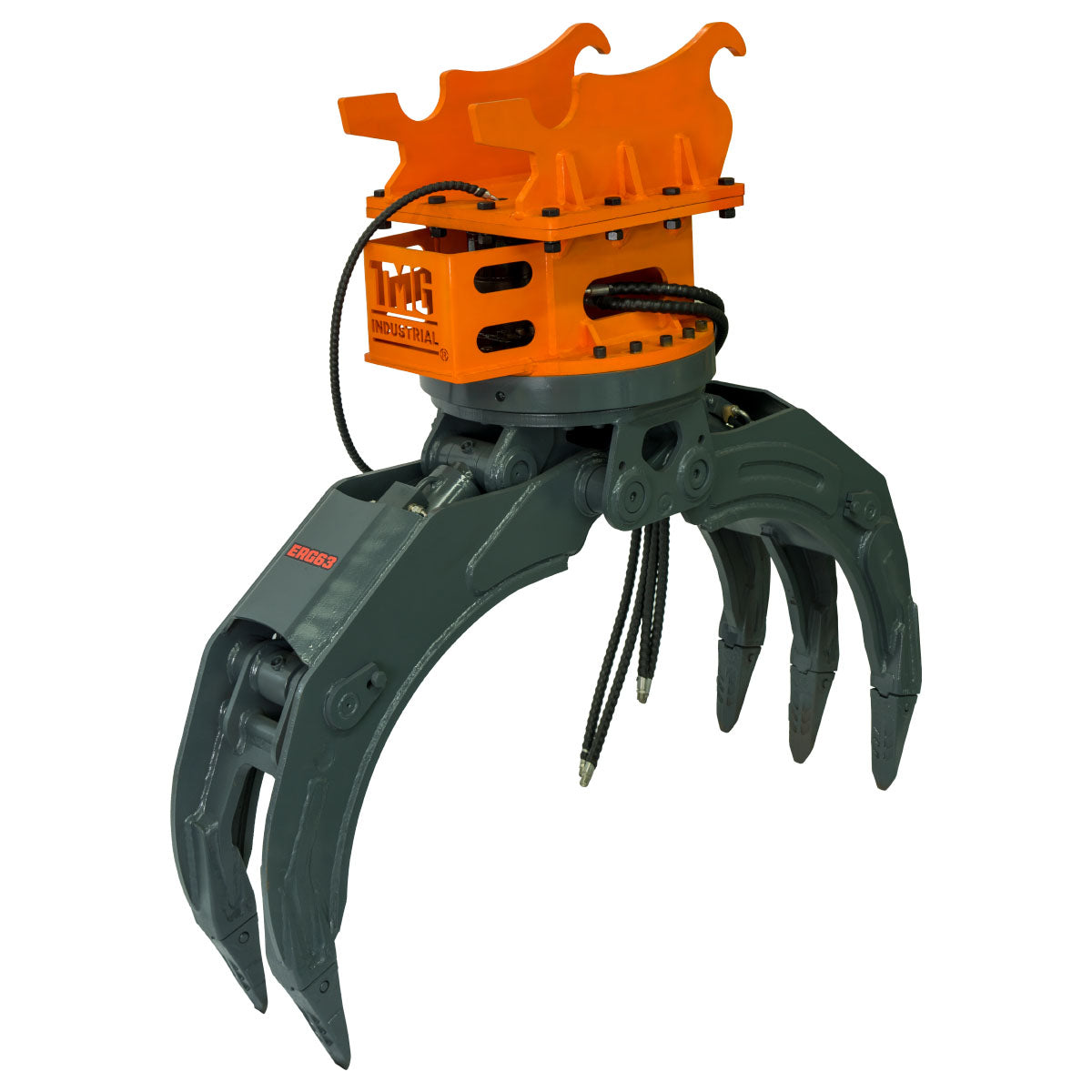

63" Hydraulic Rotating Excavator Grapple, 360 Degree Rotation, 10-18 Ton Excavators, Dual Moving Jaws, TMG-ERG63
- Richmond Warehouse Sold out
- Mississauga Warehouse Sold out
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store
The TMG-ERG63 Hydraulic Rotating Excavator Grapple is a heavy-duty attachment designed for controlled material handling, cleanup and sorting work. Built for 10-18 ton excavators, it gives operators a practical way to grab and position larger or irregular material around active jobsites.
The 63" jaw opening provides strong grabbing capacity, while the dual moving jaws close evenly around material for a more secure hold than one-arm static grapple designs. Full 360 degree rotation in both directions gives operators flexible positioning when loading, sorting and placing material.
Oversized slewing bearings generate strong rotational torque for smoother grapple movement under regular use. With a dual-row 3-tooth front and 2-tooth rear configuration and a rugged construction, the TMG-ERG63 is built for excavator operators who need reliable gripping performance in demanding work conditions.
- Excavator weight: 10-18 ton
- Operating weight: 1895 lb (861 kg)
- Opening length: 63" (1600 mm)
- Rotation: 360 degrees in both directions
- Teeth configuration: 3-tooth front / 2-tooth rear, dual-row
- Working pressure: 1740-2610 PSI (12-18 MPa)
- Working flow: 16-32 gal/min (60-120 L/min)
- 10-18 Ton Excavator: Designed for mid-size excavators requiring stronger grapple control for demanding jobsite cleanup and material movement.
- 63" Grapple Opening: Wide jaw opening gives operators greater capacity when grabbing larger material with steady, balanced clamping force.
- Dual Jaw Closing: Dual moving jaws close evenly around material, providing more secure pickup than a one-arm static grapple design.
- 360 Degree Rotation: Full rotation in both directions gives operators precise grapple positioning when loading, sorting and placing material.
- Oversized Slewing Bearings: Oversized slewing bearings generate strong rotational torque for smoother turning under regular excavation and cleanup work.
