585cc 4WD UTV with EPS TMG-ATU765E

Ranch & farm

585cc 4WDUTV with EPS585cc 4WD UTV with EPS

The TMG-ATU765 is an off-road UTV (Utility Terrain Vehicle) that can be used to explore, work, and play.

Color

Starting at$17,499CAD

Available to order through the Oakville store

Request a quote Specifications

How it's built

Feature by feature

Scroll through it. The picture follows the text.

01 / 05

High performance Canadian CVTech transmission

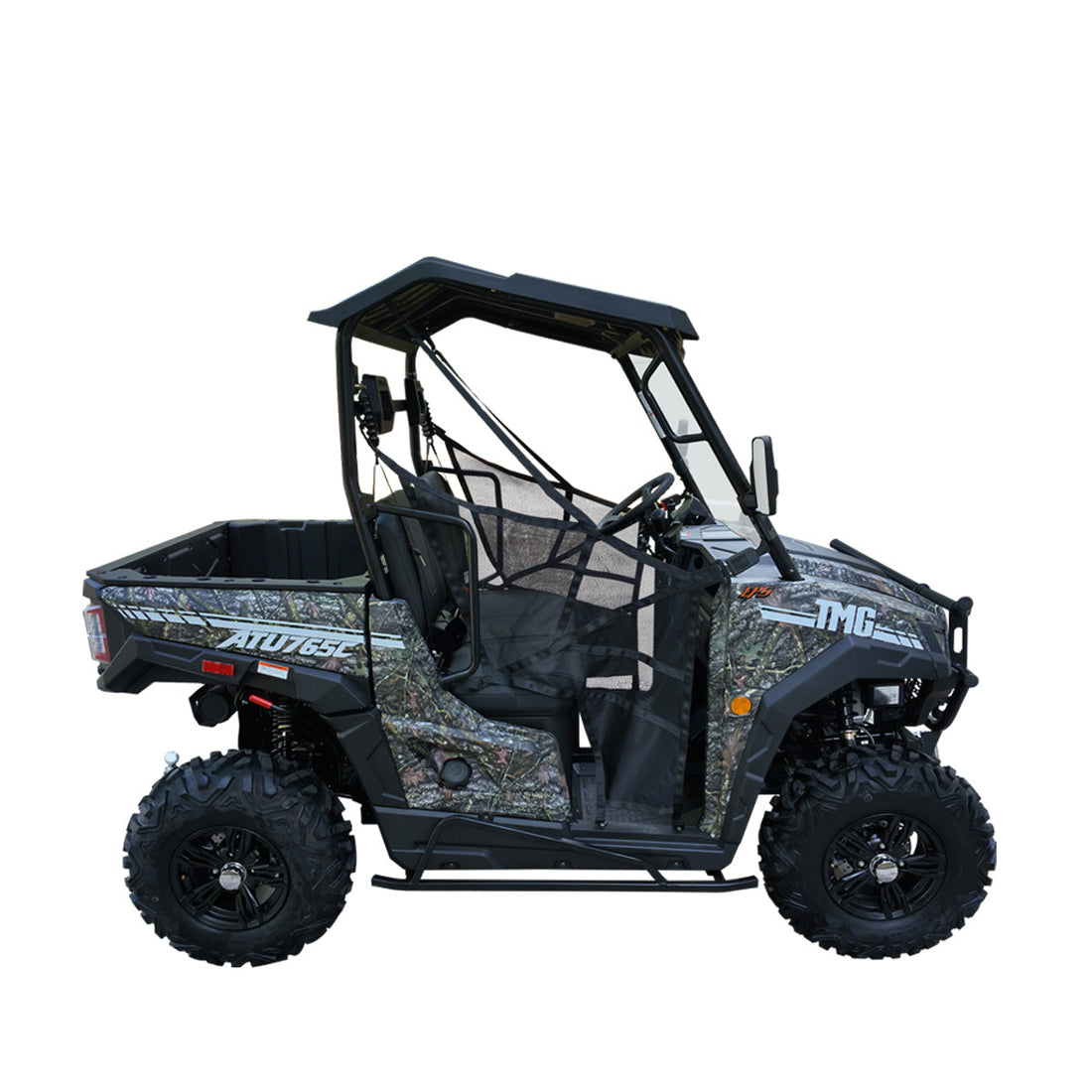

Powerful big bore engine

Torquey power delivery from the 585cc EFI gasoline engine.

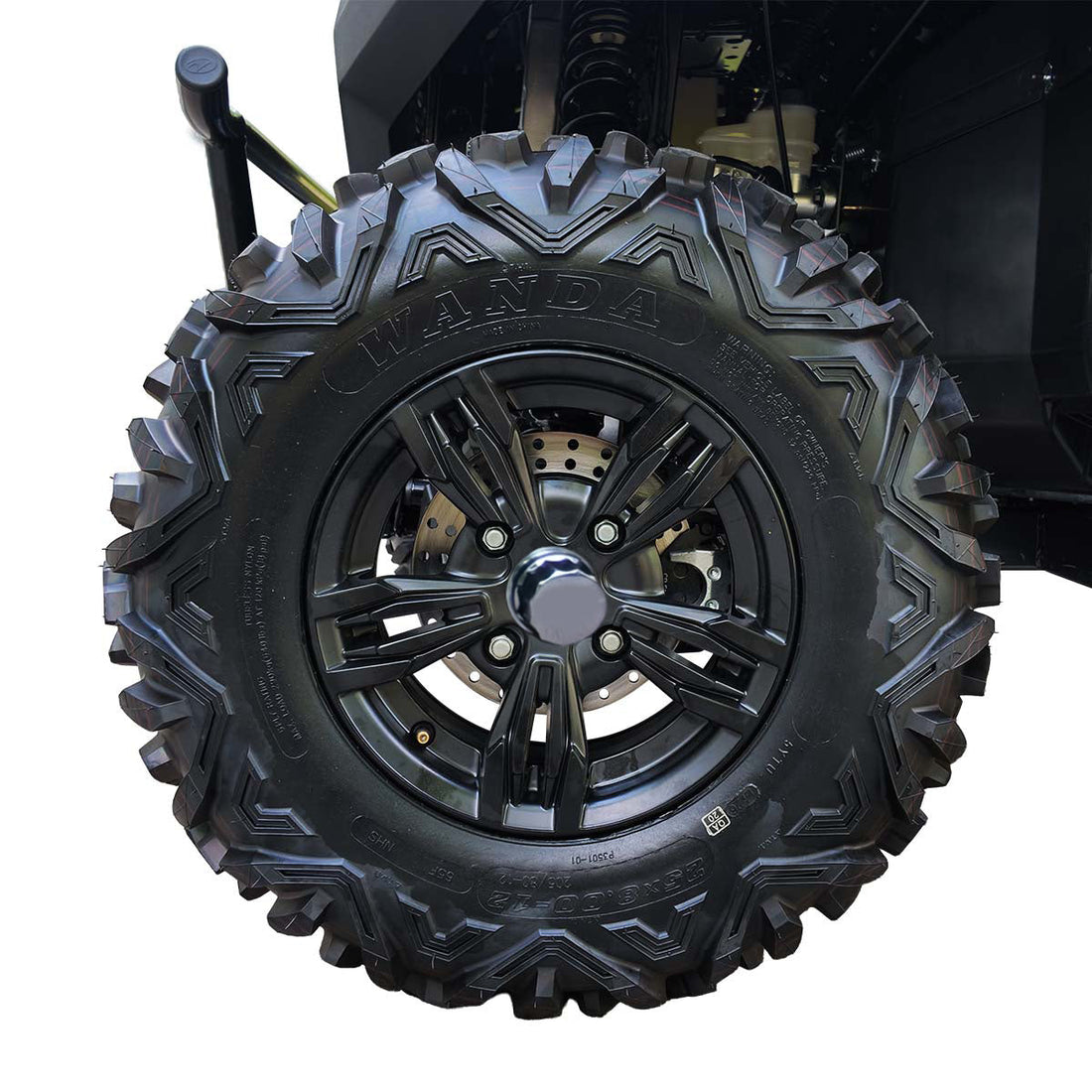

On - demand 4WD drivetrain

Selectable 4WD with front and rear locking differentials help you tackle any terrain.

High performance Canadian CVTech transmission

Power is sent through the Canadian manufactured CVTech-IBC CVT.

Electric power steering

Electric power steering helps you drive all day long without fatigue.

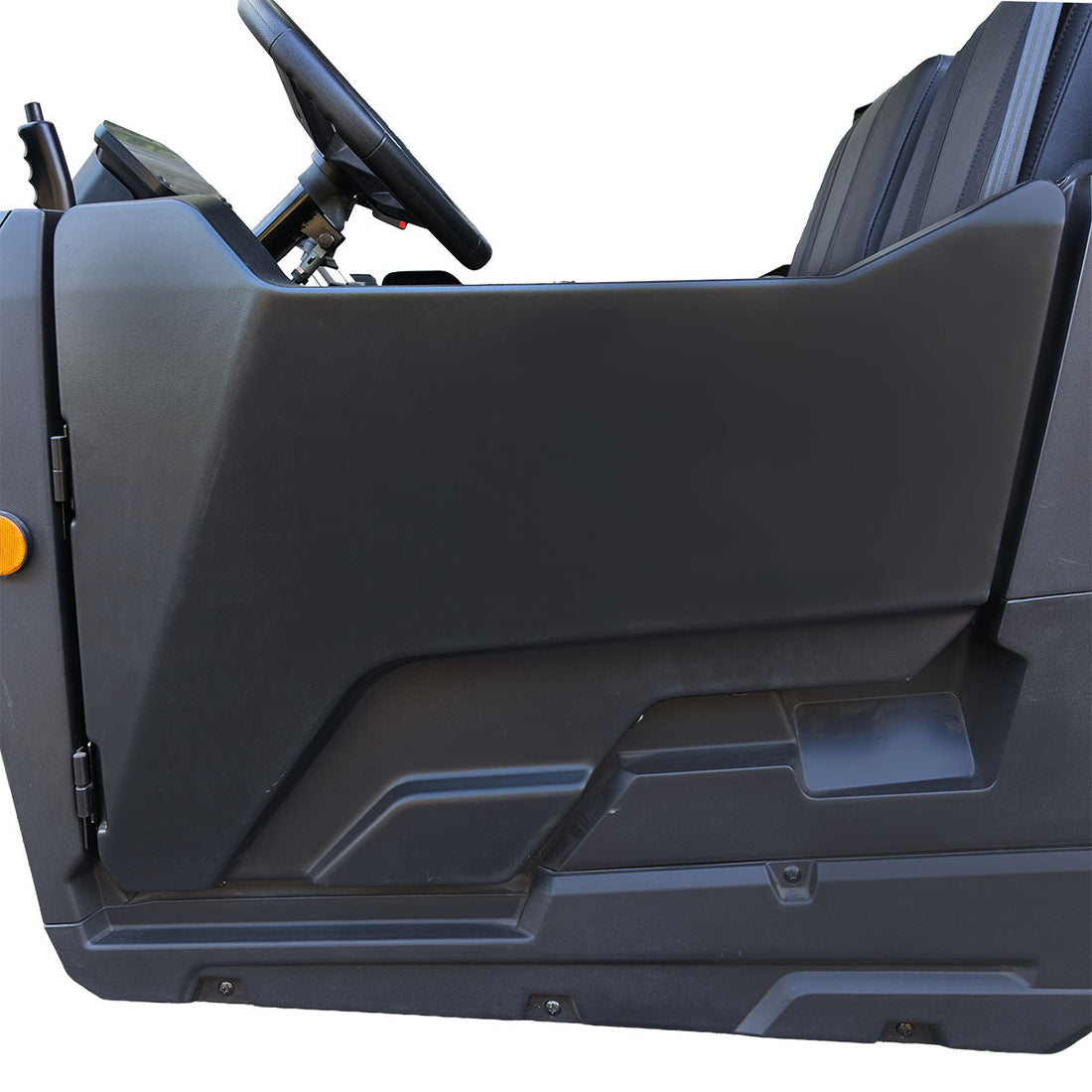

Comfortable cab

Stay comfortable with bolstered seats and an adjustable steering column.

Gallery

Every angle of it

Studio views straight from the TMG Industrial catalogue.

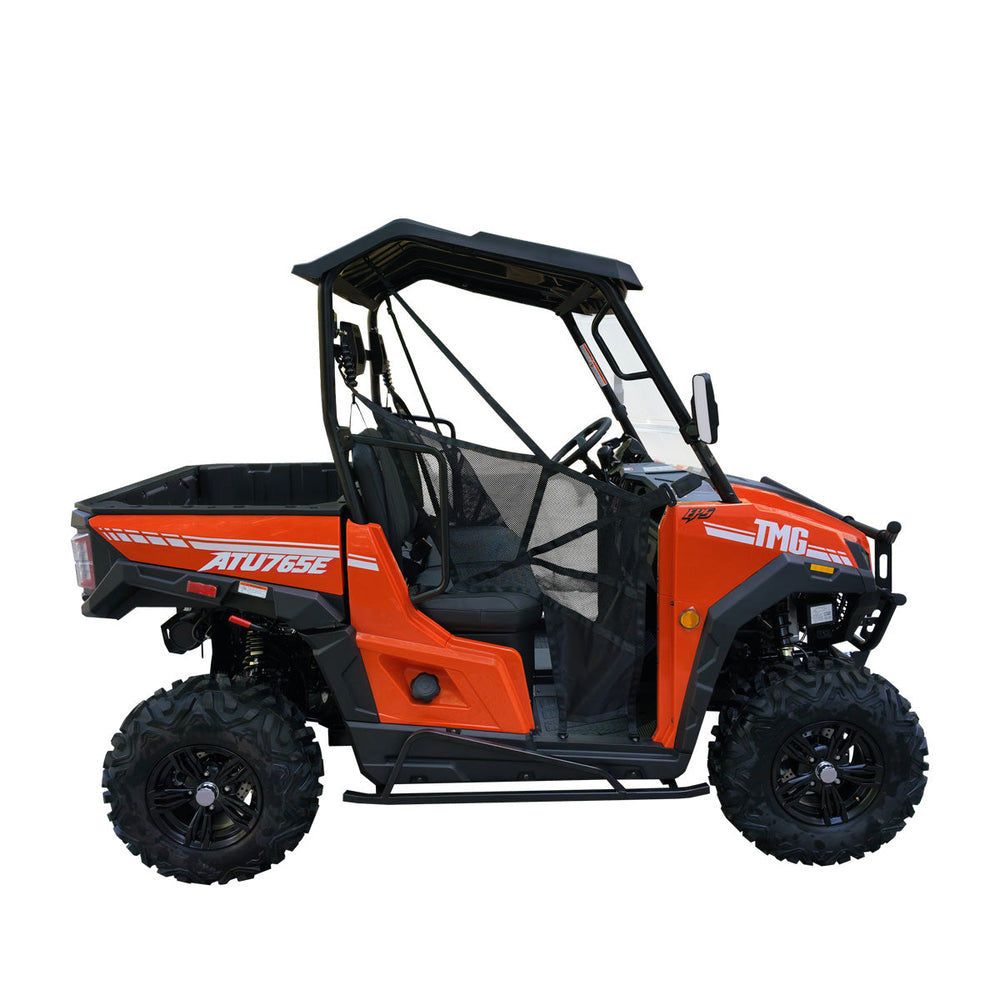

585cc UTV side-by-side with on-demand 4WD, EPS, CVTech transmission and 2 seats with headrests — View 01 / 02

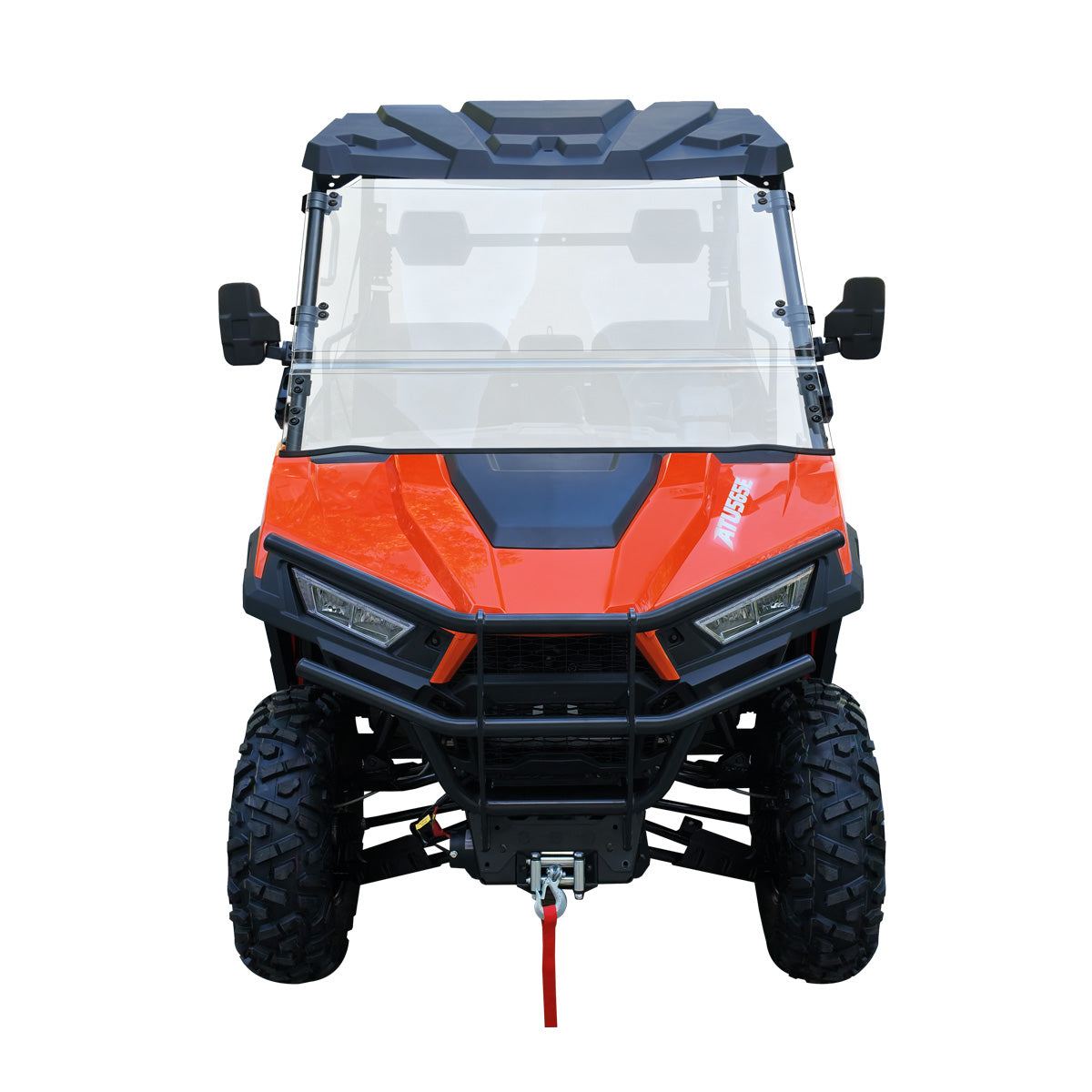

585cc UTV / Side-by-Side with On-Demand 4WD, EPS, CVTech Transmission, 2 Seats with Headrests, Locking Differentials, and Trailer Hitch TMG-ATU765 — View 02 / 02

Scroll to pan

Technical data

Every number on one screen

Manufacturer specifications for TMG-ATU765E.

Powerful Big Bore Engine: Torquey power delivery from the 585cc EFI gasoline engine.
On - Demand 4WD Drivetrain: Selectable 4WD with front and rear locking differentials help you tackle any terrain.
High Performance Canadian CVTech Transmission: Power is sent through the Canadian manufactured CVTech-IBC CVT.
Electric Power Steering: Electric power steering helps you drive all day long without fatigue.
Comfortable Cab: Stay comfortable with bolstered seats and an adjustable steering column.
Protection From the Elements: Standard Roof and Windshield help keep you protected from the mud.
Tilting Cargo Bed: The tilting cargo bed helps you move tools and dump material with ease.

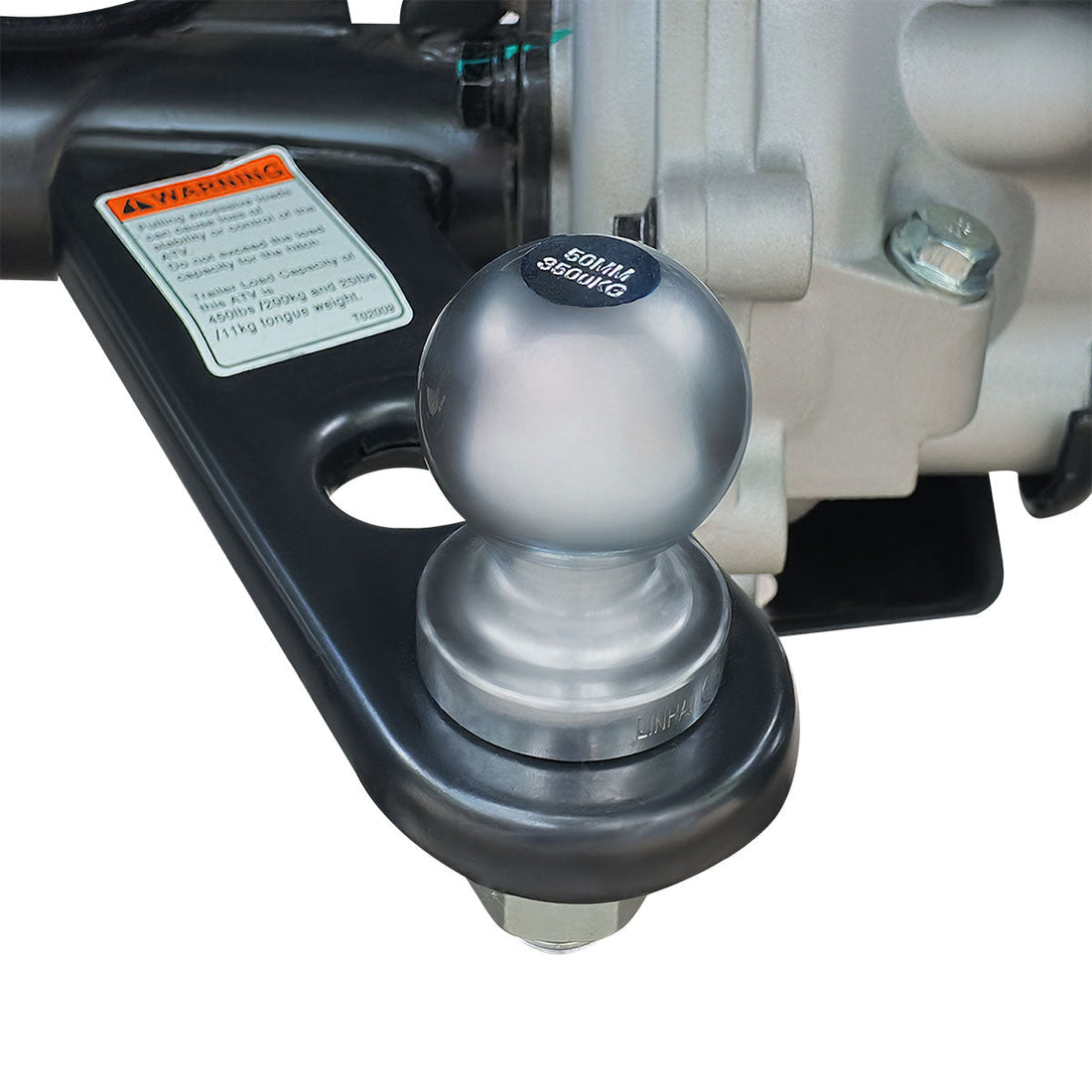

Standard Trailer Hitch: Standard 2" trailer hitch lets you tow trailers and equipment to get work done.

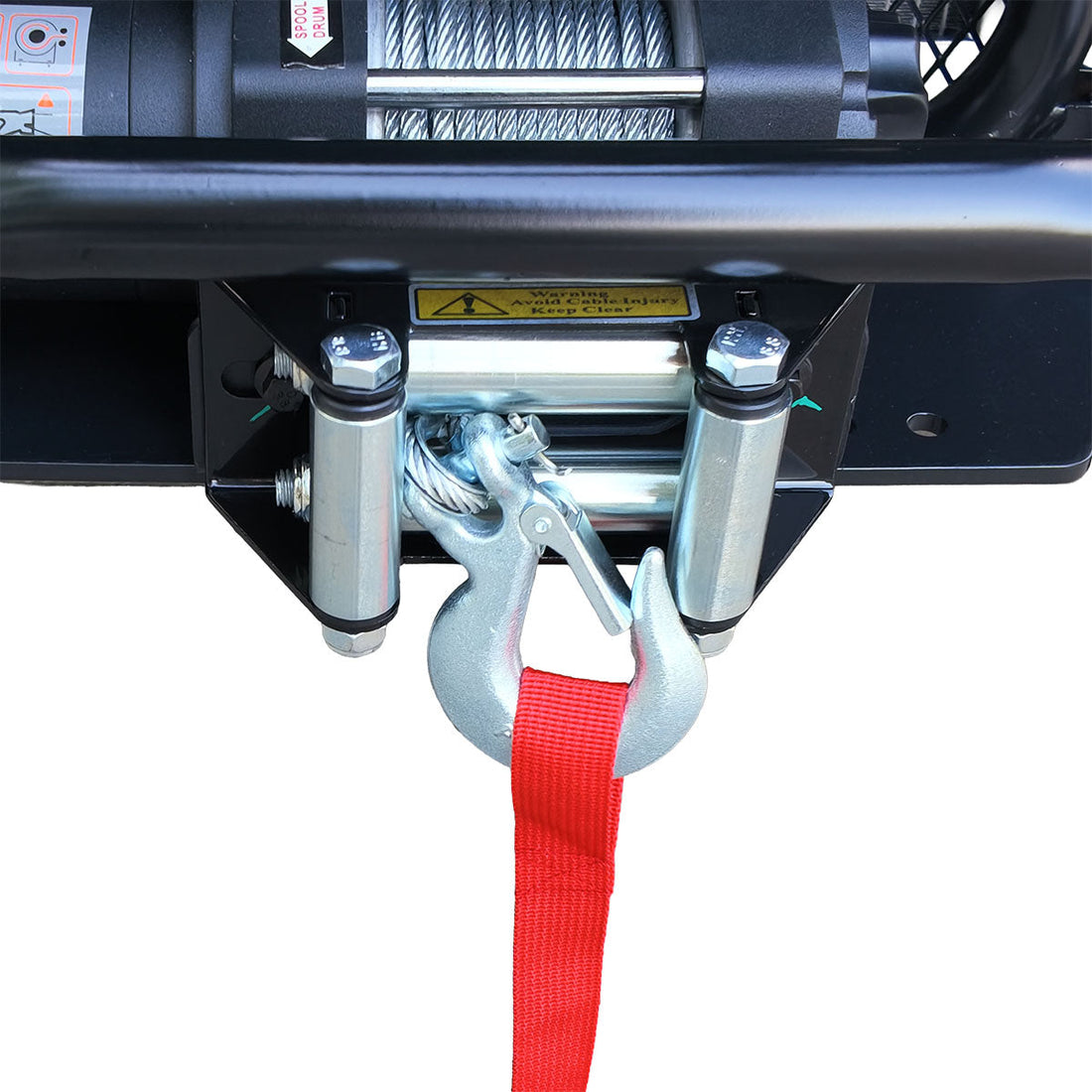

Heavy Duty 3000 lb Winch: The heavy duty 3000 lb winch helps pull anything you need.
LED Matrix Headlights: The bright LED Matrix headlights help you see the darkest trails.
All Terrain Tires: 27" All Terrain tires on lightweight alloy wheels keep you confident in all conditions.

Ground clearance: 11.2 in / 285 mm
Wheels: Alloy
Tires: F: AT27x9–14, R: AT27x11–14
Winch capacity: 3000 lb / 1460 kg
Towing capacity: 441 lb / 200 kg
Dry weight: 1257 lb / 570 kg
Length x width x height: 110 x 58 x 76 in / 279 x 147 x 192 cm
Fuel tank capacity: 26 L / 6.9 gal

Max speed: 88 km/h / 55 mph
Transmission: CVTech CVT, with L-H-N-R-P
Electric power steering: Yes
Engine model: LH191MS-C
Engine description: Single Cylinder, 4 Stroke, Water Cooled
Horsepower: 44 HP
Engine displacement: 585 cc
Engine certification: EPA
Engine start type: Electric Start
Fuel delivery: Delphi EFI

4WD system: On Demand with Front & Rear Locking Differential
Seating: 2 Seats with Headrests
Trailer hitch with 2" ball mount: Yes
Headlights: LED
Windshield: Yes
Safety net: Yes
ABS half doors: Available for Purchase
Adjustable steering column: Yes
Roof: Yes

The TMG-ATU765 is an off-road UTV (Utility Terrain Vehicle) that can be used to explore, work, and play. The ATU765 is powered by a big bore 585cc gasoline engine. Power is sent through a high performance Canadian manufactured CVTech-IBC CVT transmission with Reverse, Park, High, and Low range gearing that enables capable riding all day long. The On-Demand 4WD system with front and rear locking differentials can be controlled by a dash mounted switch and allows you to explore trails you've never seen before.

The ATU765 comes with comfortable bolstered seating, headrests, and enough room to take a passenger along for the adventure. The standard 2" trailer hitch and tow ball along with the practical tilting cargo bed allow you to move tools, equipment, and material around with ease. The ATU765 also features oversized rugged all terrain tires on lightweight alloy wheels, a heavy duty 3000 lb winch, side mirrors, and a protective roof and windshield. Optional TMG-ATU765565-HD ABS Half Doors can be purchased to further seal off the cabin. The ATU765 is ready for trails, jobsites, or just ripping up dirt.

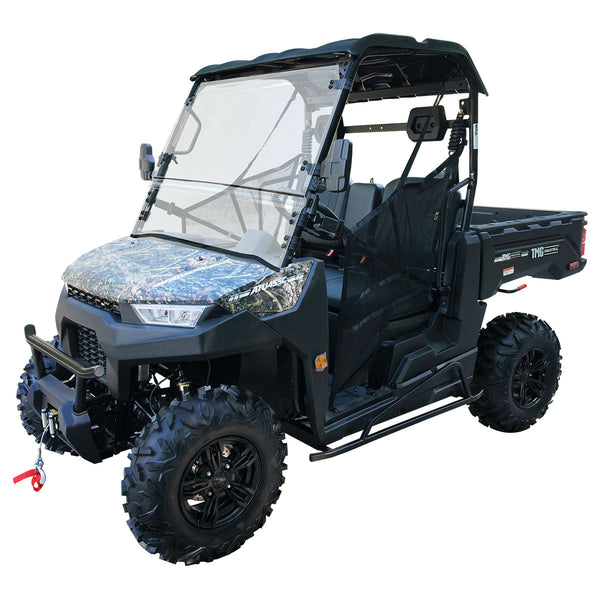

Explore the rest of the TMG UTV lineup like the TMG-ATU455 or TMG-ATU565 .

* The TMG- ATU765 is for Off Road Use Only *
