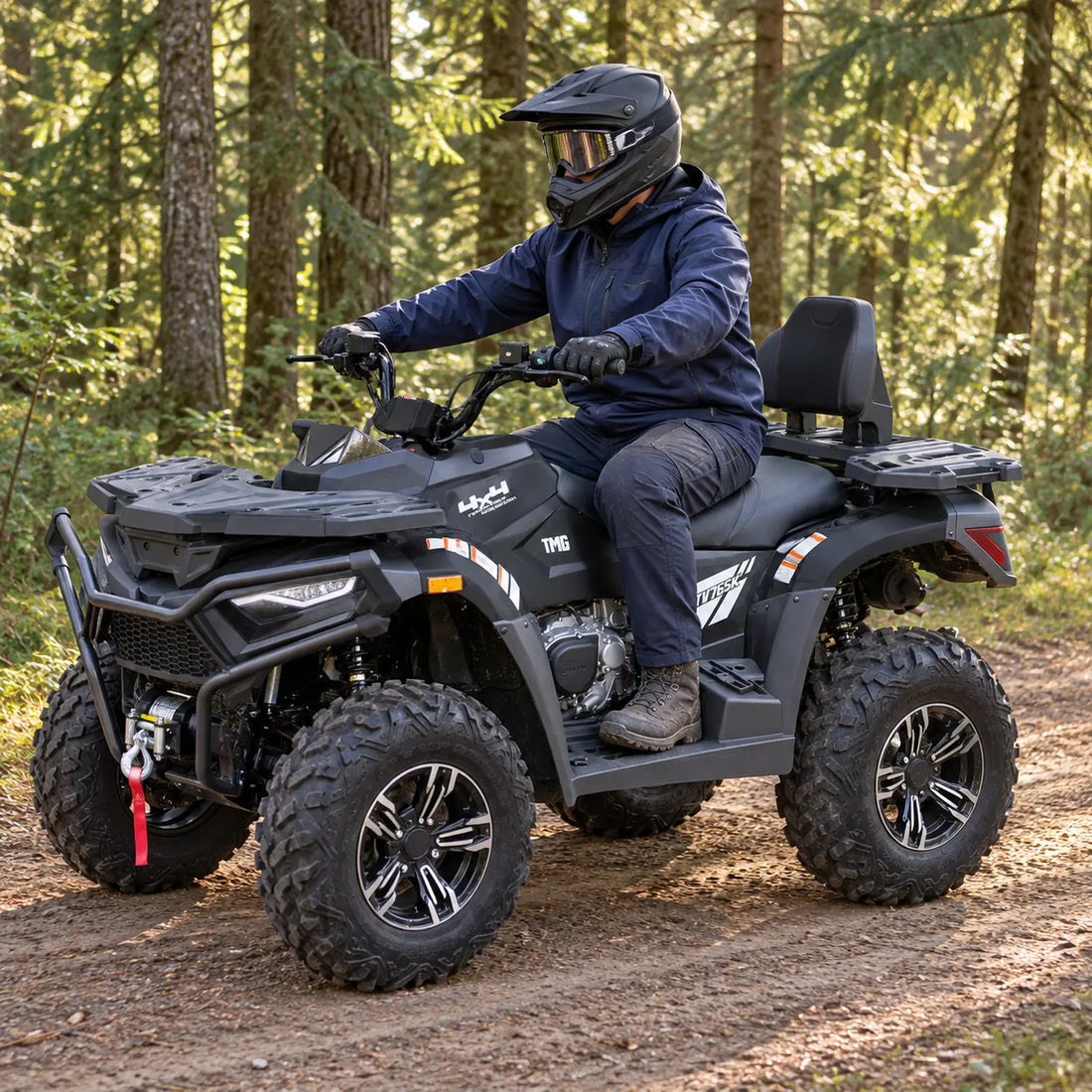

Powerful big bore engine
Torquey power delivery from the 585cc EFI gasoline engine.
Ranch & farm

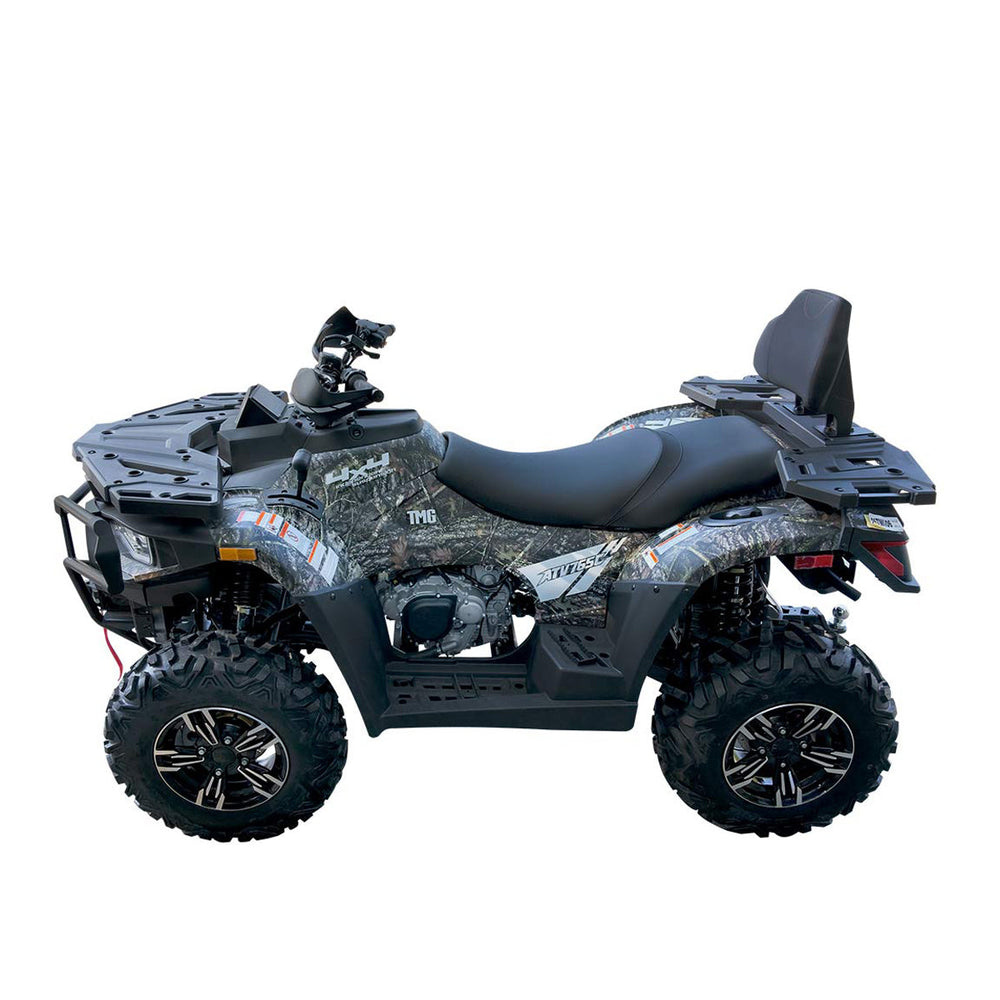

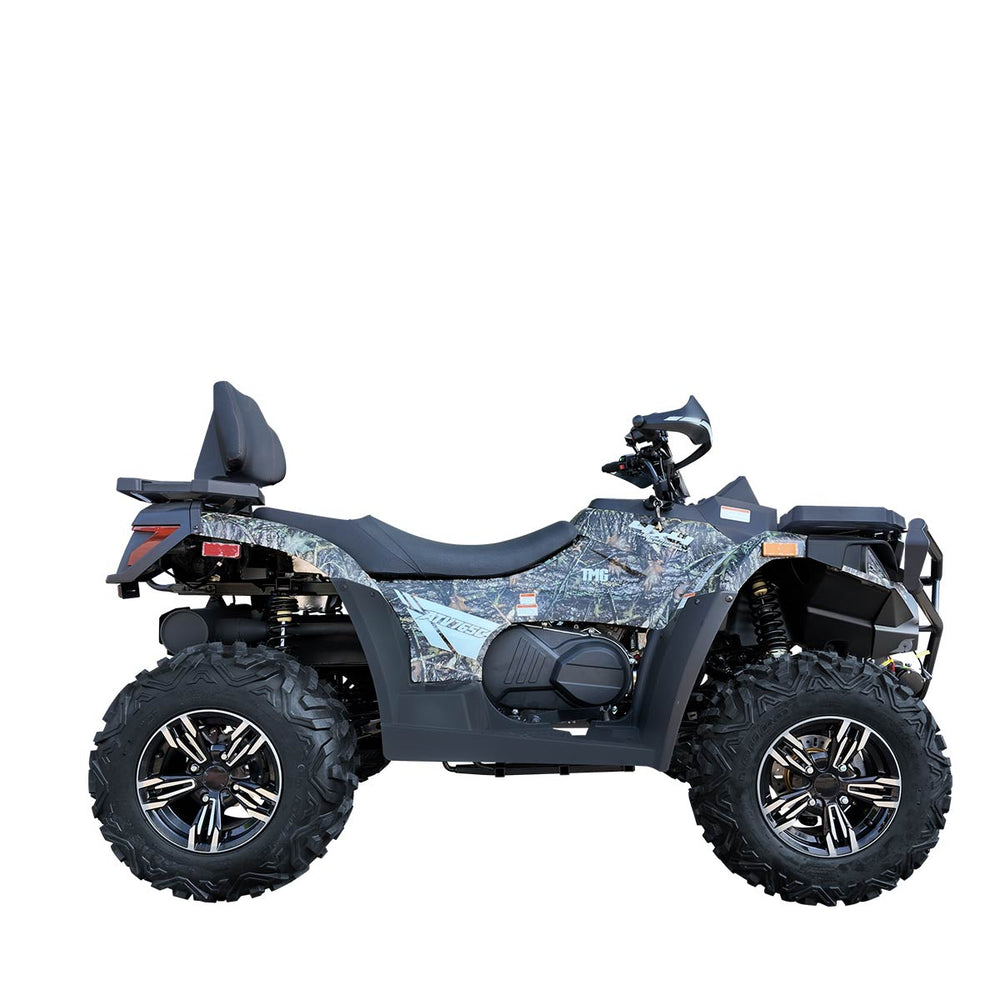

585cc 2-UpATV with EPS585cc 2-Up ATV with EPS
The TMG-ATV765 is an off-road ATV (All-Terrain Vehicle) that can be used to explore, work, and play.
Starting at$11,999CAD
Available to order through the Oakville store
How it's built
Feature by feature
Scroll through it. The picture follows the text.
01 / 05
On - demand 4WD drivetrain
Selectable 4WD with front and rear locking differentials help you tackle any terrain.
Electric power steering
Electric power steering helps you ride all day long without fatigue.
High contrast TFT dash board display
The TFT dash display ensures you can always read vital vehicle information.

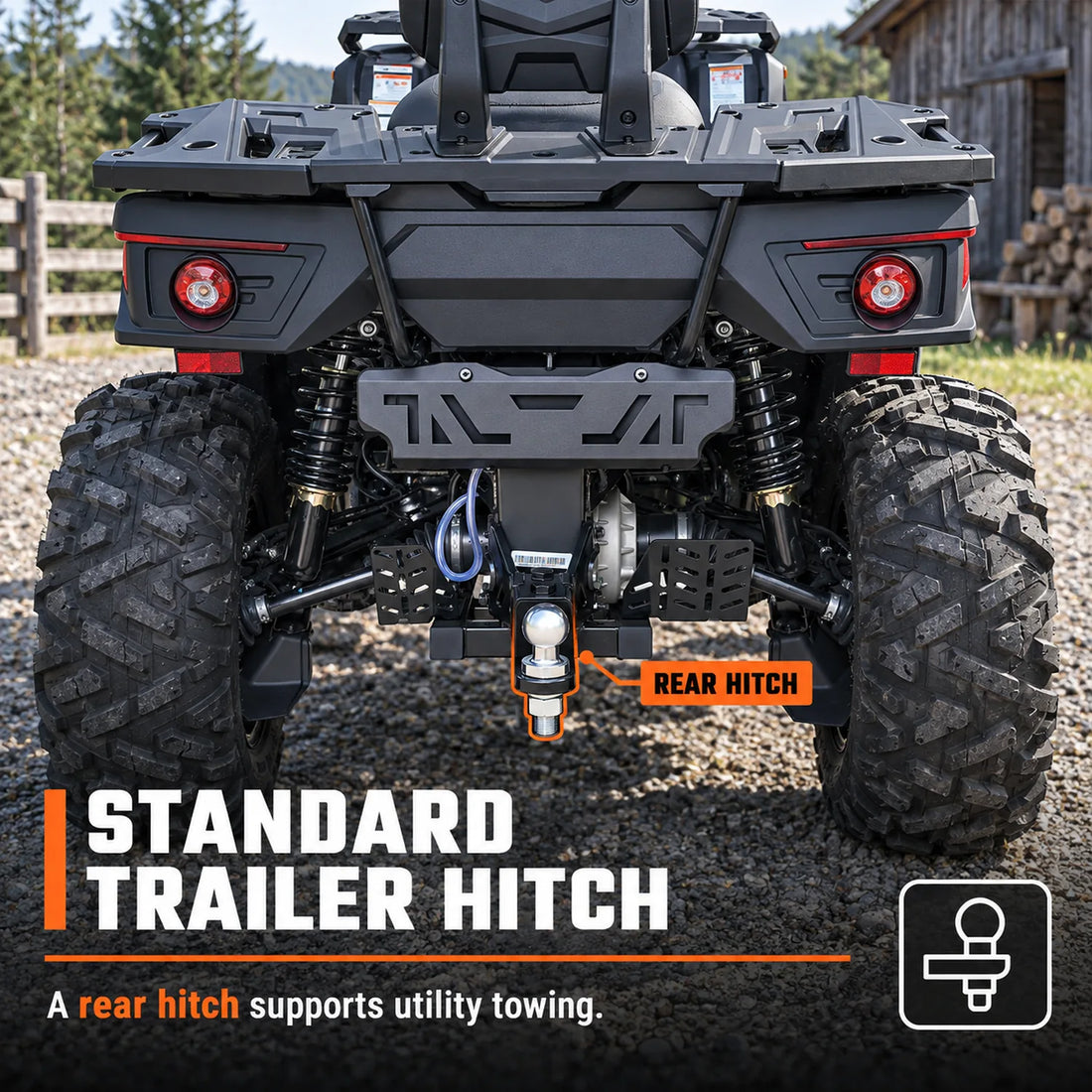

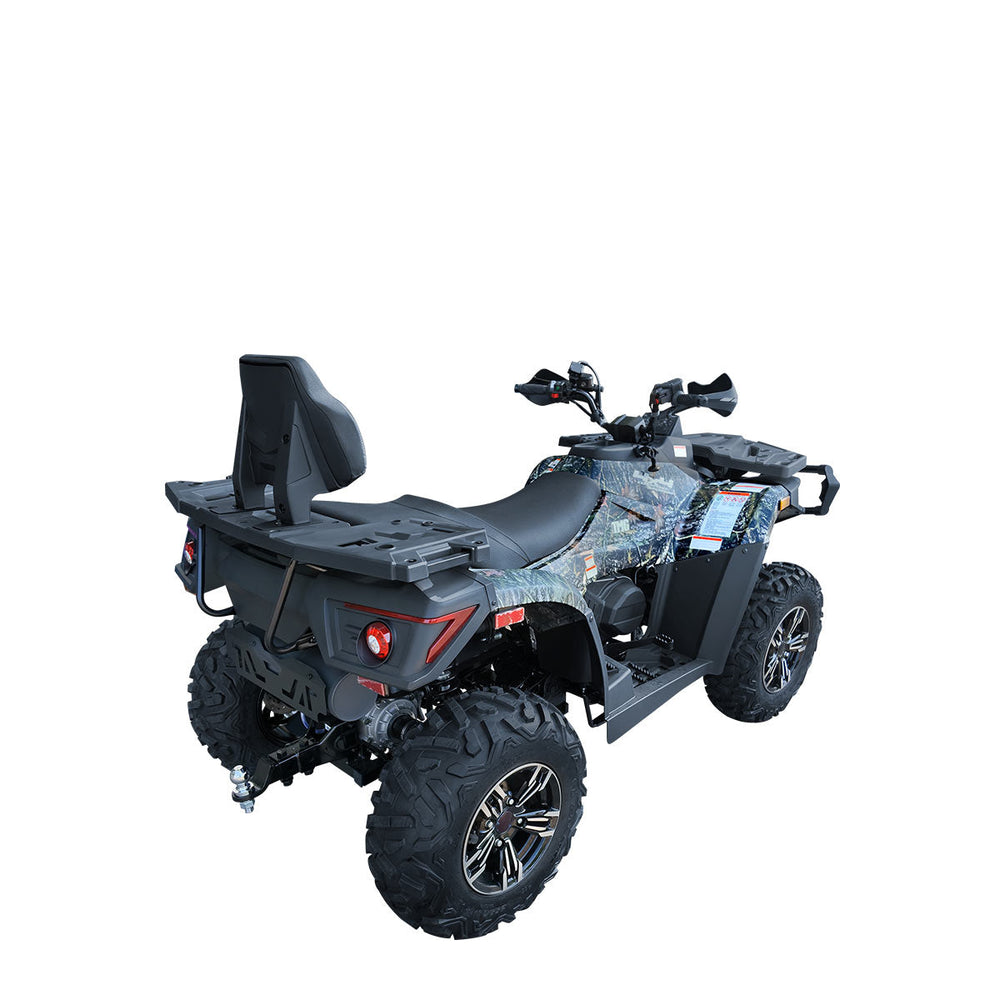

Standard trailer hitch
Standard 2" trailer hitch lets you tow trailers and equipment to get work done.

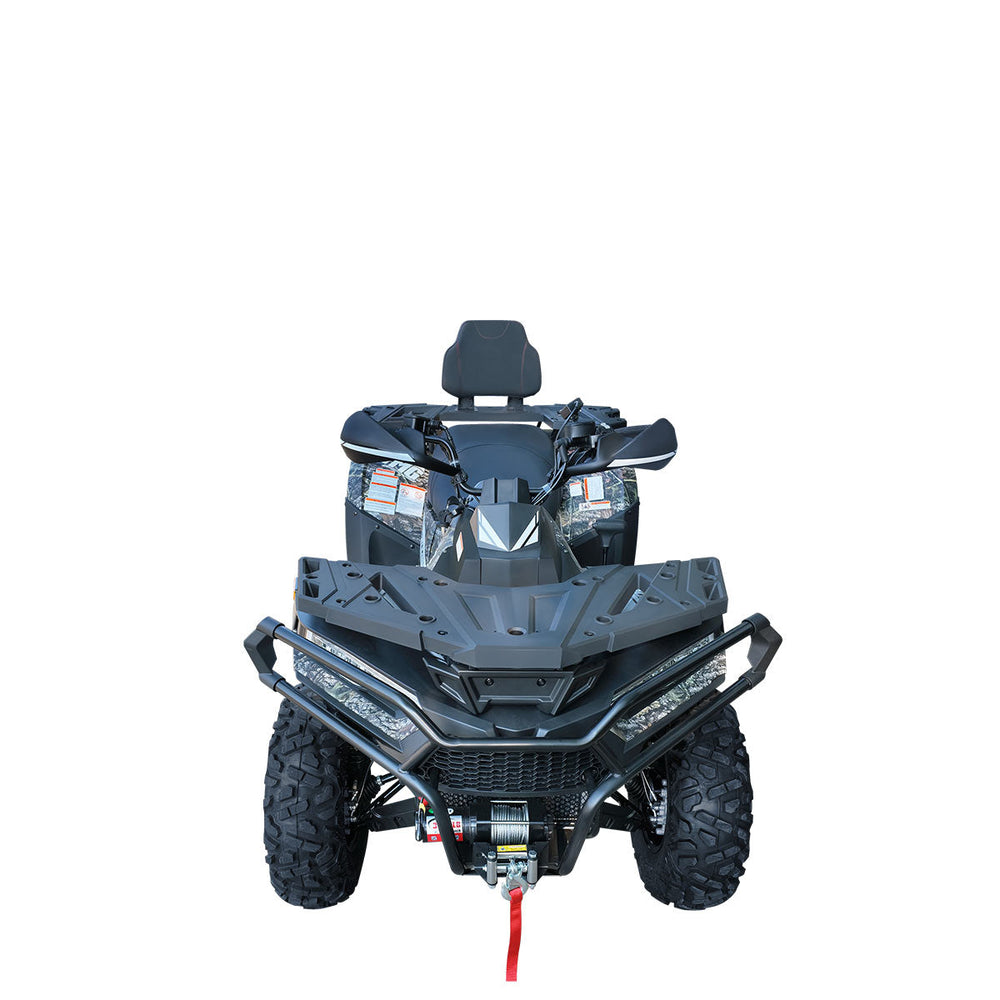

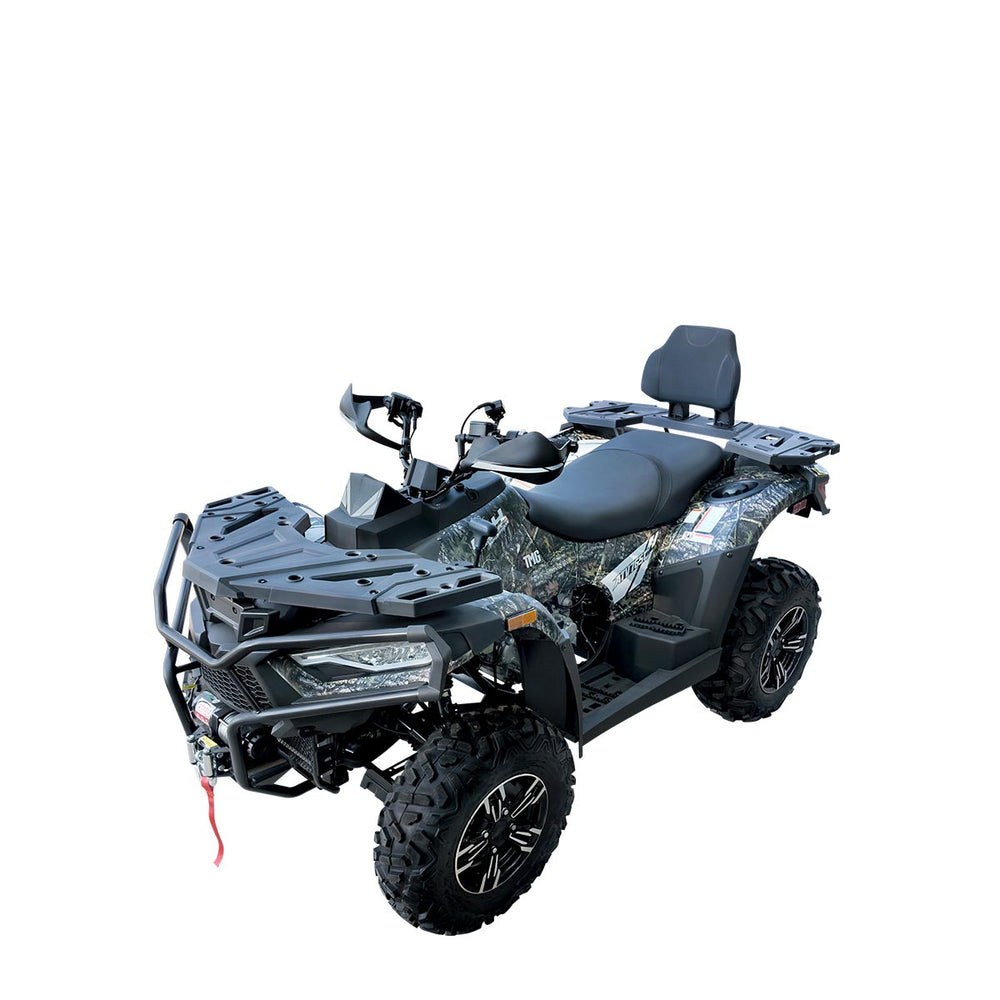

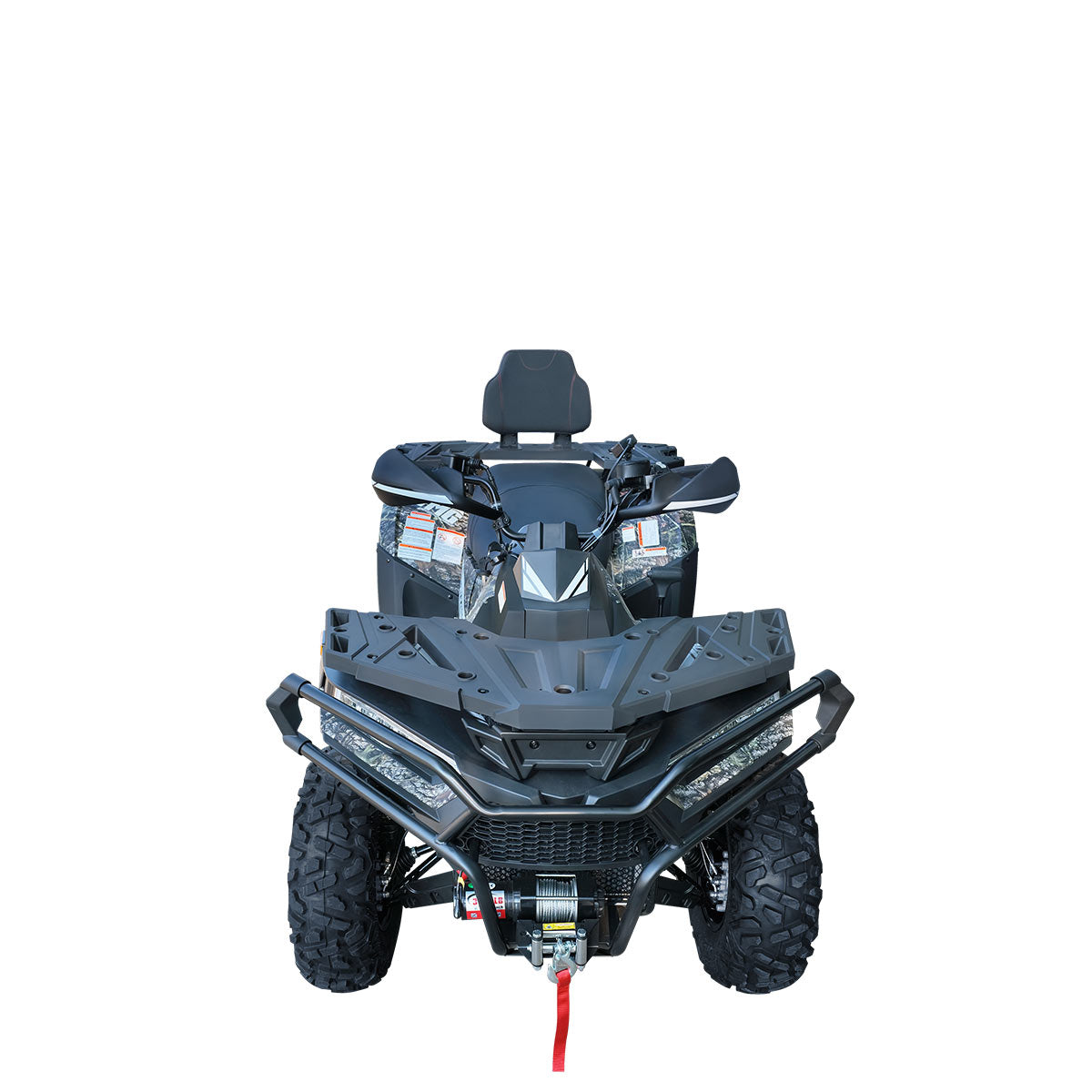

Gallery
Every angle of it
Studio views straight from the TMG Industrial catalogue.
Scroll to pan
Technical data
Every number on one screen
Manufacturer specifications for TMG-ATV765C.
- Powerful Big Bore Engine: Torquey power delivery from the 585cc EFI gasoline engine.
- On - Demand 4WD Drivetrain: Selectable 4WD with front and rear locking differentials help you tackle any terrain.

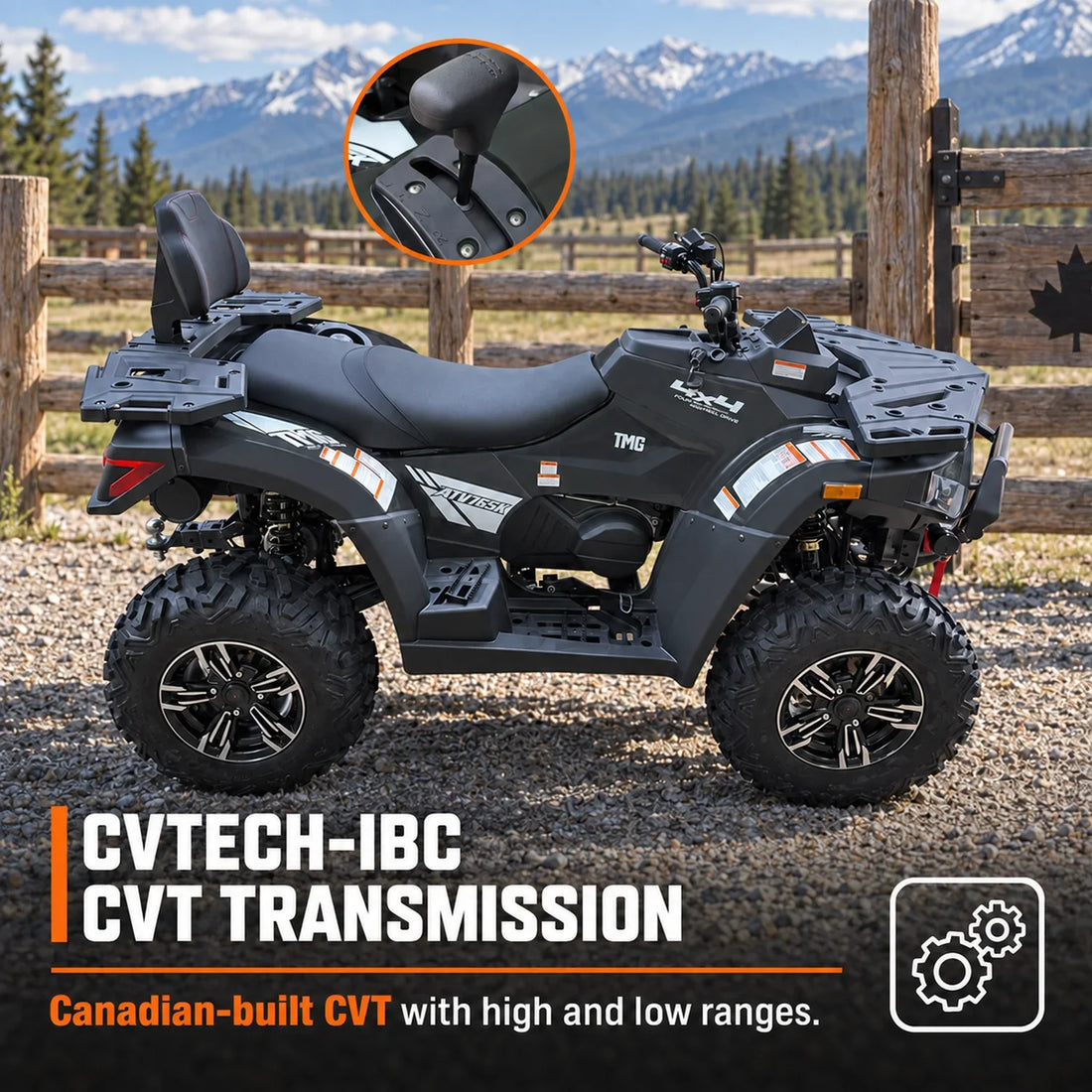

- High Performance Canadian CVTech Transmission Power is sent through the Canadian manufactured CVTech-IBC CVT.
- Electric Power Steering: Electric power steering helps you ride all day long without fatigue.
- High Contrast TFT Dash board Display: The TFT dash display ensures you can always read vital vehicle information.
- Standard Trailer Hitch: Standard 2" trailer hitch lets you tow trailers and equipment to get work done.

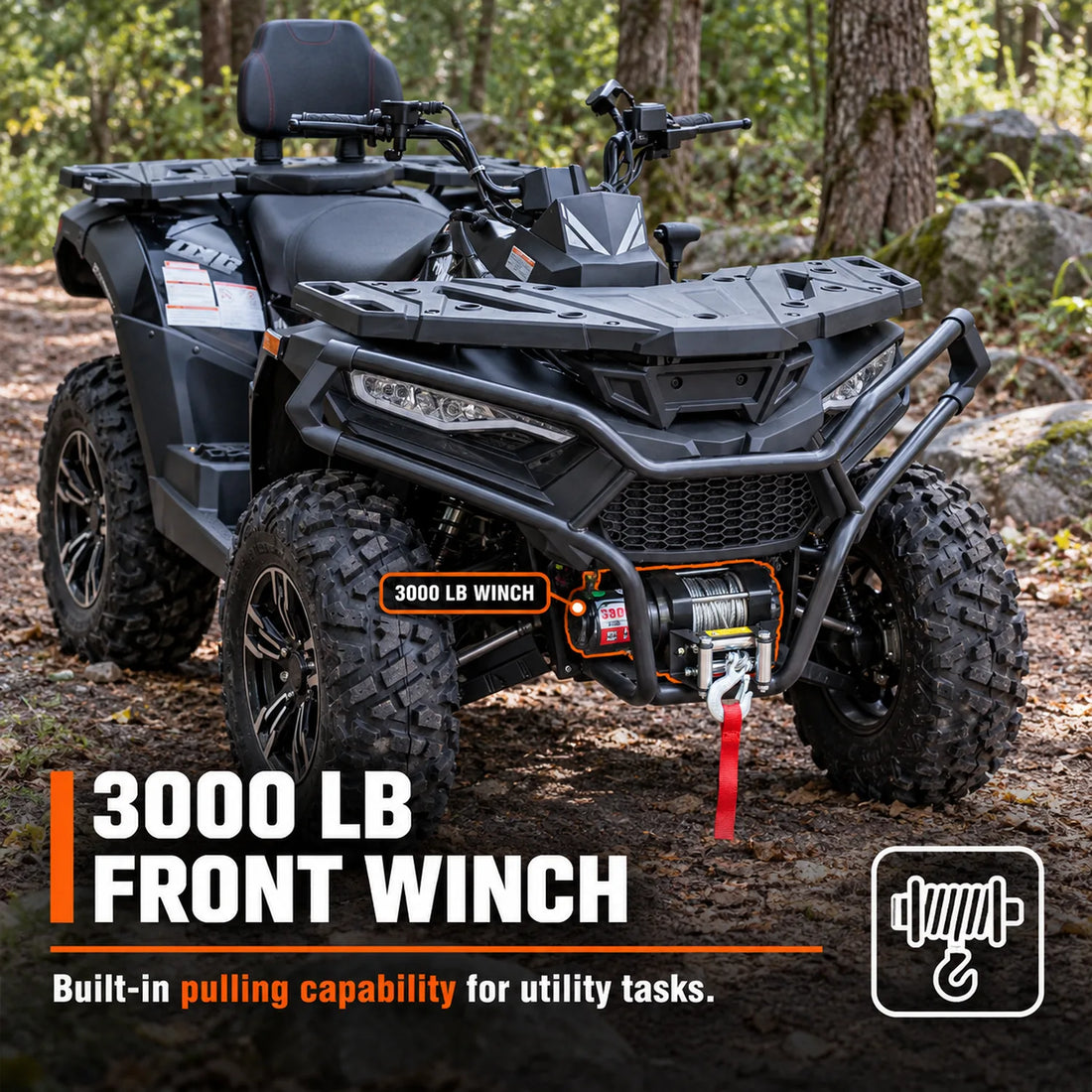

- Heavy Duty 3000 lb Winch: The heavy duty 3000 lb winch helps pull anything you need.

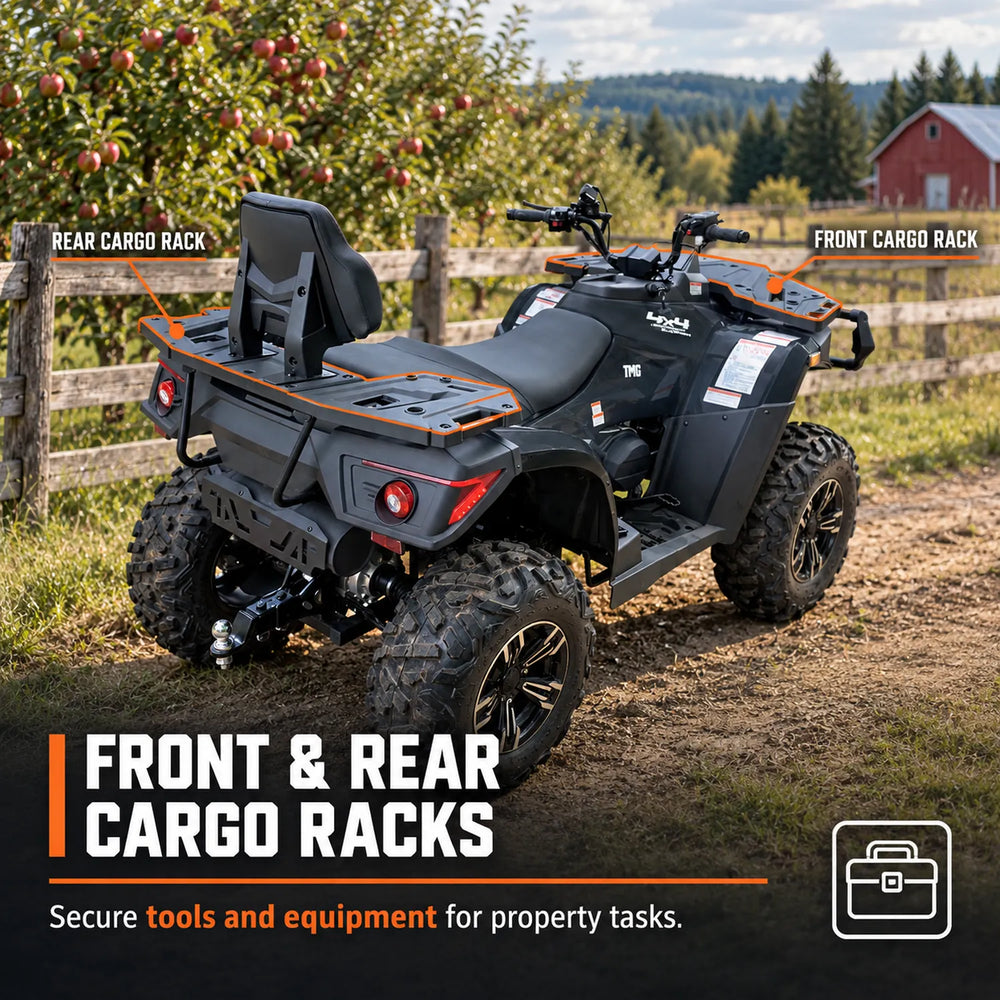

- Front and Rear Cargo Racks: Front and rear cargo racks allow you to tie down and transport tools and equipment.

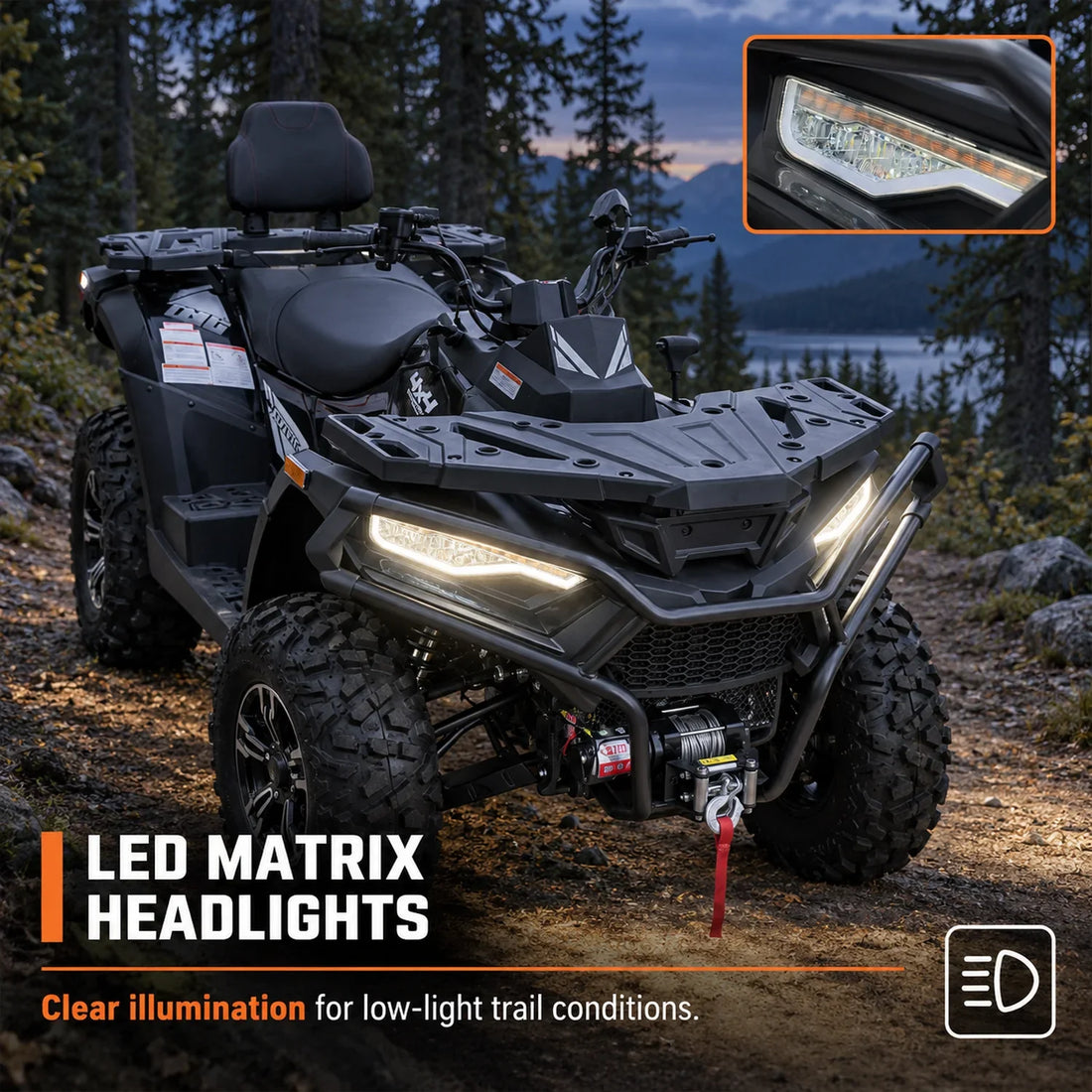

- LED Matrix Headlights: The bright LED Matrix headlights help you see the darkest trails.

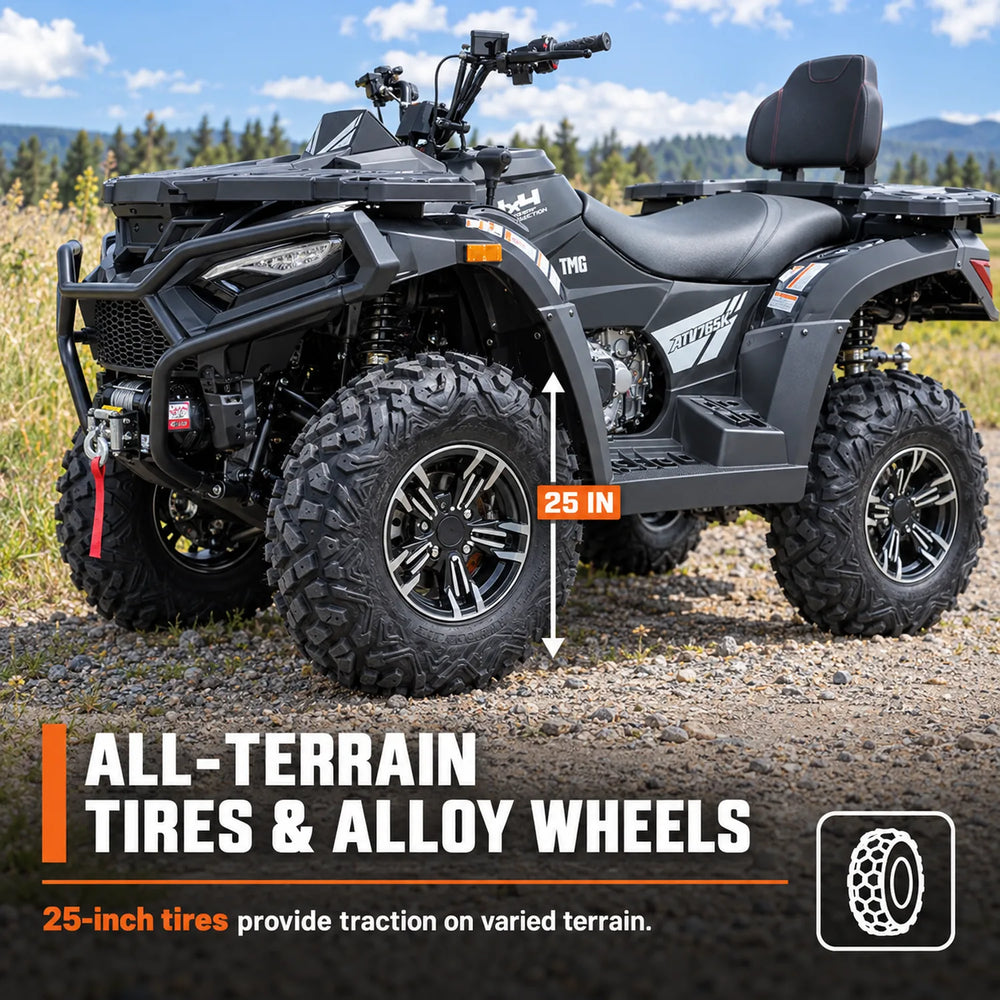

- All Terrain Tires 25" All Terrain tires on lightweight alloy wheels keep you confident in all conditions.
- Hand Guards Standard handguards keep you protected from branches and bushes.
- Ground clearance
- 10.6 in / 270 mm
- Wheels
- Alloy
- Tires
- F: AT25x8–12, R: AT25x10–12
- Winch capacity
- 3000 lb / 1460 kg
- Towing capacity
- 459 lb / 208 kg
- Dry weight
- 871 lb / 395 kg
- Length x width x height
- 94 x 51 x 52 in / 240 x 131 x 133 cm
- Fuel tank capacity
- 20 L / 5.3 gal
- Max speed
- 95 km/h / 59 mph
- Transmission
- CVTech-IBC CVT, with L-H-N-R-P
- Electric power steering
- Yes
- Engine model
- LH191MS
- Engine description
- Single Cylinder, 4 Stroke, Water Cooled
- Horsepower
- 40 HP
- Engine displacement
- 585 cc
- Engine certification
- EPA
- Engine start type
- Electric Start
- Fuel delivery
- Delphi EFI
- 4WD system
- On Demand with Front & Rear Locking Differential
- Seating
- 2-Up Seat with Backrest
- Trailer hitch with 2" ball mount
- Yes
- Headlights
- LED
- Front & rear cargo racks
- Yes
The TMG-ATV765 is an off-road ATV (All-Terrain Vehicle) that can be used to explore, work, and play. The ATV765 is powered by a big bore 585cc gasoline engine. Power is sent through a high performance Canadian manufactured CVTech-IBC CVT transmission with Reverse, Park, High, and Low range gearing that enables capable riding all day long. The On-Demand 4WD system with front and rear locking differentials can be controlled with a single finger allowing you to explore trails you've never seen before.
The ATV765 comes with an additional seat and comfy backrest letting you take a passenger along for the adventure. The standard 2" trailer hitch and tow ball along with practical front and rear cargo racks allow you to move tools, equipment, and material around with ease. The ATV765 also features rugged all terrain tires on lightweight alloy wheels, a high contrast TFT dashboard display, and protective hand guards. The TMG-ATV765 is ready for trails, jobsites, or just ripping up dirt.
Explore the rest of the TMG ATV lineup like the TMG-ATV325 , TMG-ATV555 , or TMG-ATV575 .
* The TMG- ATV765 is for Off Road Use Only *
NVIS/eNVIS Policy Manual New Vehicle Information Statement (NVIS) Form
Compare
Against similar models
585cc 2-Up ATV with EPS
TMG-ATV765C
- Power
- 40 HP
- Weight
- 871 lb / 395 kg
- Engine
- LH191MS
- Price
- Starting at $11,999
352cc 4WD UTV
TMG-ATU455C
- Power
- 26 HP
- Weight
- 1114 lb / 505 kg
- Engine
- LH180MQ-3B
- Price
- Starting at $10,999

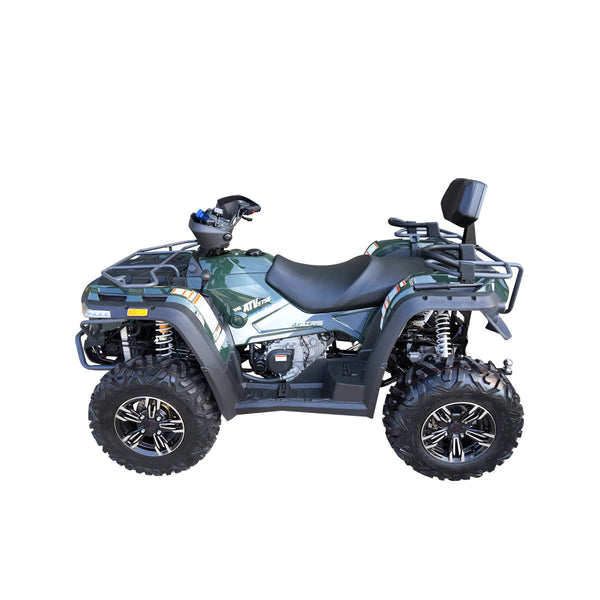

493cc 2-Up ATV with EPS
TMG-ATV575C
- Power
- 33 HP
- Weight
- 805 lb / 365 kg
- Engine
- LH188MR-A
- Price
- Starting at $9,499
493cc 4WD UTV with EPS
TMG-ATU565E
- Power
- 33 HP
- Weight
- 1158 lb / 525 kg
- Engine
- LH188MR-A
- Price
- Starting at $14,499
Availability
Ask a store
The Oakville store can quote this model and talk through the fit.
Ontario
Oakville, ON
103-3313 Superior Court, Oakville, ON L6L 0H8
289-307-5505Ask about this model
Tell us what you run and what the job is. We'll confirm the fit and send you a quote.
