Powerful engine
Smooth and powerful response from the 493cc EFI gasoline engine.
Ranch & farm
493cc 4WDUTV with EPS493cc 4WD UTV with EPS
The TMG-ATU565 is an off-road UTV (Utility Terrain Vehicle) that can be used to explore, work, and play.
Color
Starting at$14,499CAD
How it's built
Feature by feature
Scroll through it. The picture follows the text.
01 / 05
On - demand 4WD drivetrain
Selectable 4WD with front locking differential helps you tackle any terrain.

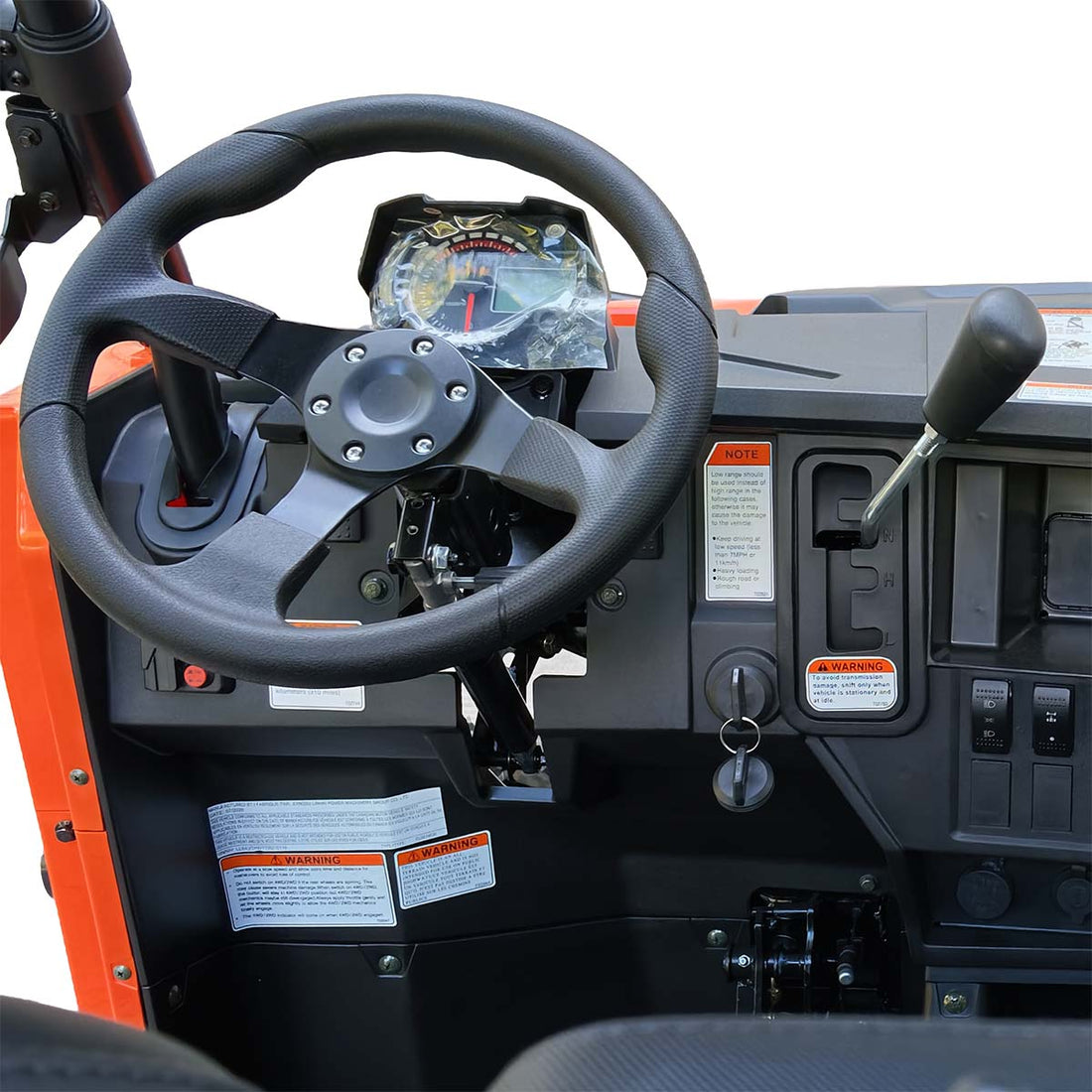

Electric power steering
Electric power steering helps you drive all day long without fatigue.
Comfortable cab
Stay comfortable with bolstered seats and an adjustable steering column.
Protection from the elements
Standard Roof and Windshield help keep you protected from the mud.
Gallery
Every angle of it
Studio views straight from the TMG Industrial catalogue.
Scroll to pan
Technical data
Every number on one screen
Manufacturer specifications for TMG-ATU565E.
- Powerful Engine: Smooth and powerful response from the 493cc EFI gasoline engine.
- On - Demand 4WD Drivetrain: Selectable 4WD with front locking differential helps you tackle any terrain.
- Electric Power Steering: Electric power steering helps you drive all day long without fatigue.
- Comfortable Cab: Stay comfortable with bolstered seats and an adjustable steering column.
- Protection From the Elements: Standard Roof and Windshield help keep you protected from the mud.

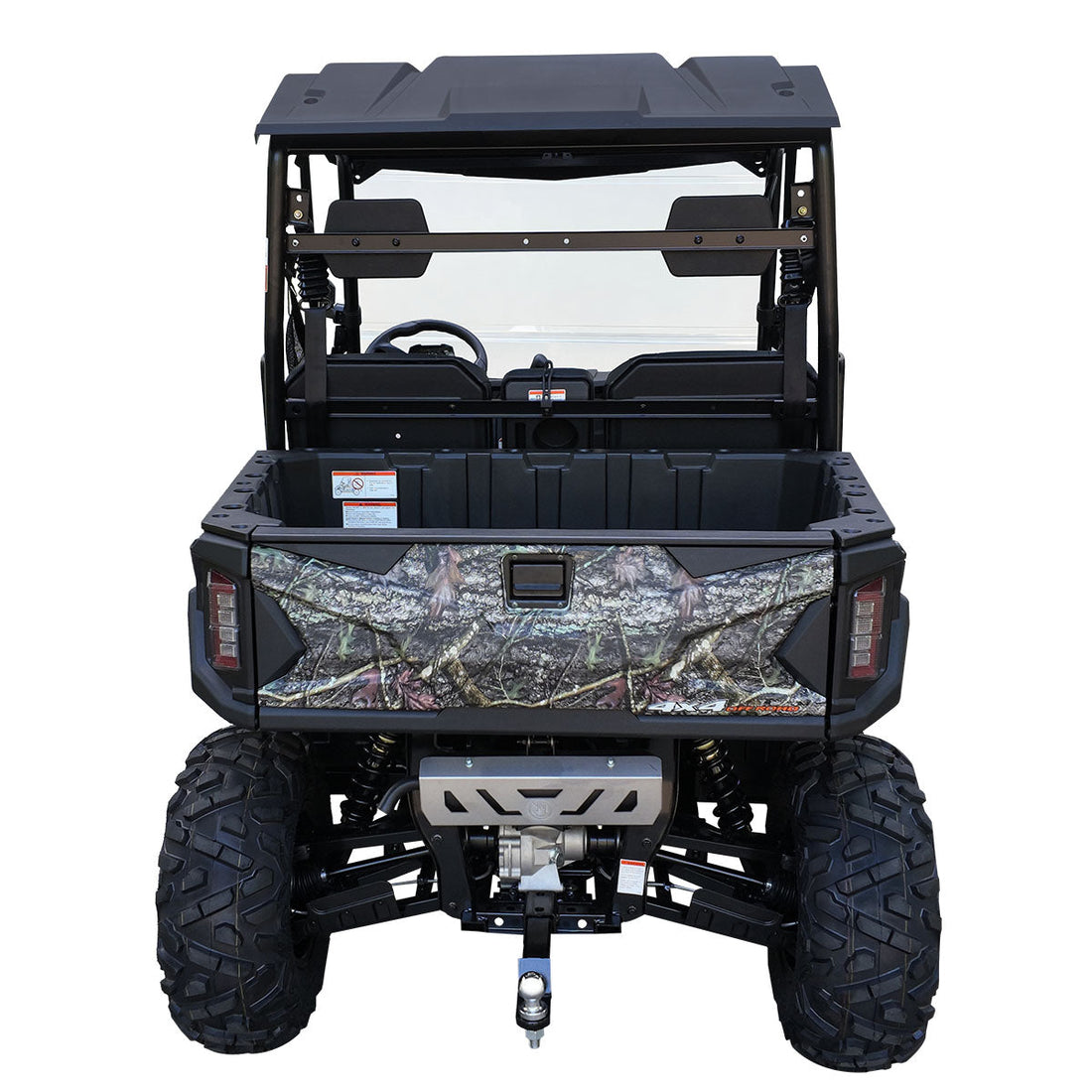

- Tilting Cargo Bed: The tilting cargo bed helps you move tools and dump material with ease.
- Standard Trailer Hitch: Standard 2" trailer hitch lets you tow trailers and equipment to get work done.

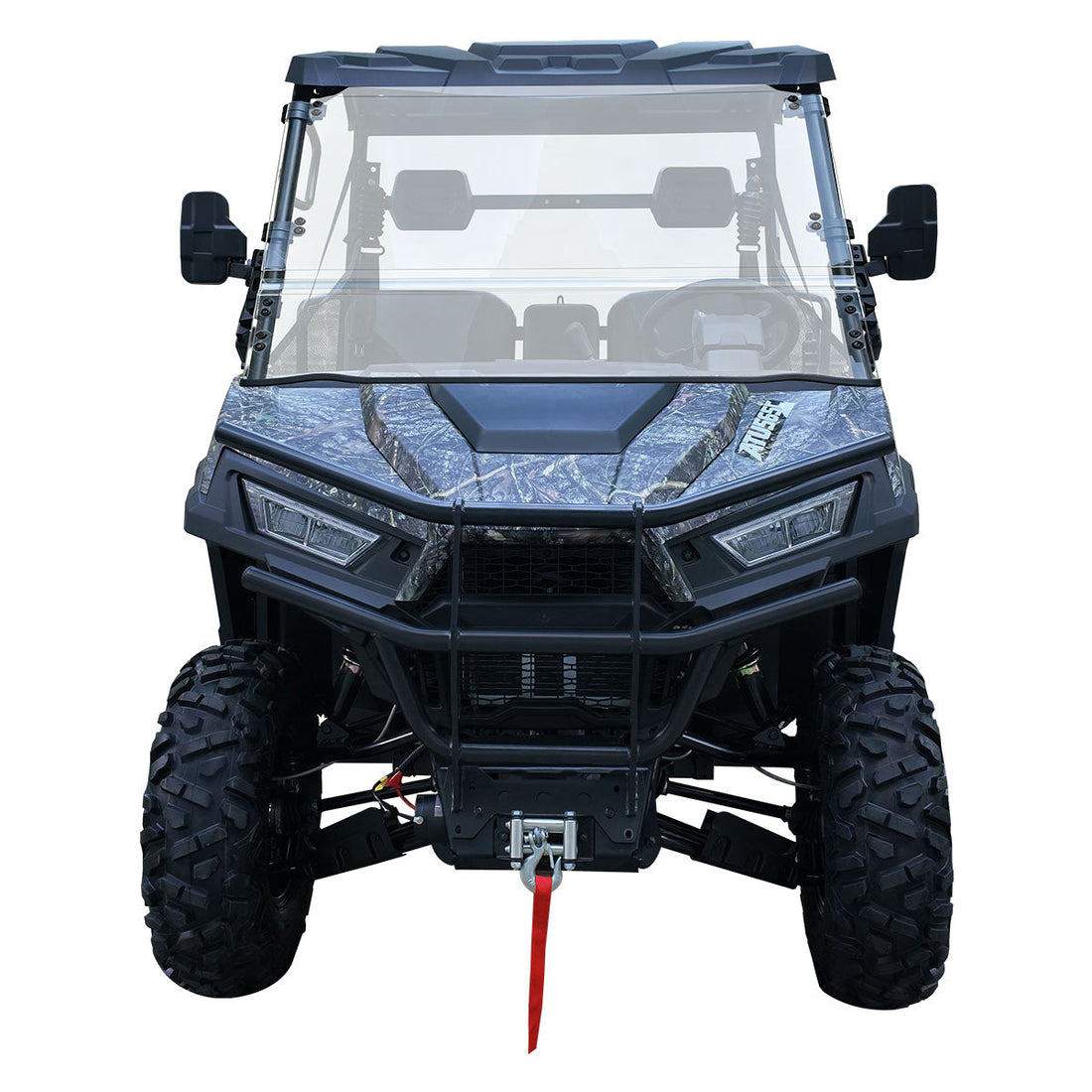

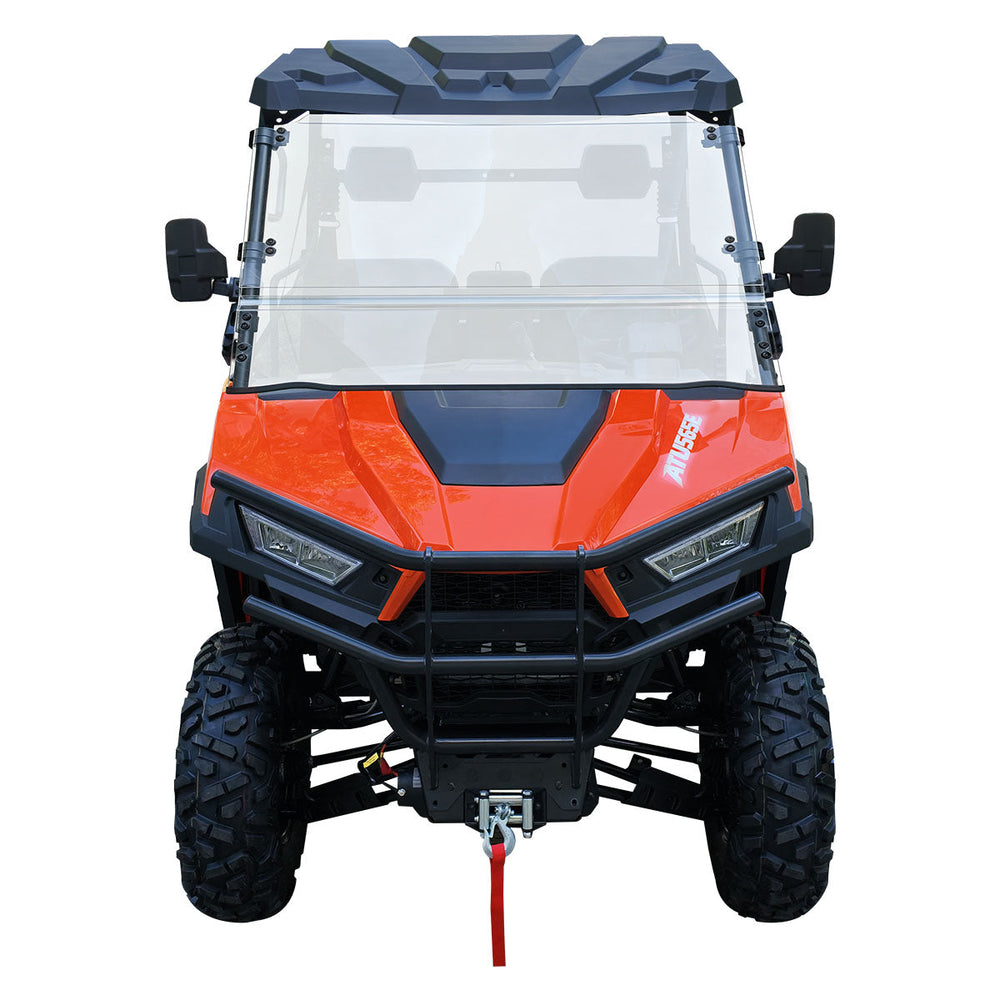

- Heavy Duty 3000 lb Winch: The heavy duty 3000 lb winch helps pull anything you need.

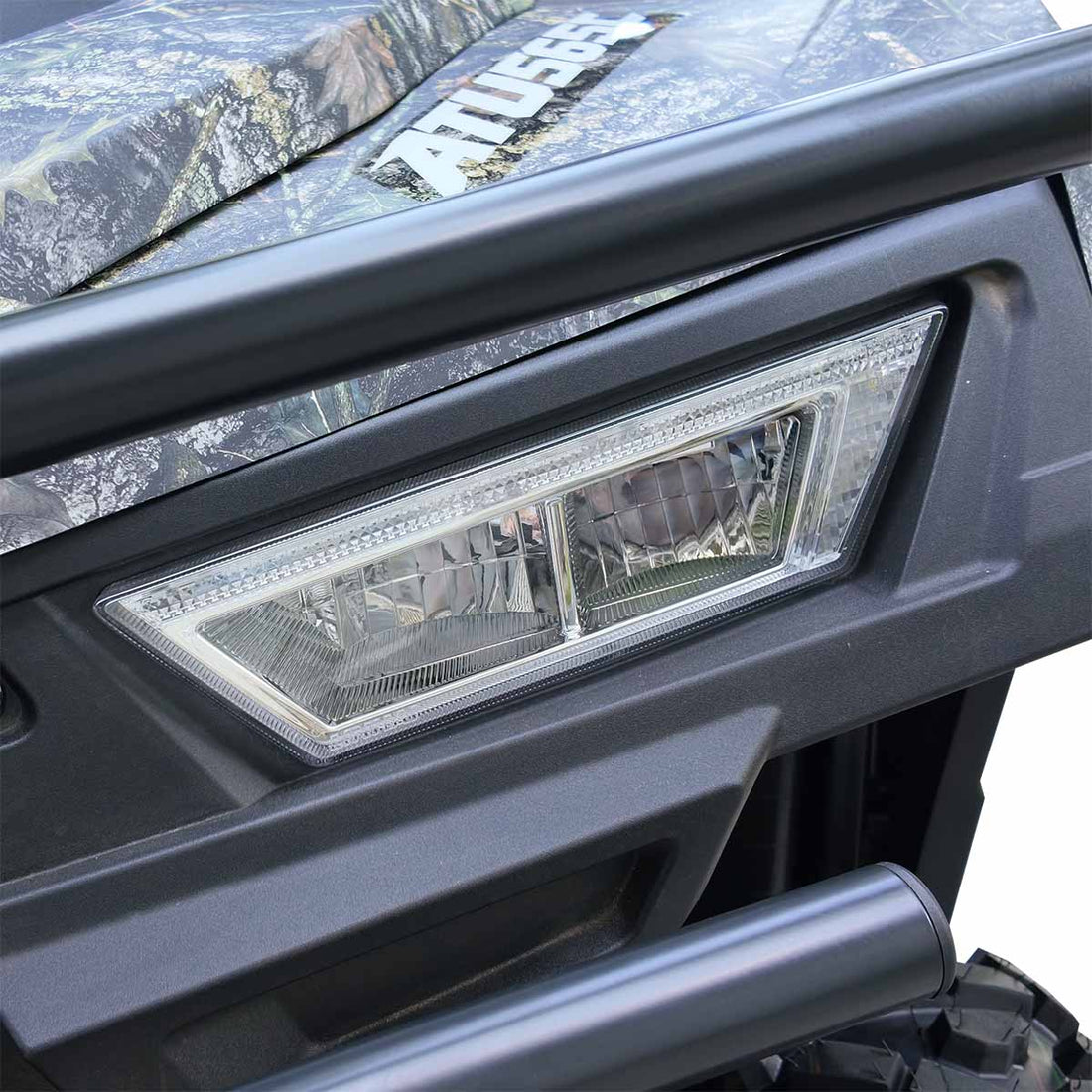

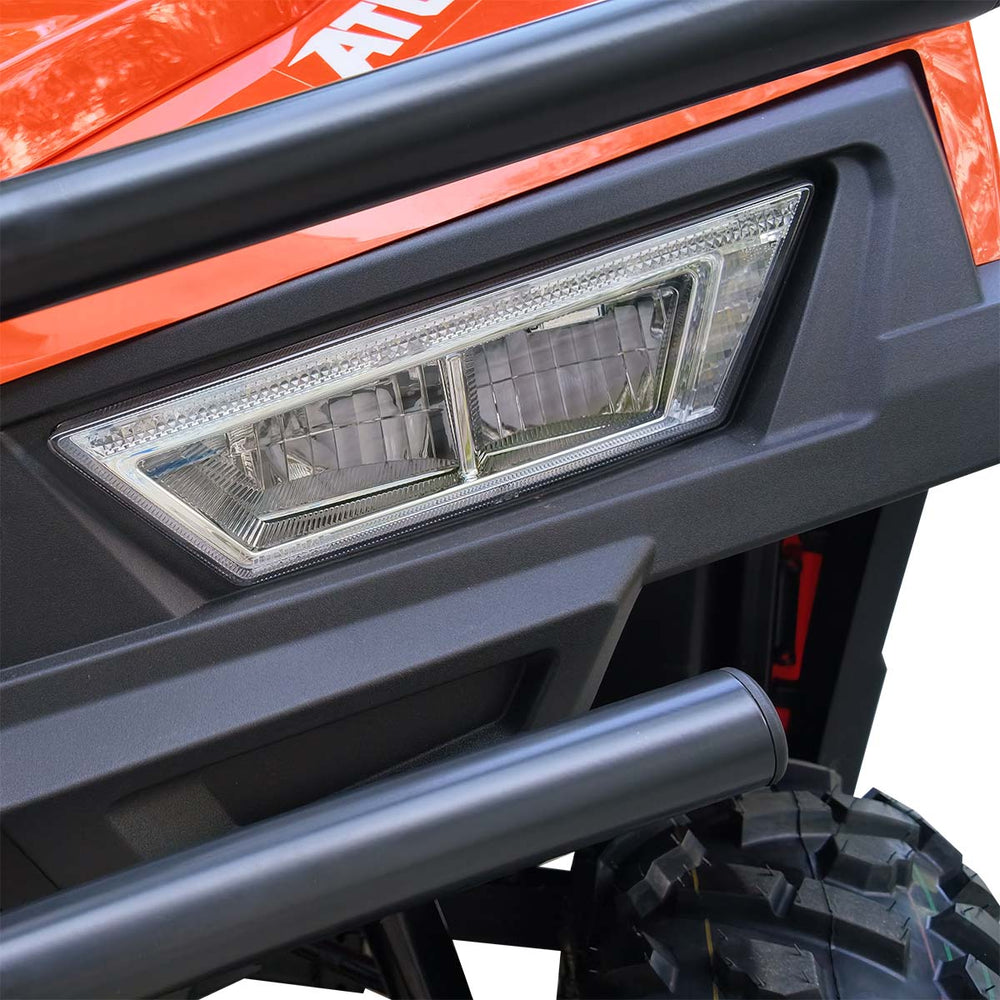

- LED Matrix Headlights: The bright LED Matrix headlights help you see the darkest trails.

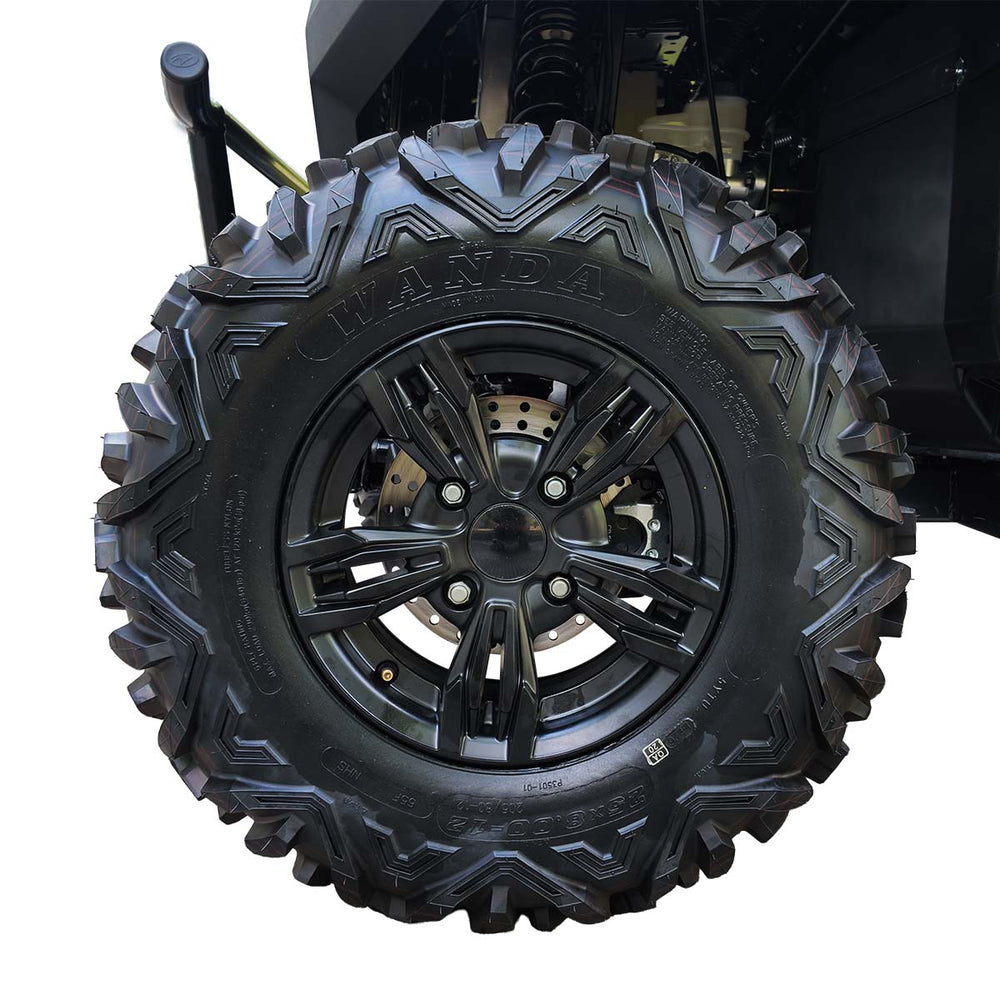

- All Terrain Tires: 25" All Terrain tires on lightweight alloy wheels keep you confident in all conditions.
- Ground clearance
- 11.2 in / 285 mm
- Wheels
- Alloy
- Tires
- F: AT25x8–12, R: AT25x10–12
- Winch capacity
- 3000 lb / 1460 kg
- Towing capacity
- 441 lb / 200 kg
- Dry weight
- 1158 lb / 525 kg
- Length x width x height
- 110 x 58 x 76 in / 279 x 147 x 192 cm
- Fuel tank capacity
- 26 L / 6.9 gal
- Max speed
- 70 km/h / 43 mph
- Transmission
- CVT with L-H-N-R
- Electric power steering
- Yes
- Engine model
- LH188MR-A
- Engine description
- Single Cylinder, 4 Stroke, Water Cooled
- Horsepower
- 33 HP
- Engine displacement
- 493 cc
- Engine certification
- EPA
- Engine start type
- Electric Start
- Fuel delivery
- Delphi EFI
- 4WD system
- On Demand, Front Locking Differential
- Seating
- 2 Seats with Headrests
- Trailer hitch with 2" ball mount
- Yes
- Headlights
- LED
- Windshield
- Yes
- Safety net
- Yes
- ABS half doors
- Available for Purchase
- Adjustable steering column
- Yes
- Roof
- Yes

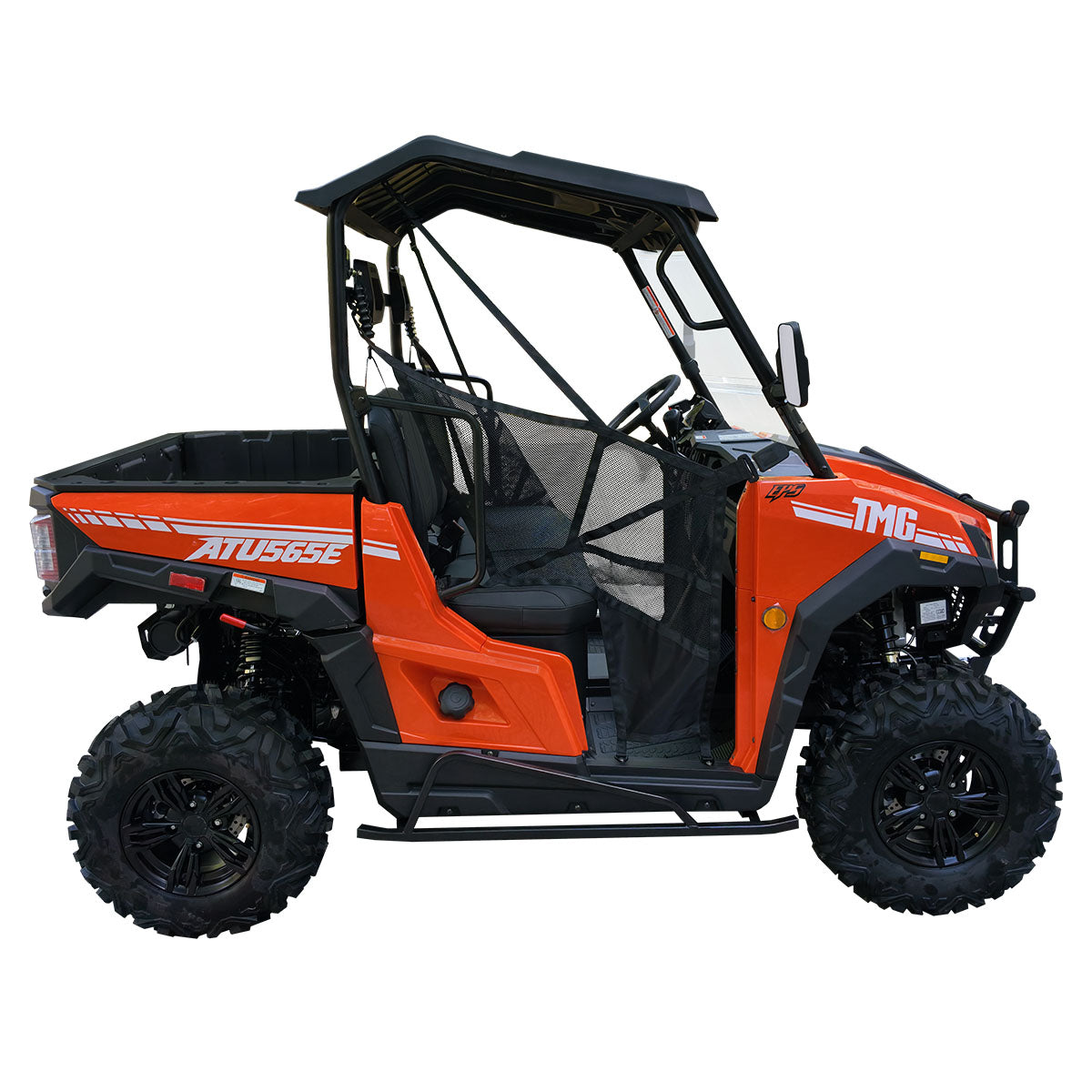

The TMG-ATU565 is an off-road UTV (Utility Terrain Vehicle) that can be used to explore, work, and play. The ATU565 is powered by powerful 493cc EFI engine. Power is sent through a CVT transmission with Reverse, Park, High, and Low range gearing that enables capable riding all day long. The On-Demand 4WD system with front locking differential can be controlled by a dash mounted switch and allows you to explore trails you've never seen before.
The ATU565 comes with comfortable bolstered seating, headrests, and enough room to take a passenger along for the adventure. The standard 2" trailer hitch and tow ball along with the practical tilting cargo bed allow you to move tools, equipment, and material around with ease. The ATU565 also features rugged all terrain tires on lightweight alloy wheels, a heavy duty 3000 lb winch, side mirrors, and a protective roof and windshield. Optional TMG-ATU765565-HD ABS Half Doors can be purchased to further seal off the cabin. The ATU565 is ready for trails, jobsites, or just having fun.
Explore the rest of the TMG UTV lineup like the TMG-ATU455 or TMG-ATU765 .
* The TMG- ATU565 is for Off Road Use Only *
NVIS/eNVIS Policy Manual New Vehicle Information Statement (NVIS) Form
Compare
Against similar models
493cc 4WD UTV with EPS
TMG-ATU565E
- Power
- 33 HP
- Weight
- 1158 lb / 525 kg
- Engine
- LH188MR-A
- Price
- Starting at $14,499
352cc 4WD UTV
TMG-ATU455C
- Power
- 26 HP
- Weight
- 1114 lb / 505 kg
- Engine
- LH180MQ-3B
- Price
- Starting at $10,999
