Forklift Fork Positioner, Class II Mount, Hydraulic Side Shift, 4400 Lb Capacity, TMG-FFP20
- Richmond Warehouse Sold out
- Mississauga Warehouse Sold out
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store

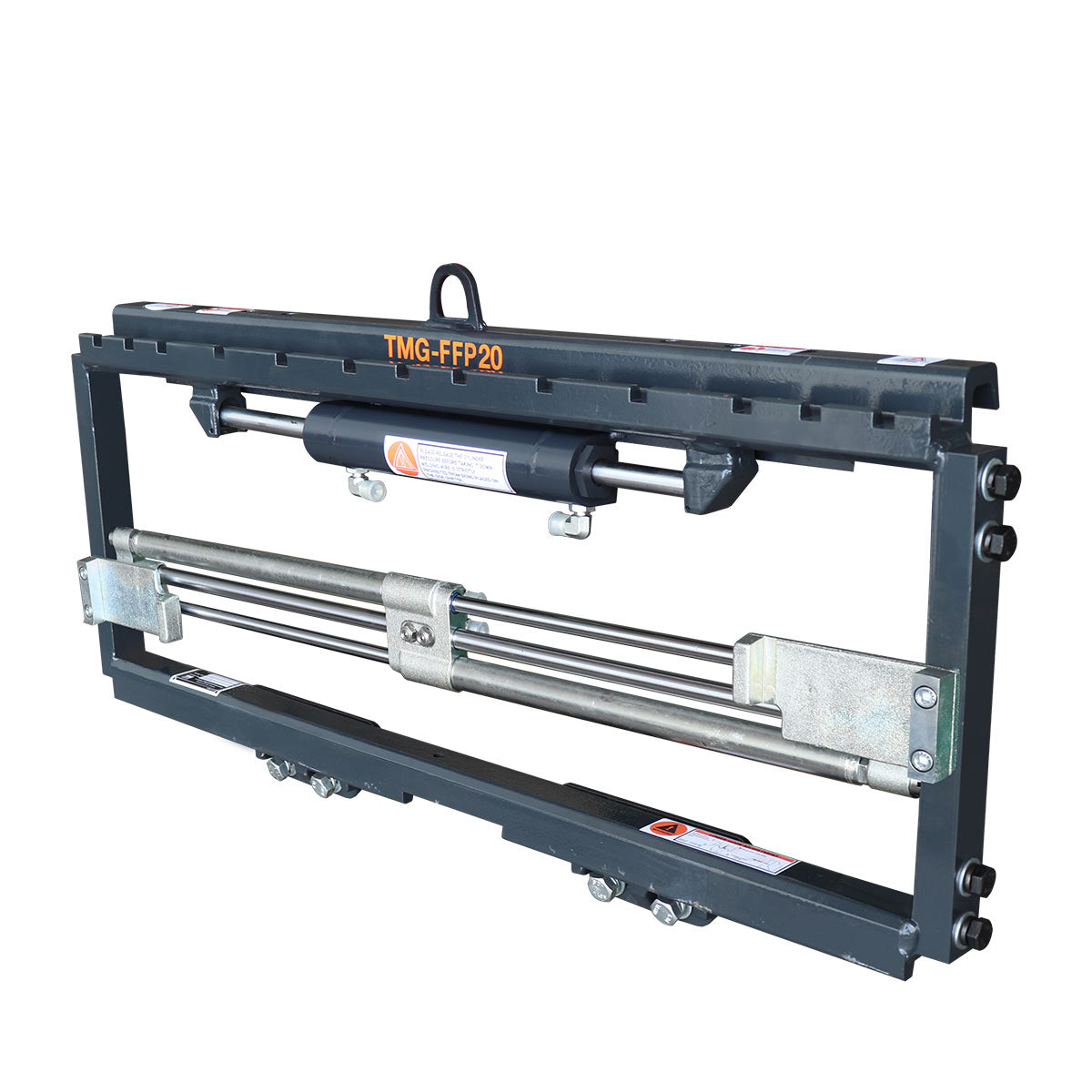

The TMG-FFP20 Fork Positioner is a hydraulic forklift attachment designed to improve handling efficiency and operator convenience. Designed for Class II forklift carriage mounting, it is built with high-strength steel for reliable durability and long-lasting performance for daily material handling tasks.
With a rated capacity of 4400 lb, this attachment allows operators to adjust fork spacing from the cab to match different pallet sizes, crates, or loads. The integrated side shift function also helps improve alignment in tight aisles, trailers, warehouses, and loading areas.
The TMG-FFP20 includes G 3/8" oil pipe fittings for easy connection to compatible hydraulic systems. By combining hydraulic fork positioning and side shift functions, it helps operators handle pallets, crates, and other loads more efficiently in warehouses, yards, farms, and industrial work environments.
TMG Industrial also carries a larger-size model: TMG-FFP30.
- Load Capacity: 4400 lb (2000 kg)
- Installation Grade: Class II Mount
- Beam Width: 40.7" (1035 mm)
- Lateral Displacement: 10.6"-38.8" (270 - 985 mm)
- Effective Thickness: 3.1" (79 mm)
- Horizontal Center of Gravity: 0.9" (24 mm)
- Hydraulic Pressure: 2000 - 3300 PSI (14 - 23 MPa)
- Hydraulic Flow: 1.1 - 3.2 GPM (4 - 12 L/min)
- Hydraulic Fittings: 1BG9-06-040G, G1/4 transfer G3/8; 1BH-06-14, M14 transfer G3/8
- Hydraulic hoses are not included.
- Net Weight: 145 lb (66 kg)
- Fork Positioning: Allows the operator to adjust the distance between the forks without leaving the driver's seat, improving efficiency and reducing manual labour.
- Hydraulic Side Shift: Enables both forks to shift laterally for more precise pallet alignment and easier load handling in tight spaces.
- Class II Mount: Designed for forklifts with Class II carriage mounting, making it suitable for many common light to mid-duty forklift applications.
- 4400 Lb Capacity: Rated to handle loads up to 4400 lb, making it suitable for warehouses, yards, farms, and material handling applications.
- Durable Construction: Built with high-strength steel for reliable durability and long-lasting performance in demanding material handling environments.
- Hydraulic Fittings Included: Comes with oil pipe fittings G 3/8" for easy connection to compatible hydraulic systems.
