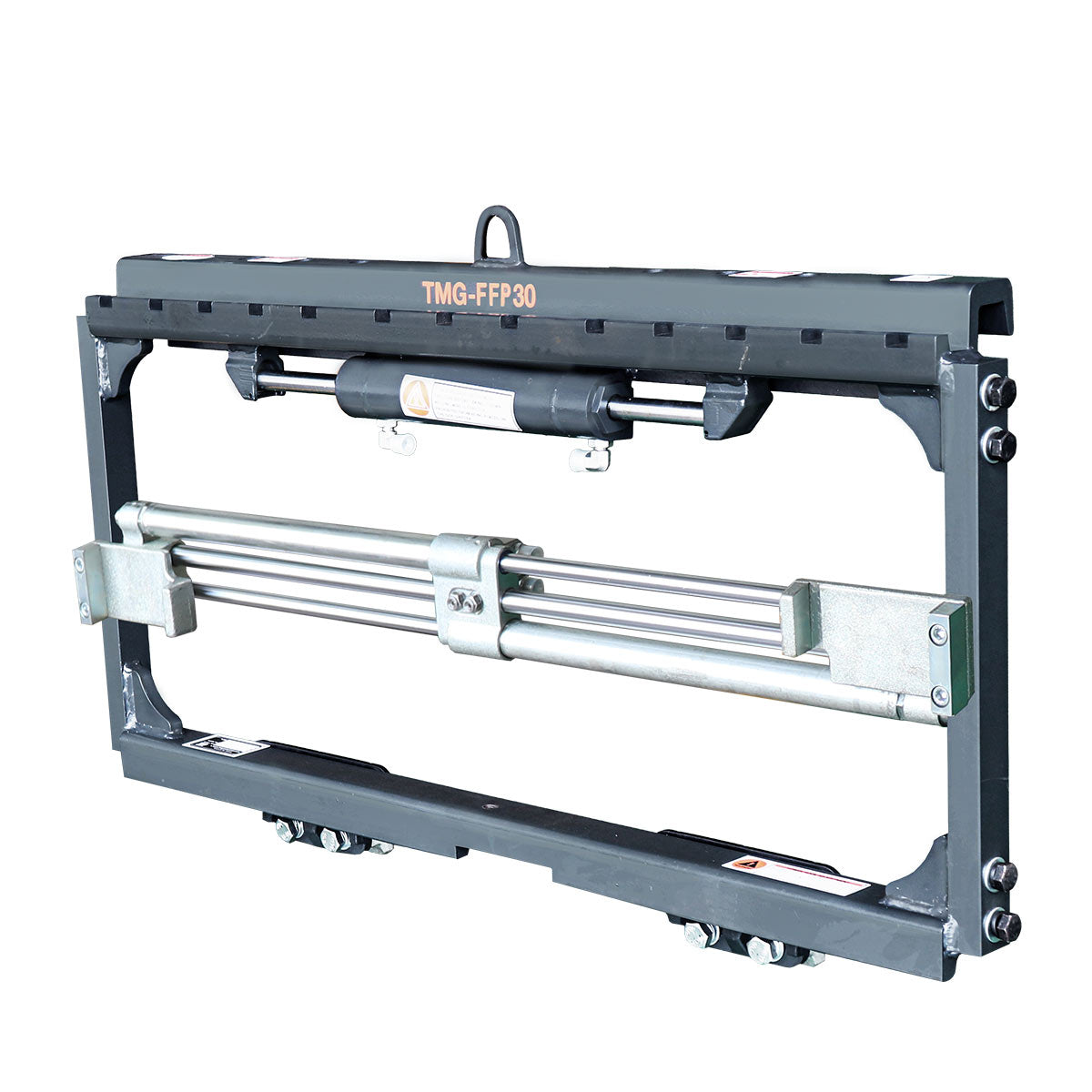

Forklift Fork Positioner, Class III Mount, Hydraulic Side Shift, 6600 Lb Capacity, TMG-FFP30
- Richmond Warehouse Sold out
- Mississauga Warehouse Sold out
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store
The TMG-FFP30 Fork Positioner is a hydraulic forklift attachment designed to improve handling efficiency and operator convenience. Designed for Class III forklift carriage mounting, it built with high-strength steel for reliable durability and long-lasting performance for daily material handling tasks.
With a rated capacity of 6600 lb, this attachment allows operators to adjust fork spacing from the cab to match different pallet sizes, crates, or loads. The integrated side shift function also helps improve alignment in tight aisles, trailers, warehouses, and loading areas.
The TMG-FFP30 includes G 3/8" oil pipe fittings for easy connection to compatible hydraulic systems. By combining hydraulic fork positioning and side shift functions, it helps operators handle pallets, crates, and other loads more efficiently in warehouses, yards, farms, and industrial work environments.
TMG Industrial also carry a similar model: TMG-FFP20.
- Load Capacity: 6600 lb (3000 kg)
- Installation Grade: Class III Mount
- Beam Width: 43.3" (1100 mm)
- Lateral Displacement: 10.6"-41.3" (270 - 1050 mm)
- Effective Thickness: 3.5" (88 mm)
- Horizontal Center of Gravity: 1.1" (29 mm)
- Hydraulic Pressure: 2000 - 3300 PSI (14 - 23 MPa)
- Hydraulic Flow: 1.1 - 3.2 GPM (4 - 12 L/min)
- Hydraulic Fittings: 1BG9-06-040G, G1/4 transfer G3/8; 1BH-06-14, M14 transfer G3/8
- Hydraulic hoses are not included.
- Net Weight: 187 lb (85 kg)
- Fork Positioning: Allows the operator to adjust the distance between the forks without leaving the driver's seat, improving efficiency and reducing manual labour.
- Hydraulic Side Shift: Enables both forks to shift laterally for more precise pallet alignment and easier load handling in tight spaces.
- Class III Mount: Designed for forklifts with Class III carriage mounting, making it suitable for common light to mid-size forklifts.
- 6600 Lb Capacity: Rated to handle loads up to 6600 lb, making it suitable for warehouses, yards, farms, and material handling applications.
- Durable Construction: Built with high-strength steel for reliable durability and long-lasting performance in demanding material handling environments.
- Hydraulic Fittings Included: Comes with oil pipe fittings G 3/8" for easy connection to compatible hydraulic systems.
