493cc 4WD ATV TMG-ATV555E

Ranch & farm

493cc 4WD ATV493cc 4WD ATV

The TMG-ATV555 is an off-road ATV (All-Terrain Vehicle) that can be used to explore, work, and play.

Color

Starting at$8,499CAD

Available to order through the Oakville store

Request a quote Specifications

How it's built

Feature by feature

Scroll through it. The picture follows the text.

01 / 05

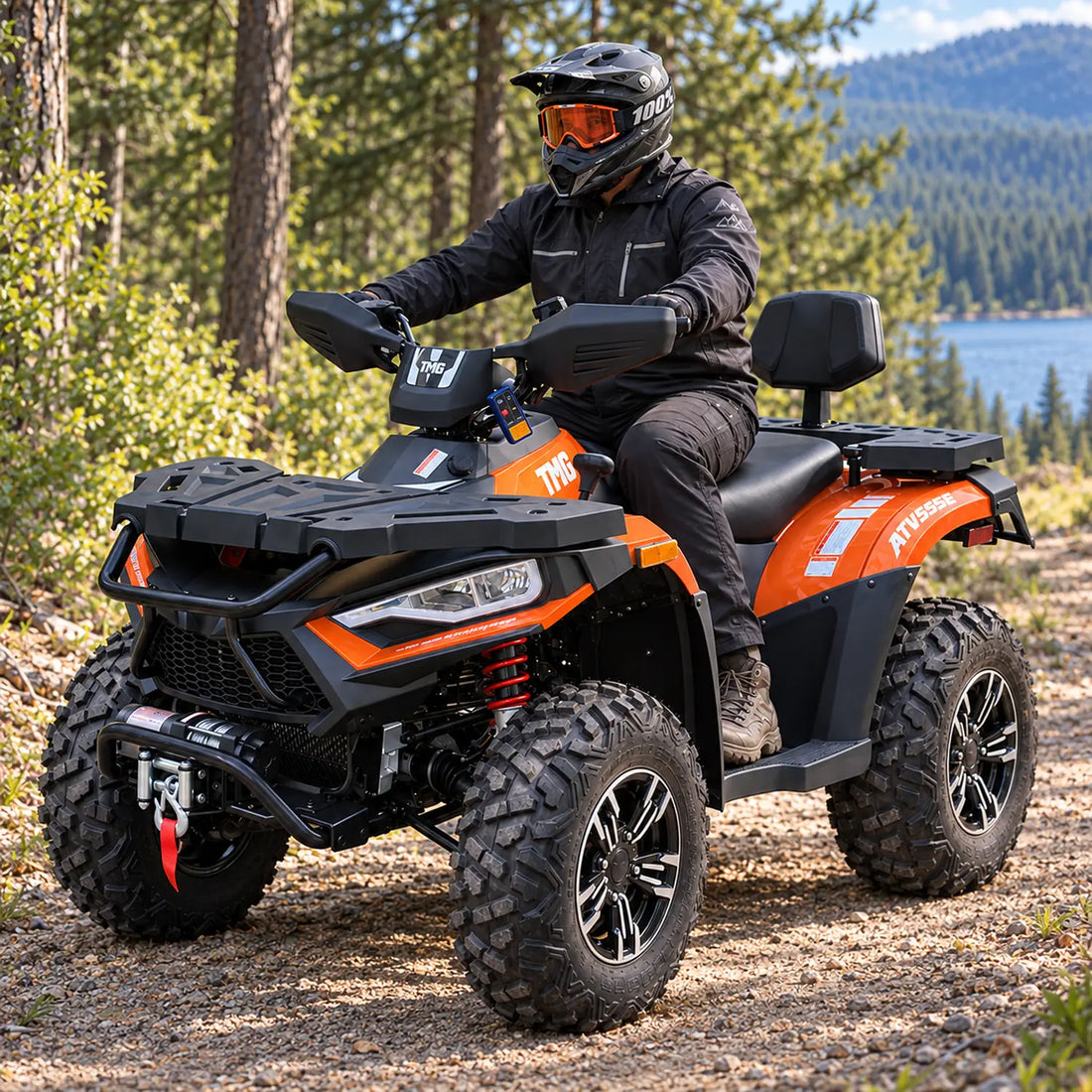

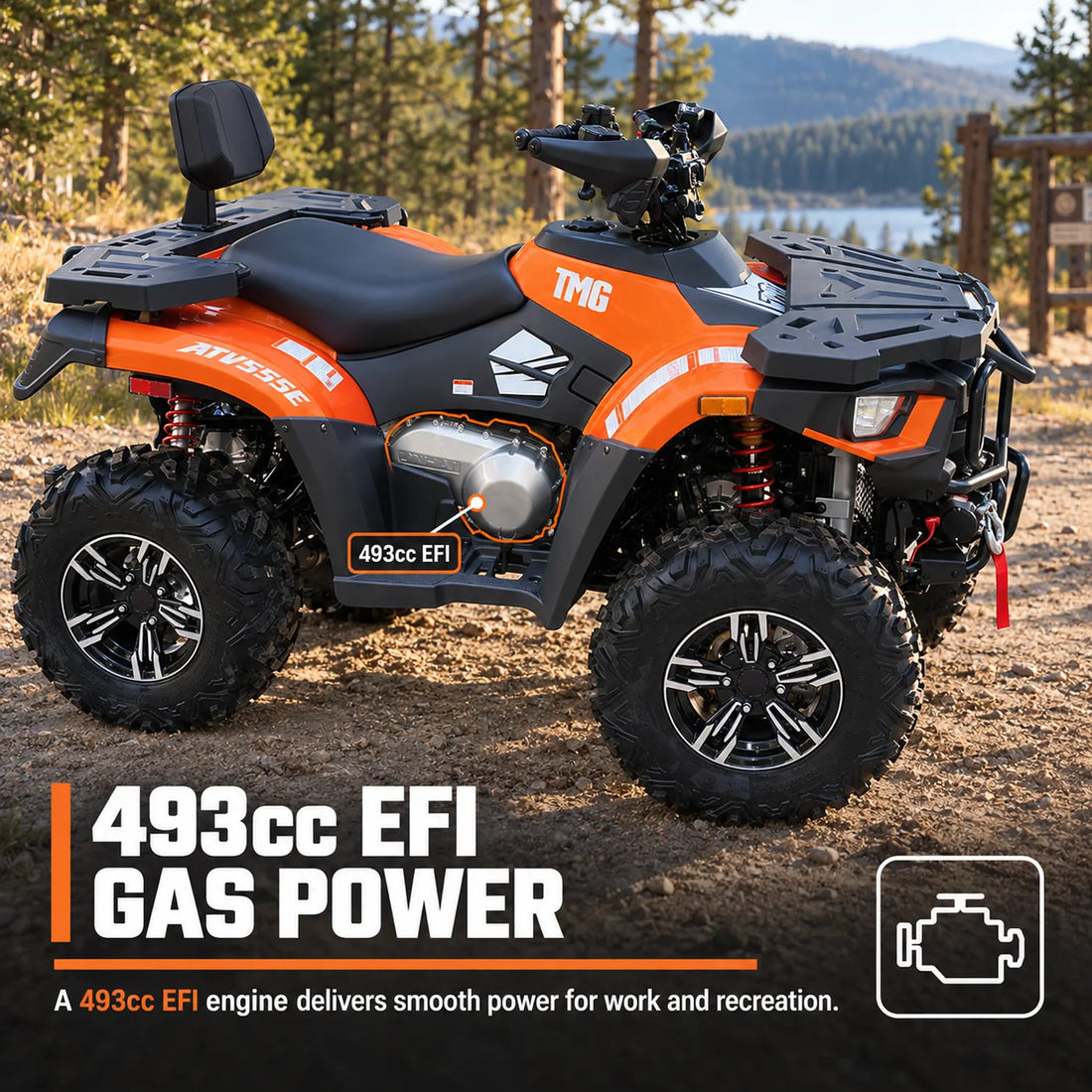

Powerful gas engine

Smooth and powerful response from the 493cc EFI gasoline engine.

On demand 4WD drivetrain

Selectable 2WD / 4WD with front locking differential helps you tackle any terrain.

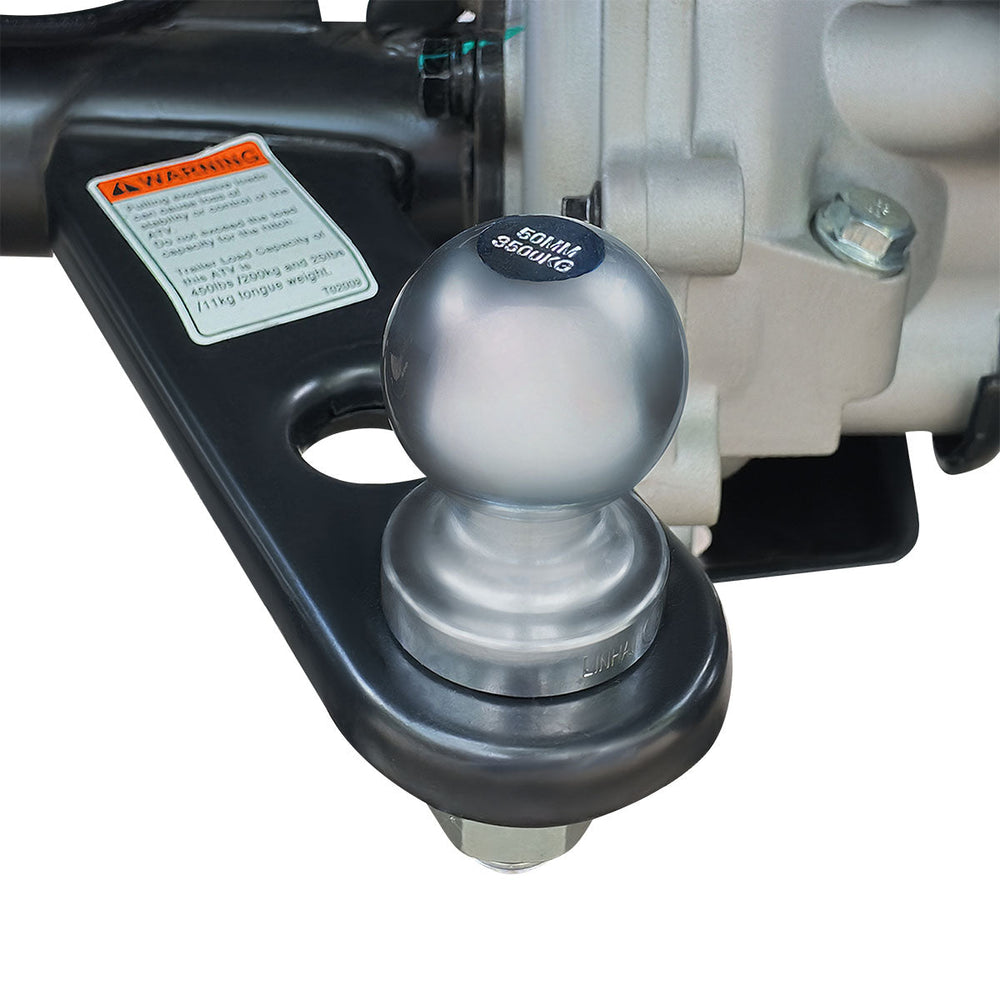

Standard trailer hitch

Standard 2" trailer hitch lets you tow trailers and equipment to get work done.

Heavy duty 3000 lb winch

The heavy duty 3000 lb winch helps pull anything you need.

Front and rear cargo racks

Front and rear cargo racks allow you to tie down and transport tools and equipment.

Gallery

Every angle of it

Studio views straight from the TMG Industrial catalogue.

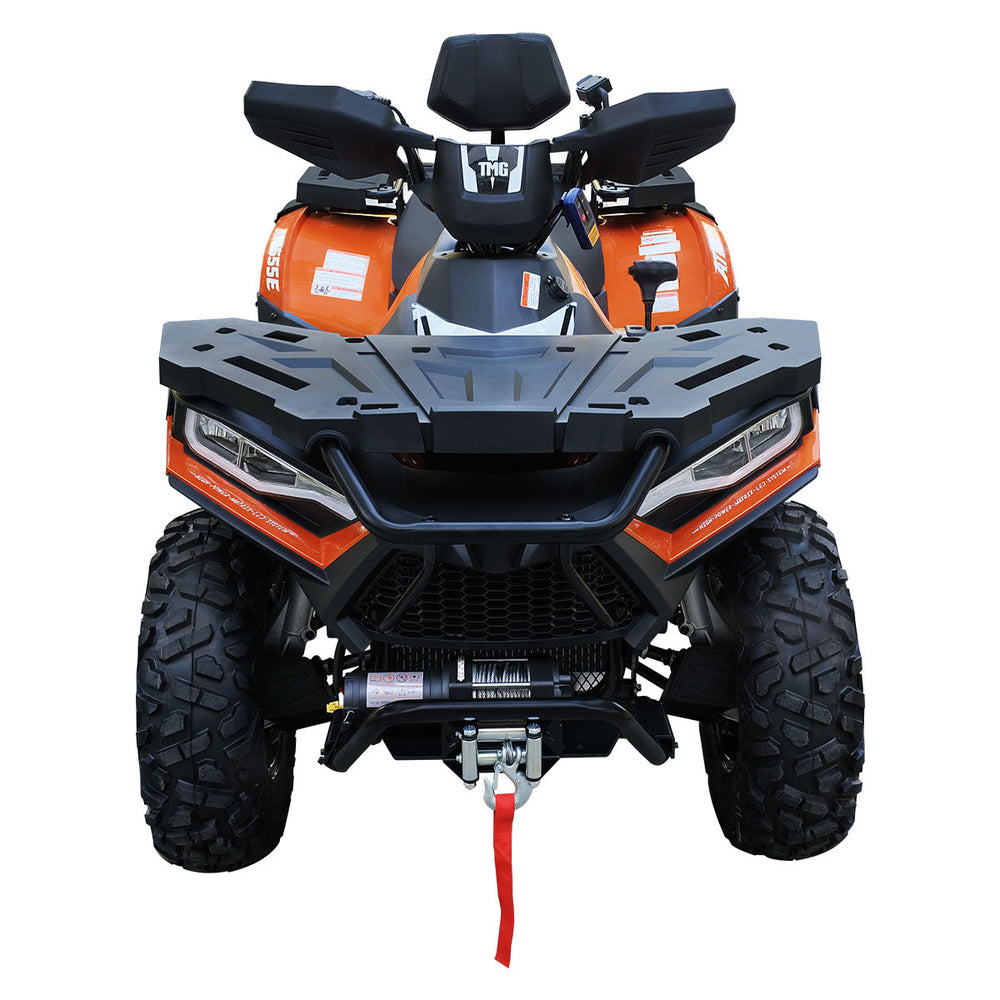

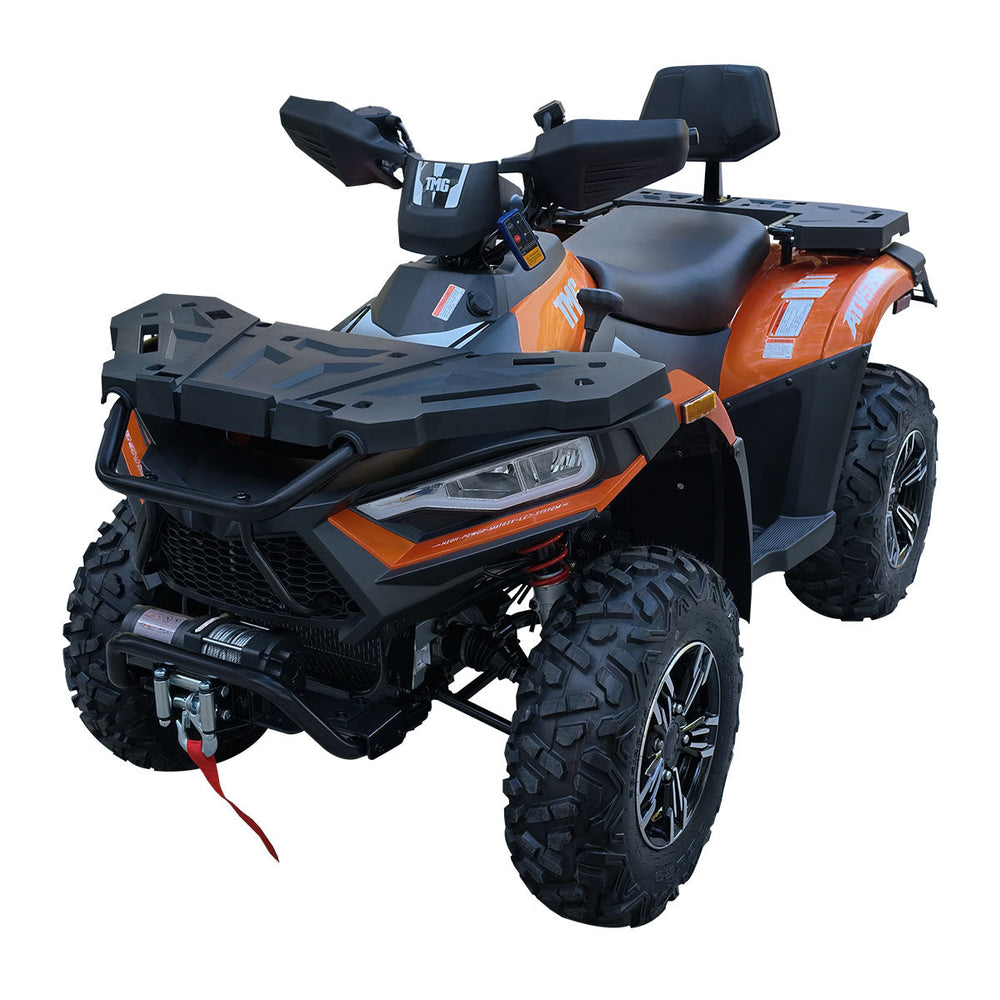

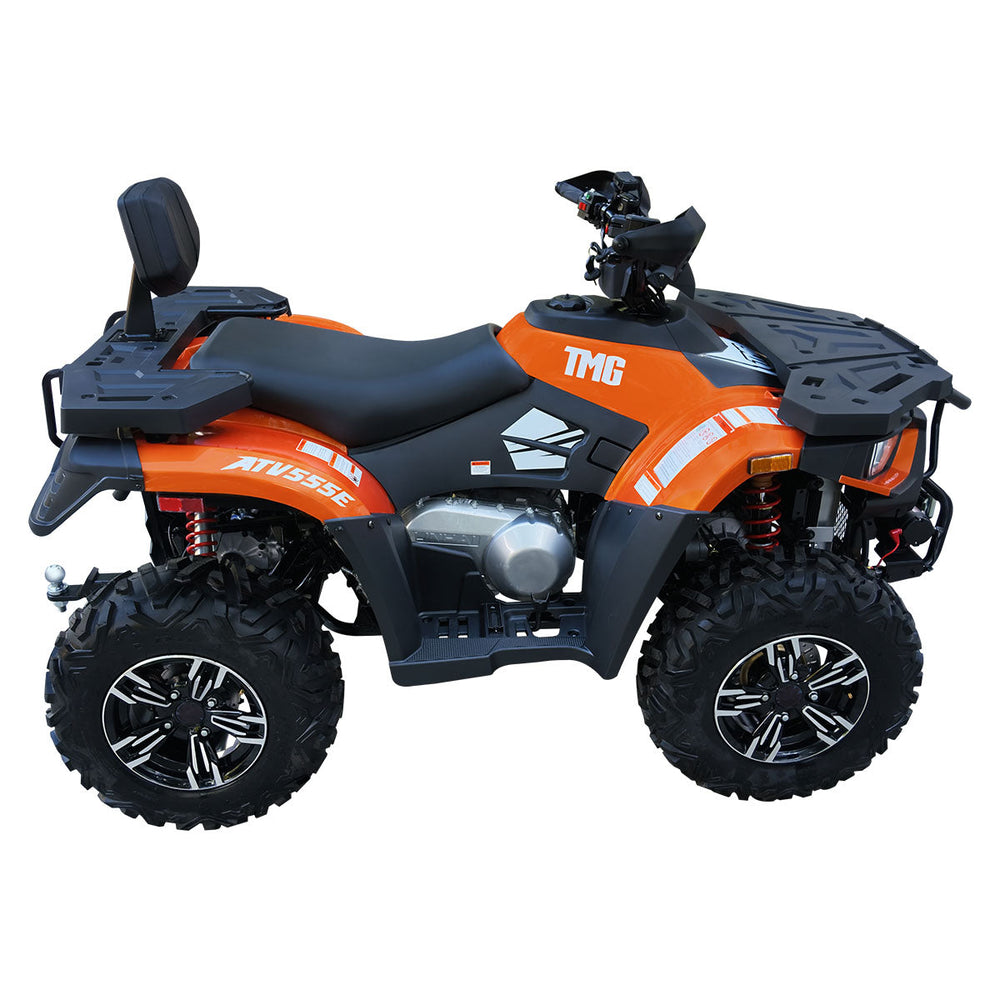

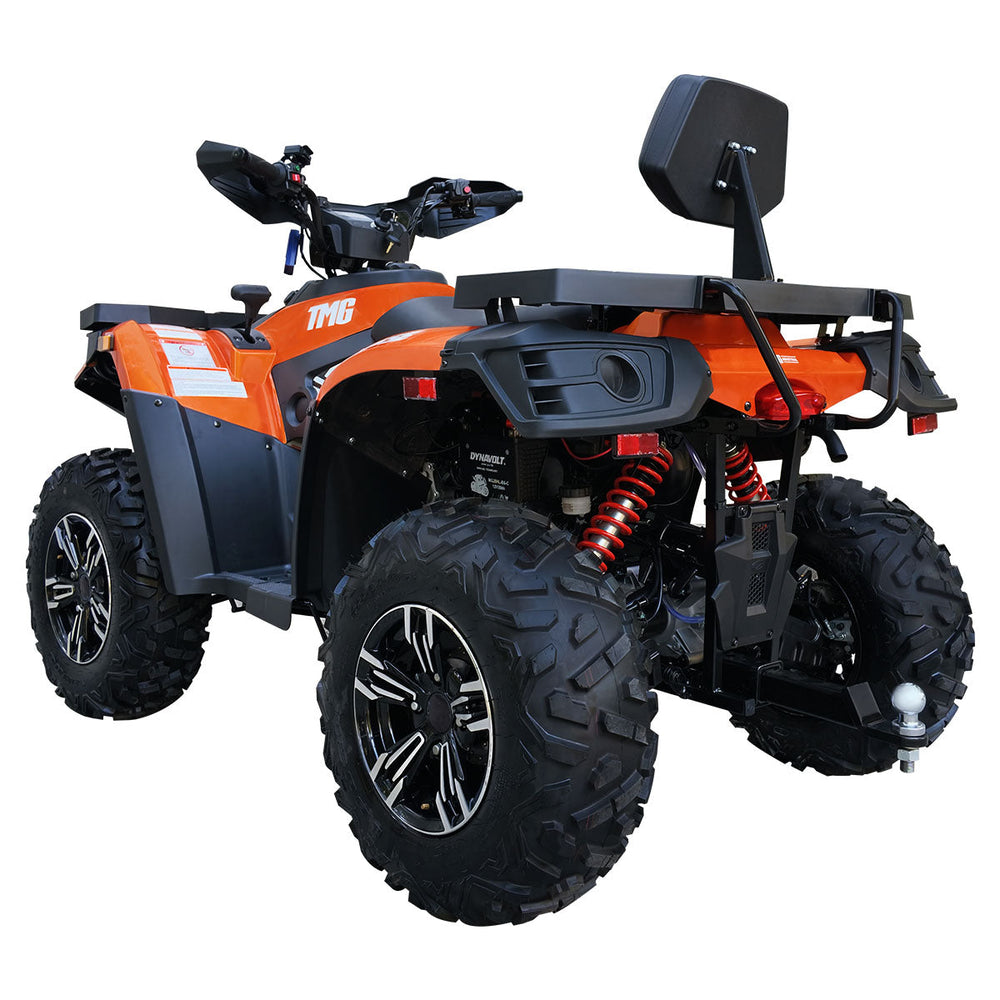

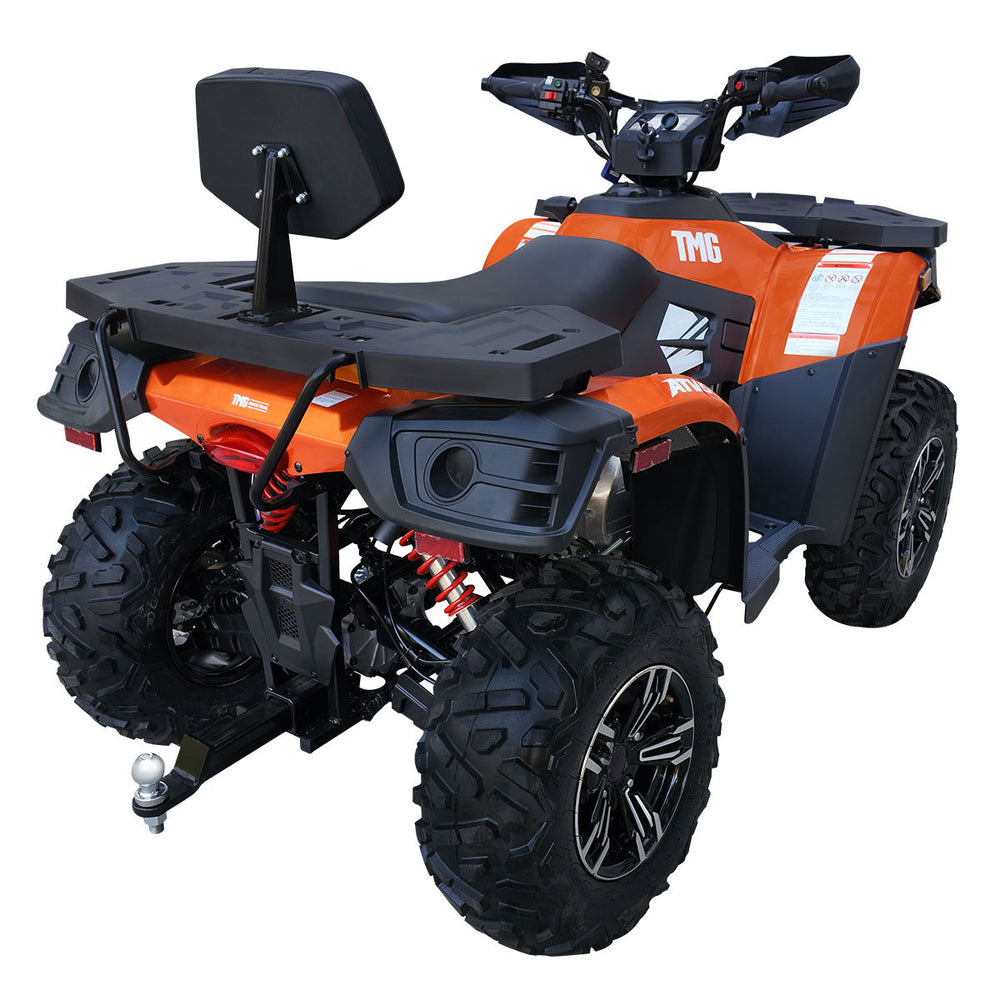

493cc ATV with On-Demand 4WD, Locking Differential, Trailer Hitch, Cargo Racks, and LED Lighting TMG-ATV555 — View 01 / 27

View 02 / 27

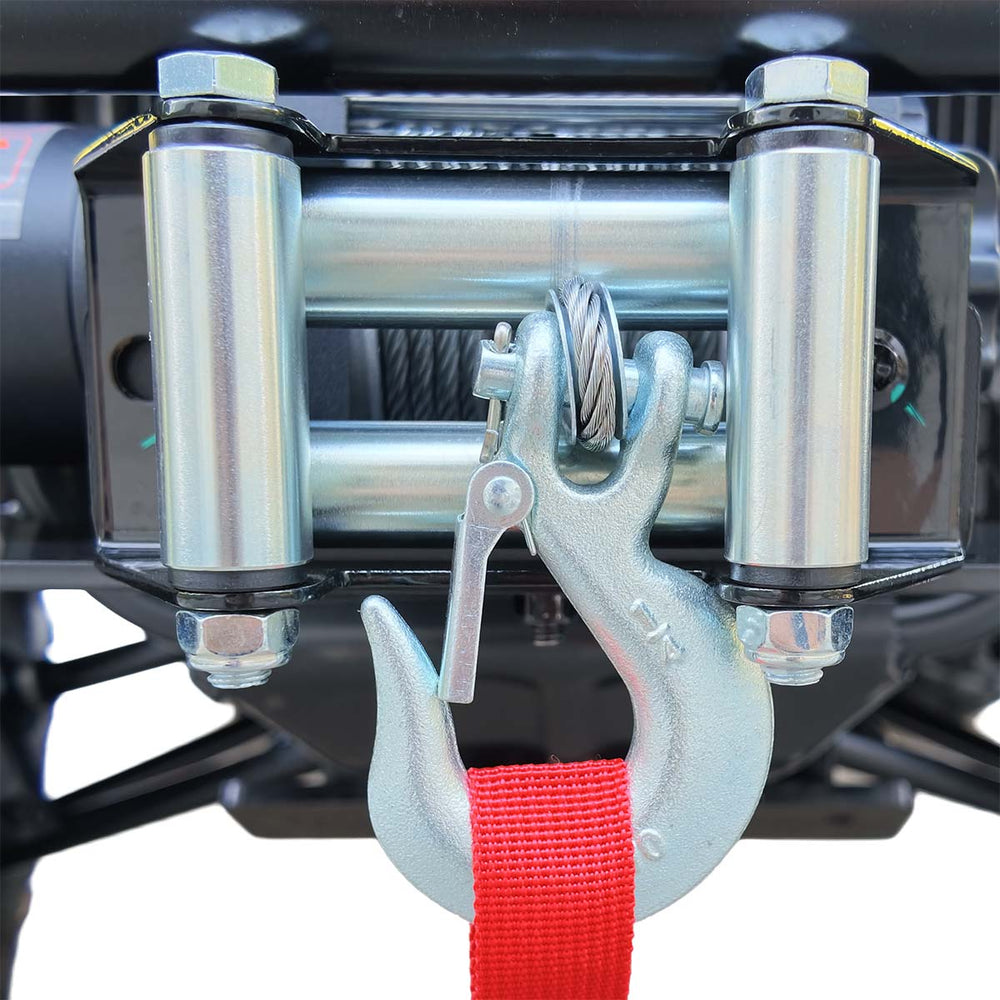

Close-up of front winch hook and roller fairlead on ATV. — View 10 / 27

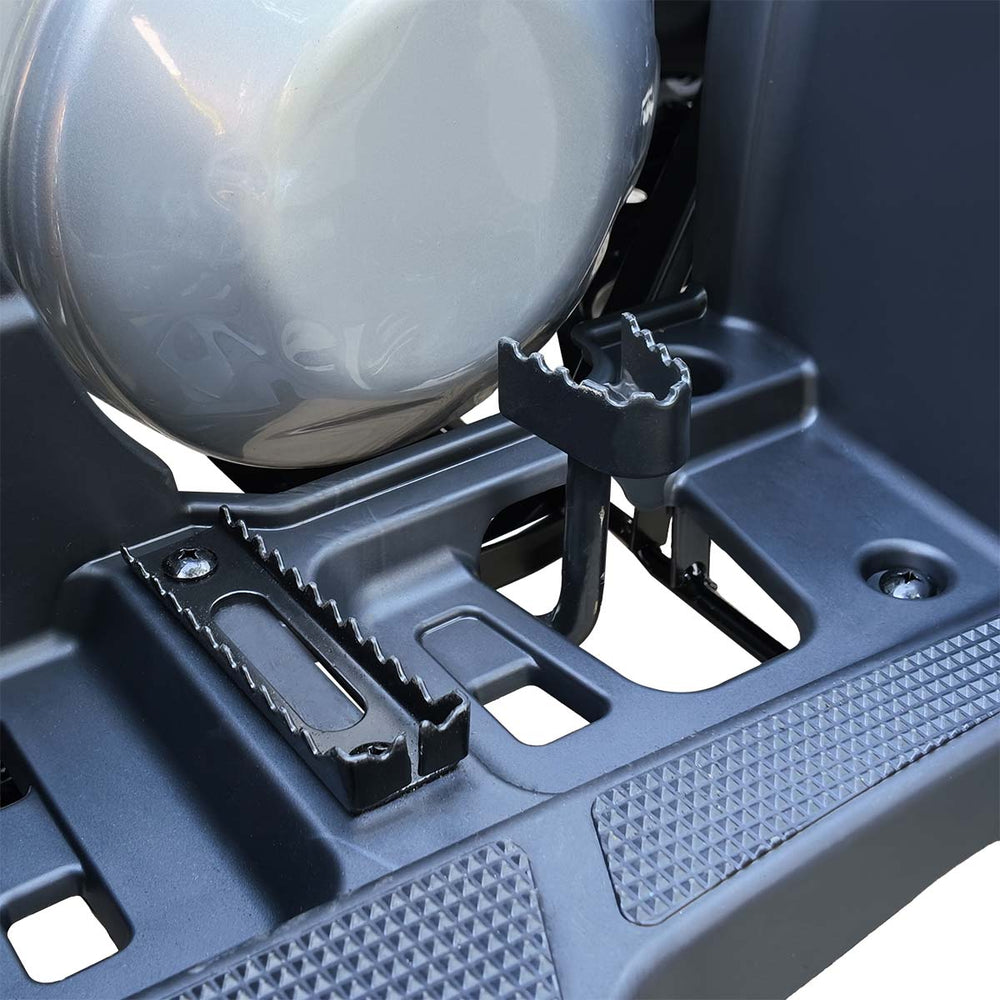

Rear footpeg and exhaust area detail on TMG ATV. — View 11 / 27

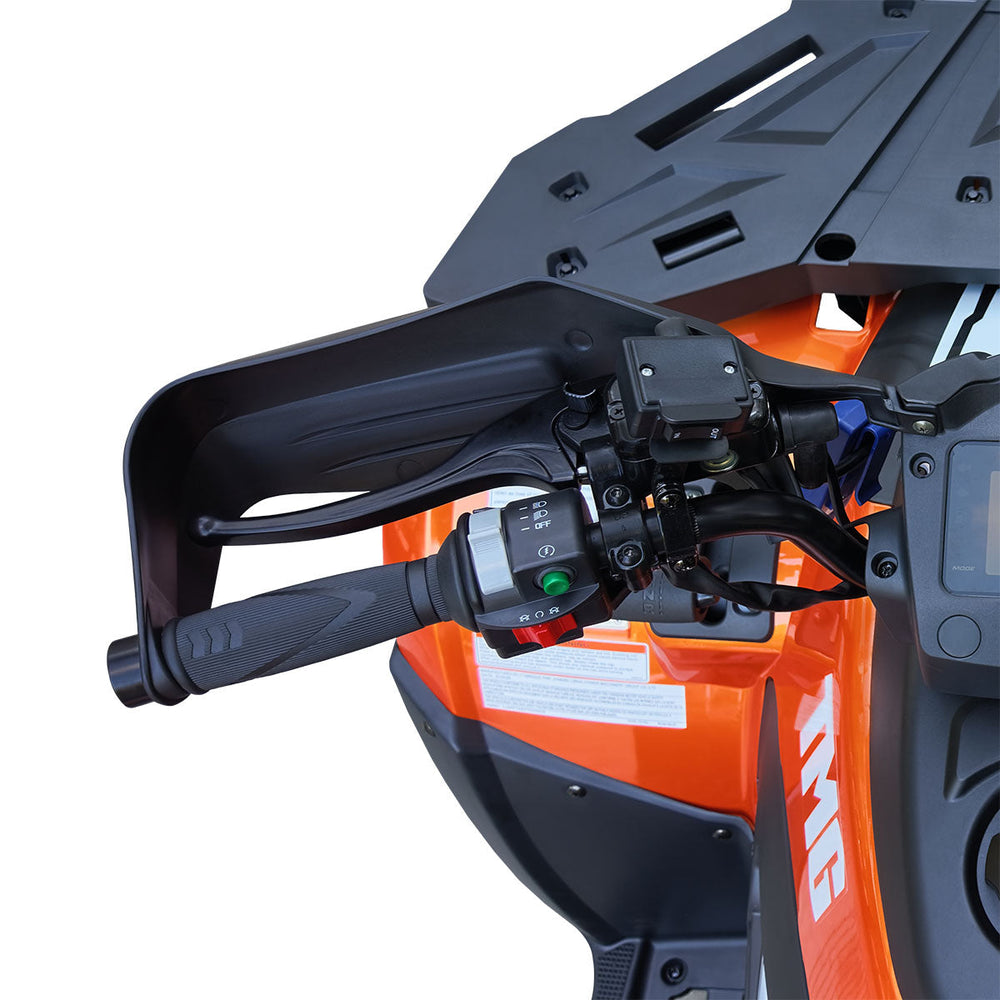

Left handlebar with handguard, throttle and switches on ATV. — View 12 / 27

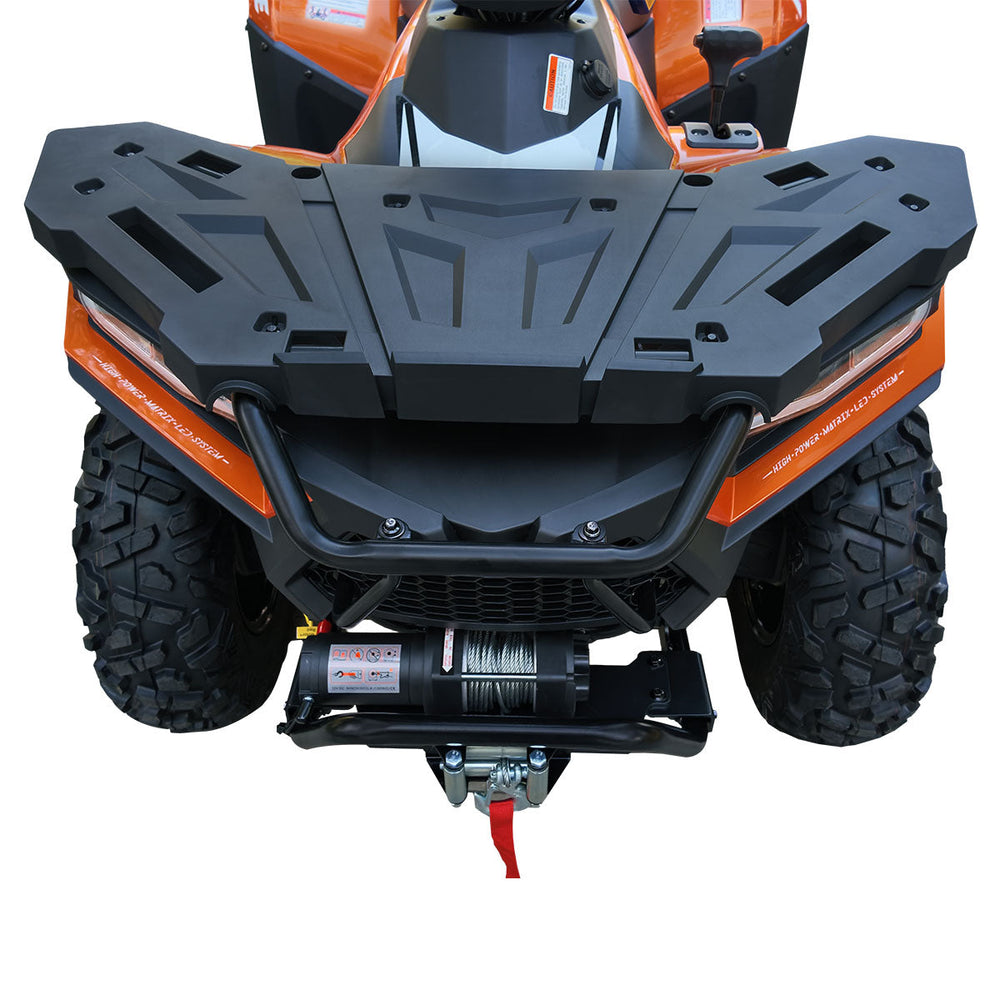

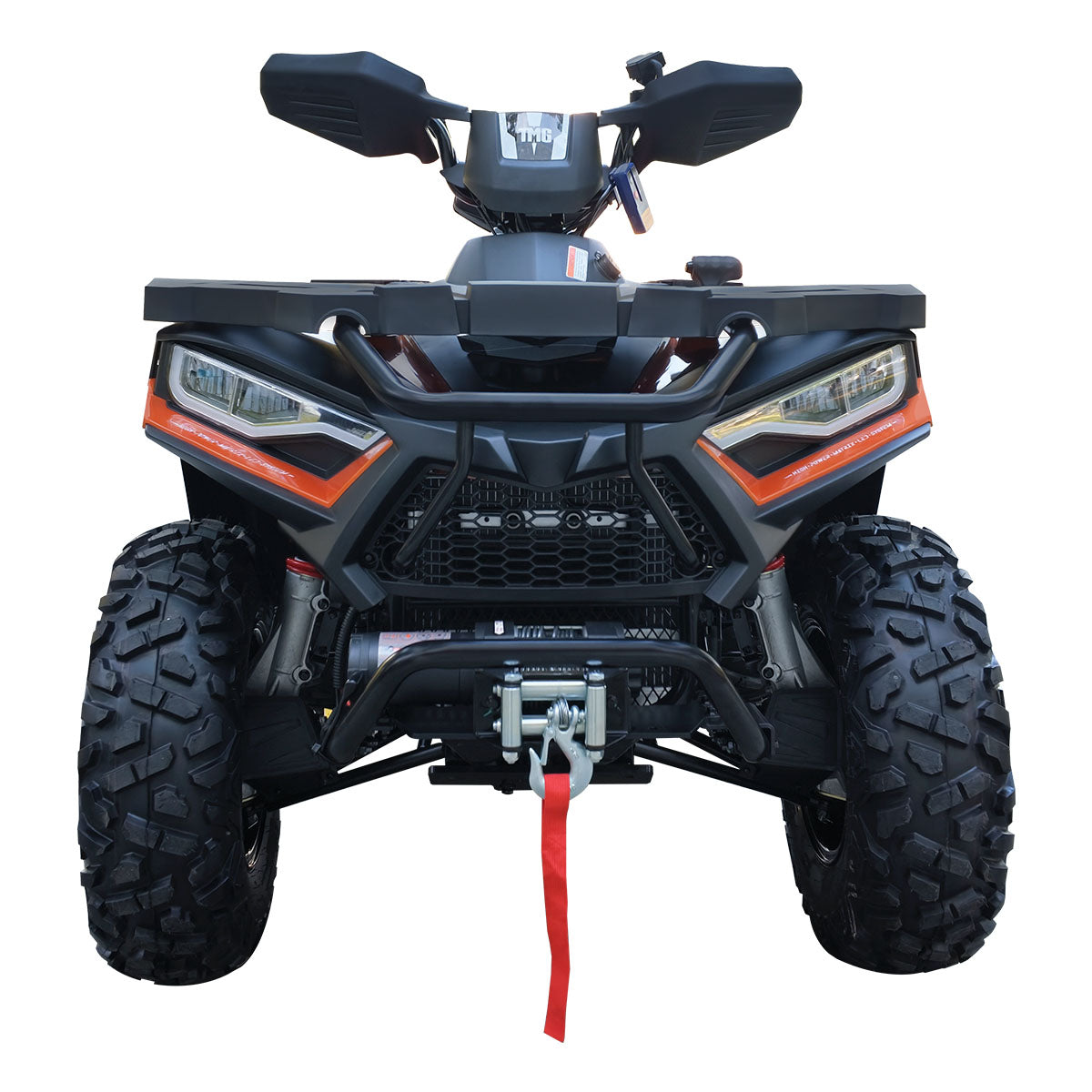

Front view highlighting front cargo rack and winch on ATV. — View 13 / 27

View 14 / 27

Right handlebar grip and handguard detail on TMG ATV. — View 15 / 27

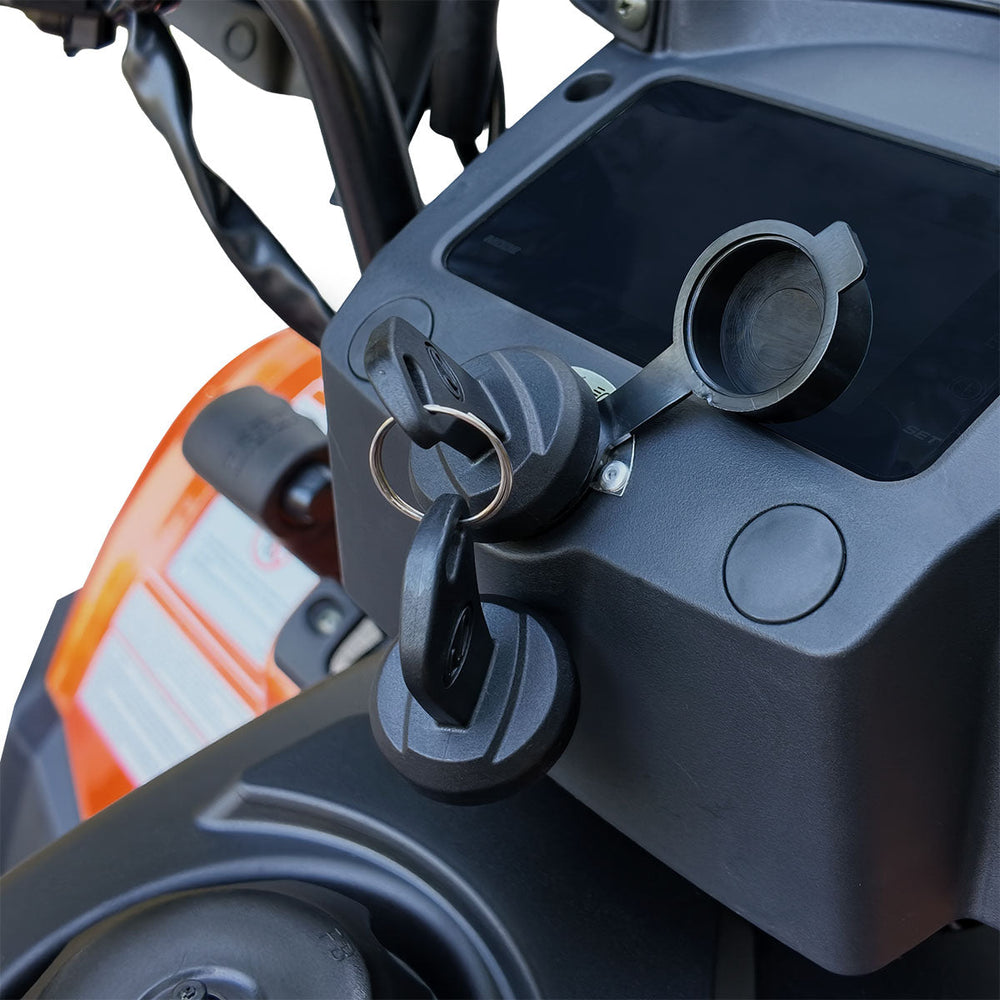

Ignition key and small storage recess on dashboard of ATV. — View 16 / 27

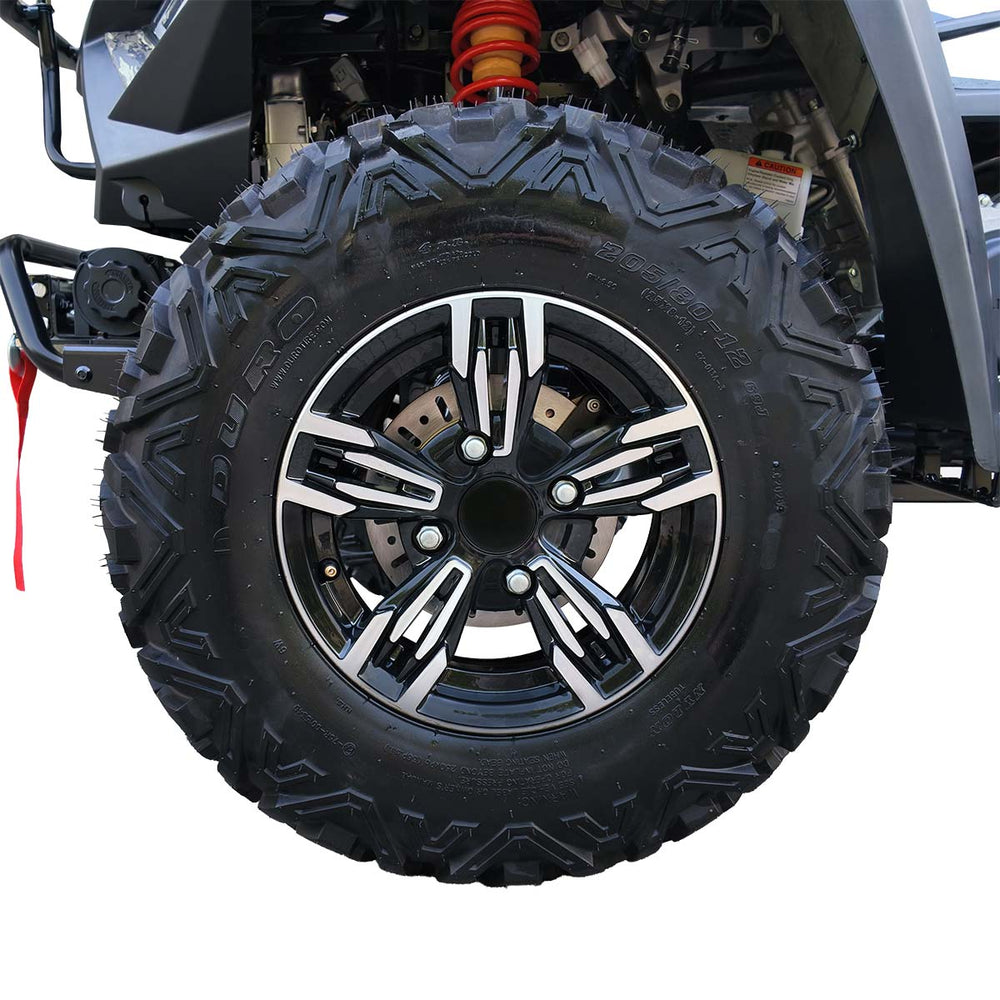

Close-up of black alloy wheel and knobby tire on ATV. — View 17 / 27

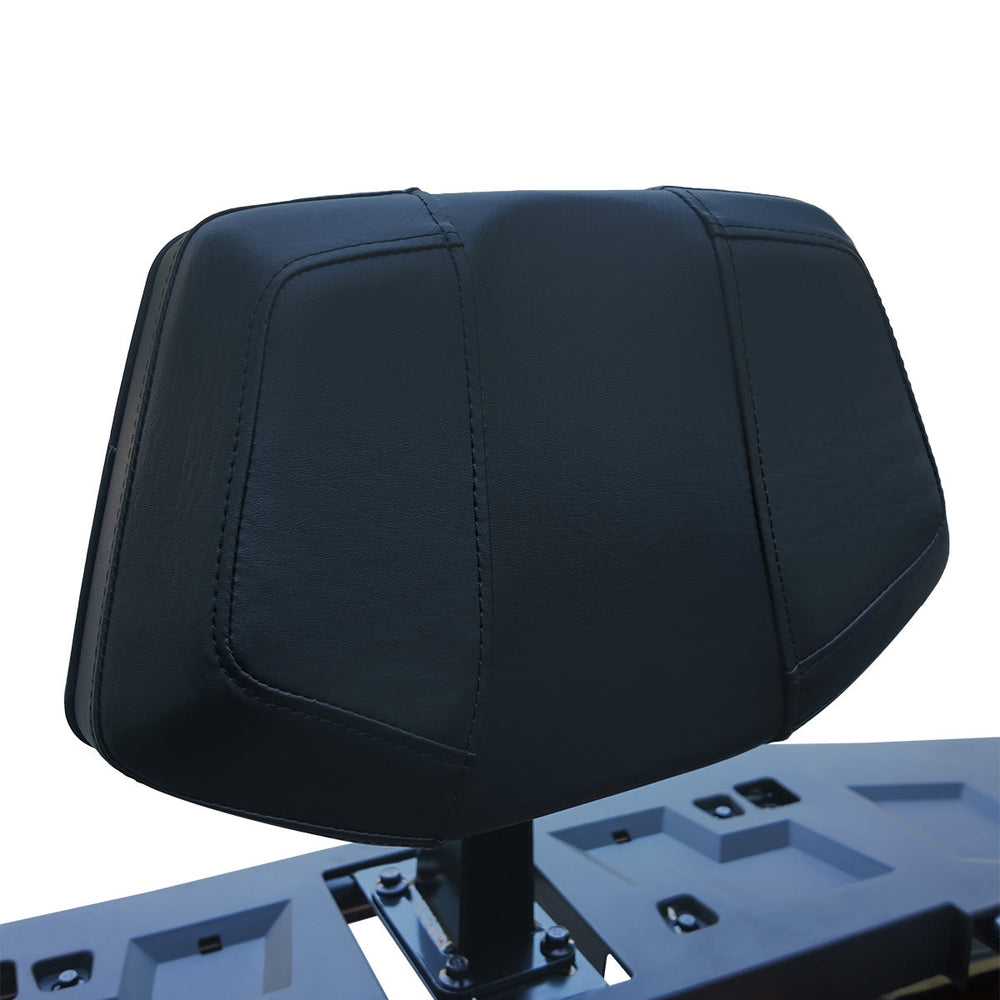

Passenger backrest pad mounted on rear rack of TMG ATV. — View 18 / 27

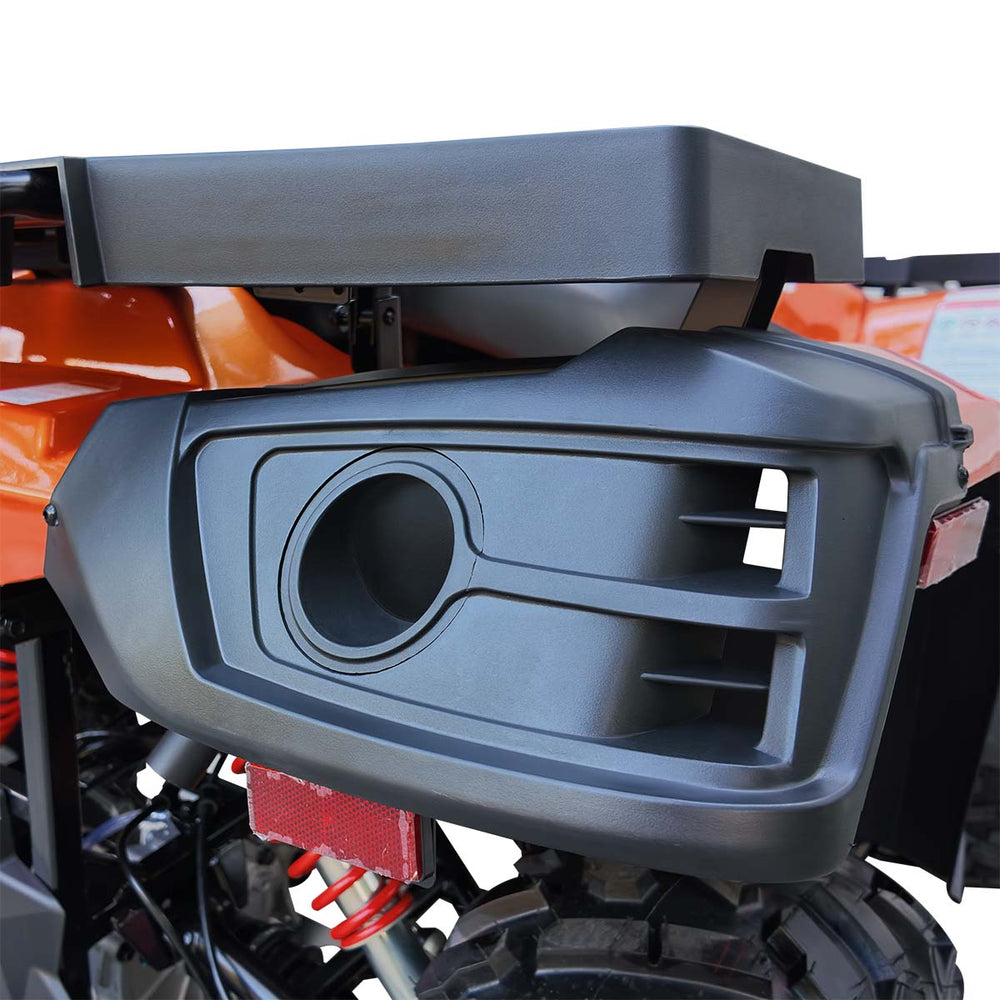

Rear side storage recess and molded panel on orange TMG ATV. — View 19 / 27

Scroll to pan

Technical data

Every number on one screen

Manufacturer specifications for TMG-ATV555E.

Powerful Gas Engine: Smooth and powerful response from the 493cc EFI gasoline engine.
On Demand 4WD Drivetrain: Selectable 2WD / 4WD with front locking differential helps you tackle any terrain.
Standard Trailer Hitch: Standard 2" trailer hitch lets you tow trailers and equipment to get work done.
Heavy Duty 3000 lb Winch: The heavy duty 3000 lb winch helps pull anything you need.
Front and Rear Cargo Racks: Front and rear cargo racks allow you to tie down and transport tools and equipment.

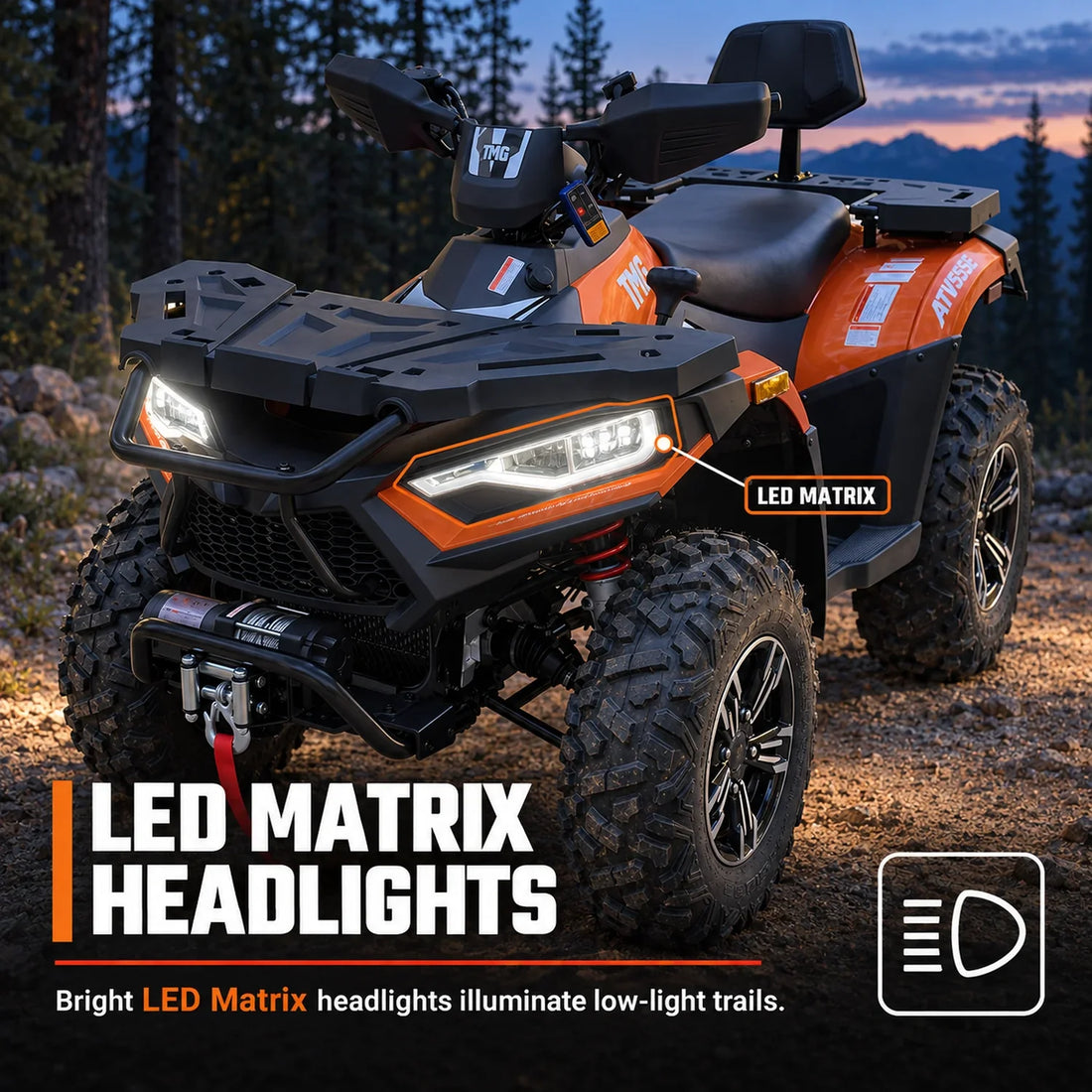

LED Matrix Headlights: The bright LED Matrix headlights help you see the darkest trails.

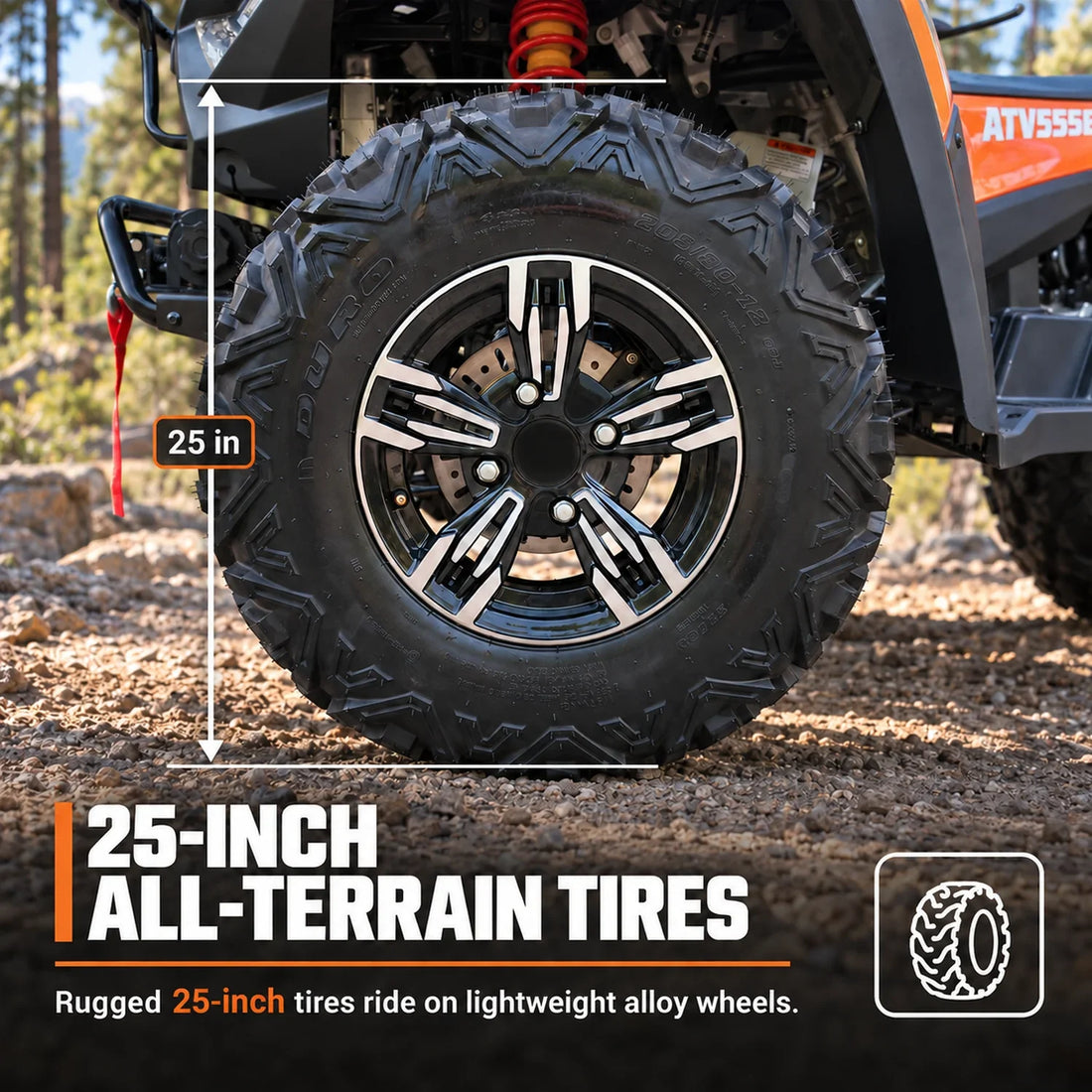

All Terrain Tires 25" All Terrain tires on lightweight alloy wheels keep you confident in all conditions.

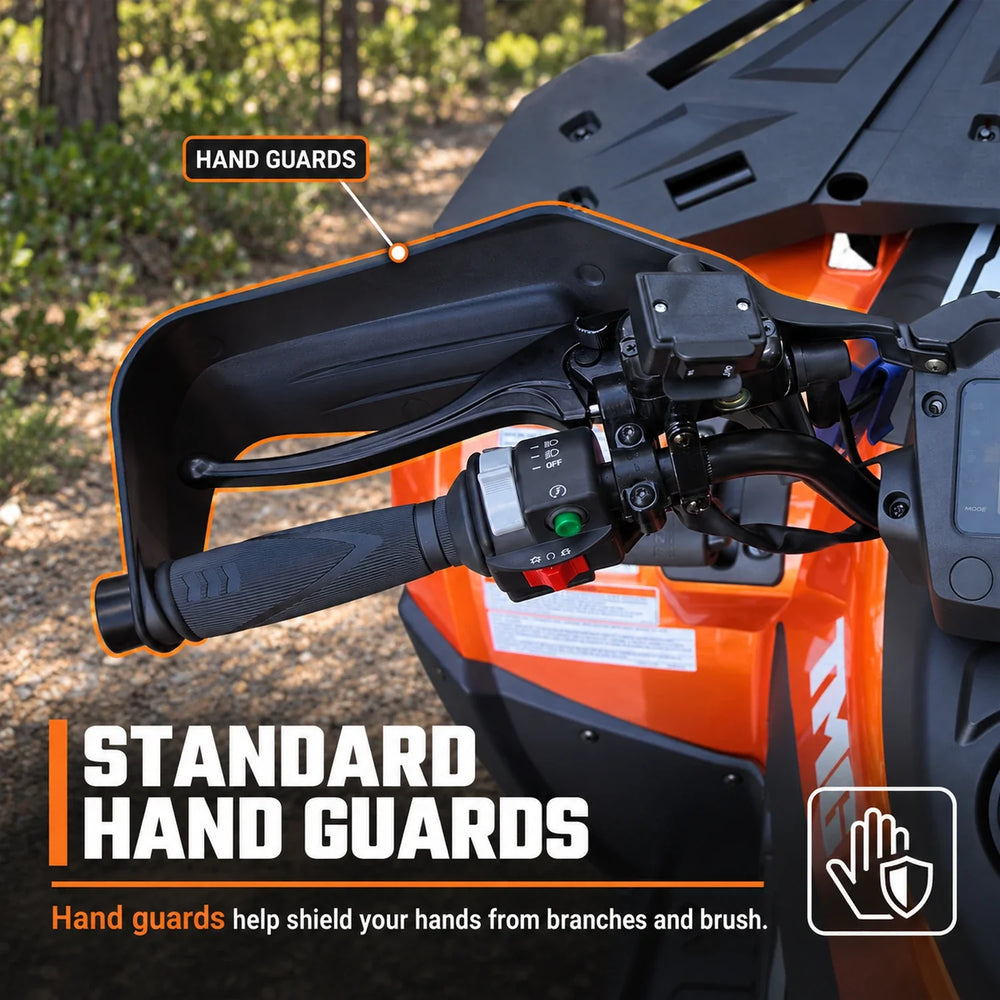

Hand Guards Standard handguards keep you protected from branches and bushes.

Ground clearance: 10 in / 253 mm
Wheels: Alloy
Tires: F: AT25x8–12, R: AT25x10–12
Winch capacity: 3000 lb / 1460 kg
Towing capacity: 441 lb / 200 kg
Dry weight: 783 lb / 355 kg
Length x width x height: 83 x 47 x 50 in / 212 x 119 x 127 cm
Fuel tank capacity: 12.5 L / 3.3 gal

Max speed: 80 km/h / 50 mph
Transmission: CVT with L-H-N-R
Engine model: LH188MR-A
Engine description: Single Cylinder, 4 Stroke, Water Cooled
Horsepower: 33 HP
Engine displacement: 493 cc
Engine certification: EPA
Engine start type: Electric Start
Fuel delivery: Delphi EFI

4WD system: On Demand, Front Locking Differential
Seating: Single Seat with Backrest
Trailer hitch with 2" ball mount: Yes
Headlights: LED
Front & rear cargo racks: Yes

The TMG-ATV555 is an off-road ATV (All-Terrain Vehicle) that can be used to explore, work, and play. The ATV555 is powered by a smooth 33 HP gasoline engine connected to a CVT transmission with Reverse, High, and Low range gearing allows for easy and capable riding all day long. The On-Demand 4WD system and locking front differential can be activated with a single finger allowing you to explore trails you've never seen before.

The ATV555 comes with a standard 2" trailer hitch and tow ball along with practical front and rear cargo racks allowing you to move tools, equipment, and material around with ease. The ATV555 features bright LED headlights, rugged all terrain tires on lightweight alloy wheels, and a backrest to keep you comfortable and secure on every ride. The TMG-ATV555 is ready for trails, jobsites, or just having fun.

Explore the rest of the ATV lineup like the TMG-ATV325 , TMG-ATV575 , or TMG-ATV765 .

* The TMG- ATV555 is for Off Road Use Only *
