40" Side Boom Mower, Hydraulic Reach Arm, Tractor-Mounted, Cat 1, 114" Reach TMG-TAM40
- Richmond Warehouse Sold out
- Mississauga Warehouse Sold out
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store

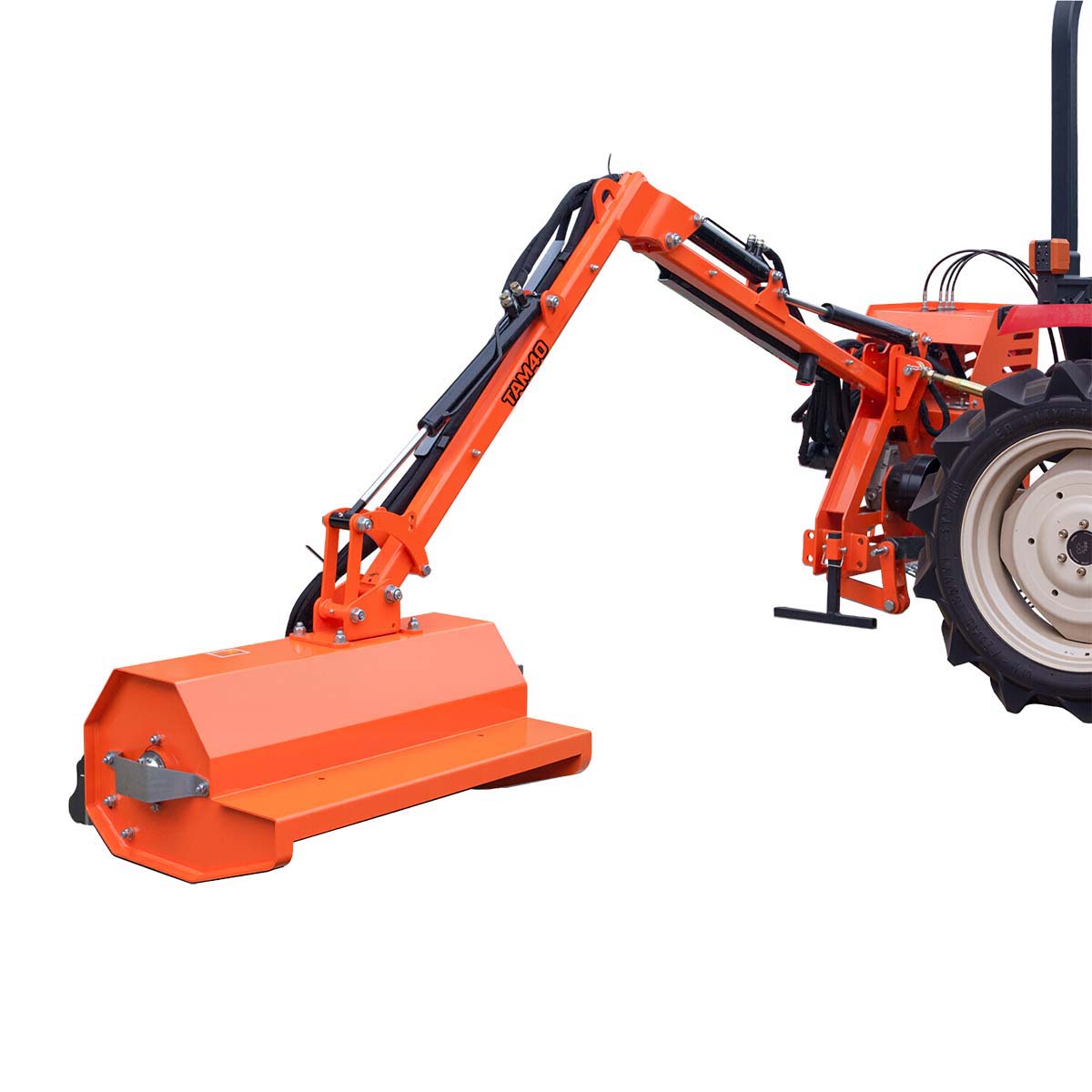

The TMG-TAM40 Side Boom Mower is a versatile tractor-mounted reach mower designed for roadside, ditch, field edge, embankment, hedge, and vegetation maintenance. With a 40" cutting width, 114" maximum reach, and 176° head angle adjustment, it gives operators the flexibility to cut in offset, inclined, vertical, and horizontal positions.
Built for dependable field performance, the TMG-TAM40 features a sturdy arm structure with torsion-resistant profiles and bushed, greasable joints. Its self-contained hydraulic system includes a 17 gal oil tank and oil cooler, helping prevent hydraulic cross contamination between the mower and tractor. A dual hydraulic pump powers the cutting attachment and hydraulic cylinders separately for smoother control and consistent operation.
Equipped with 40 flail blades and designed for 3-point hitch Category 1 tractors, this mower is a practical solution for farms, acreages, municipalities, and property maintenance crews. Whether maintaining road edges, clearing banks, trimming hedges, or managing field borders, the TMG-TAM40 helps improve reach, control, and mowing efficiency.
TMG also carries a similar hydraulic arm mower: TMG-TAM32
- Recommended Tractor HP: 30-55 HP
- PTO Speed: 540 RPM
- Hitch Compatibility: 3-point Category 1
- Working Width: 40" (1000 mm)
- Minimum / Maximum Cutting Height: 7/8" - 3-1/8" (20 - 80 mm)
- Maximum Extension: 114" (2910 mm)
- Maximum Cutting Diameter: 3/8" (10 mm)
- Head Angle: 176°
- Number of Blades: 40 pieces, Y blades
- Maximum Operating Pressure: 2300 PSI / 160 bar
- Hydraulic Pump Rating: 13.2 GPM / 50 LPM
- Gearbox Oil: 17 gal / 655L-HM-46
- Hydraulic System: Self-contained with oil tank and oil cooler
- 30-55 HP Tractor Range: Designed for compact and utility tractors with 540 RPM PTO operation and dependable field performance.
- 3-Point Category 1: Fits 3-point hitch systems for secure tractor mounting, reliable hookup, and versatile field operation.
- 40" Cutting Width: Handles grass, weeds, light brush, roadsides, ditches, field edges, and embankment maintenance.
- 114" Maximum Reach: Cuts beyond the tractor path along banks, fences, hedges, and other hard-to-reach areas.
- 176° Head Adjustment: Positions the mower for offset, inclined, vertical, and horizontal cutting applications with improved flexibility.
- Hydraulic Pump: PTO drives the pump system for independent mower operation. No need tractor hydraulic system.
- Multi-Use Attachment Design: Ability to support other attachments such as mulching heads, hedge trimmers, or branch saws (not included).
