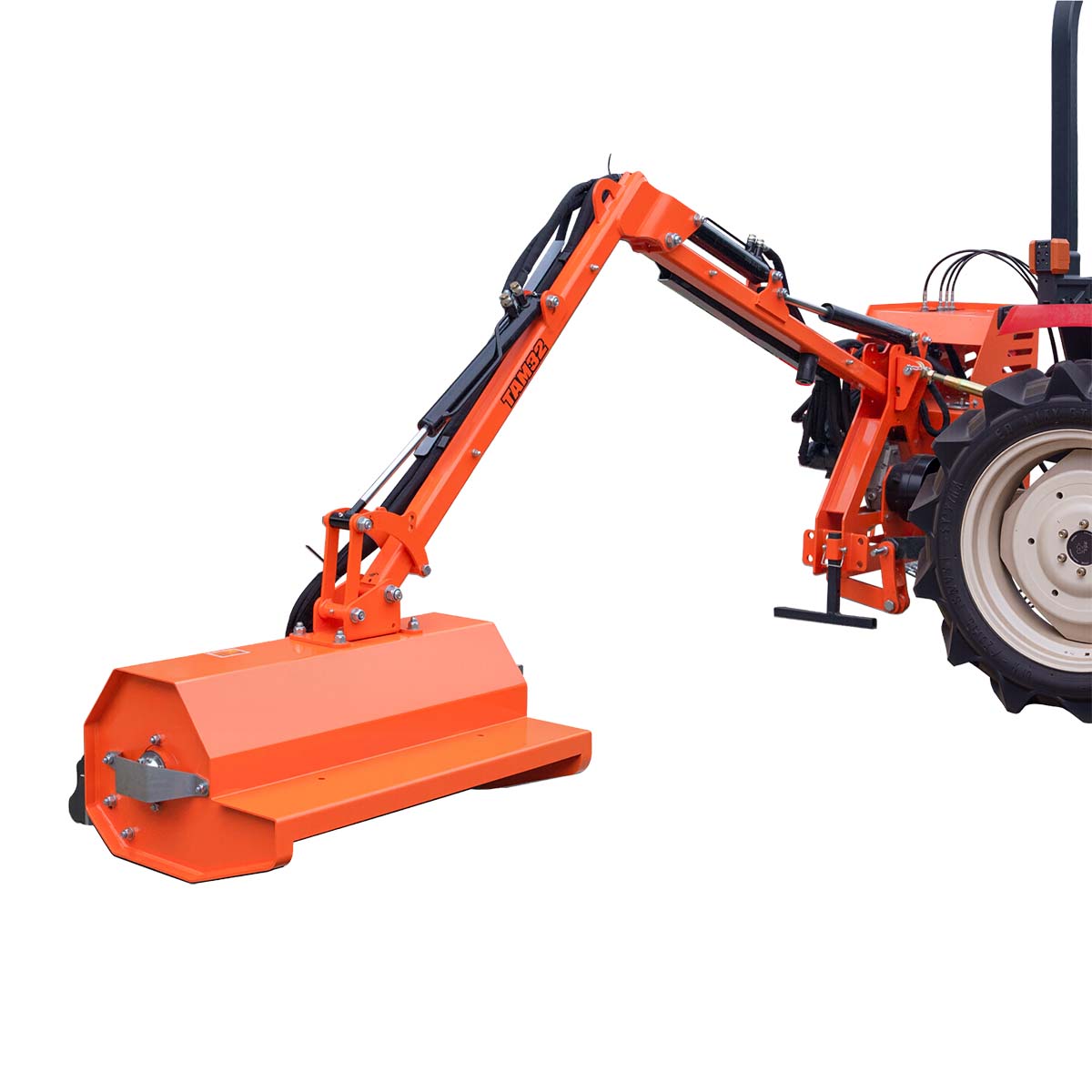

32" Side Boom Mower, Hydraulic Reach Arm, Tractor-Mounted, Cat 1, 108" Reach, TMG-TAM32
- Richmond Warehouse Sold out
- Mississauga Warehouse Sold out
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store
The TMG-TAM32 Side Boom Mower is a compact and versatile tractor-mounted reach mower designed for roadside, ditch, field edge, embankment, hedge, and vegetation maintenance. With a 32" cutting width, 108" maximum reach, and 176° head angle adjustment, it gives operators the flexibility to cut in offset, inclined, vertical, and horizontal positions.
Built for dependable field performance, the TMG-TAM32 features a sturdy arm structure with torsion-resistant profiles and bushed, greaseable joints. Its self-contained hydraulic system includes a 17 gal oil tank and oil cooler, helping prevent hydraulic cross contamination between the mower and tractor. A dual hydraulic pump powers the cutting attachment and hydraulic cylinders separately for smoother control and consistent operation.
Equipped with 32 Y blades and designed for 3-point hitch Category 1 tractors, this mower is a practical solution for farms, acreages, municipalities, and property maintenance crews. Whether maintaining road edges, clearing banks, trimming hedges, or managing field borders, the TMG-TAM32 helps improve reach, control, and mowing efficiency.
TMG also carries a similar hydraulic arm mower: TMG-TAM40
- Recommended tractor HP: 20-50 HP
- PTO speed: 540 RPM
- Hitch compatibility: 3-Point Category 1
- Working width: 32" (800 mm)
- Minimum / maximum cutting height: 7/8" - 3"-1/8" (22 - 80 mm)
- Maximum ground-level horizontal reach: 108" (2755 mm)
- Maximum vertical reach: 72" (1830 mm)
- Maximum cutting diameter: 3/8" (10 mm)
- Head angle: 176°
- Number of blades: 32 pieces, Y blades
- Maximum operating pressure: 2300 PSI / 160 bar
- Hydraulic pump rating: 13.2 GPM / 50 LPM
- Gearbox oil: 17 gal / 65 L SAE 90 EP
- Hydraulic system: Self-contained with oil tank and oil cooler
- 20-50 HP Tractor Range: Designed for compact and utility tractors with 540 RPM PTO operation and dependable field performance.
- 3-Point Category 1: Fits 3-point hitch systems for secure tractor mounting, reliable hookup, and versatile field operation.
- 32" Cutting Width: Handles grass, weeds, light brush, roadsides, ditches, field edges, and embankment maintenance.
- 108" Maximum Reach: Cuts beyond the tractor path along banks, fences, hedges, and other hard-to-reach areas.
- 176° Head Adjustment: Positions the mower for offset, inclined, vertical, and horizontal cutting applications with improved flexibility.
- PTO-Driven Hydraulics: Tractor PTO powers the mower’s separate hydraulic system, operating independently from the tractor hydraulics.
- Multi-Use Attachment Design: Can use other attachments such as mulching heads, hedge trimmers, or branch saws (not included).
