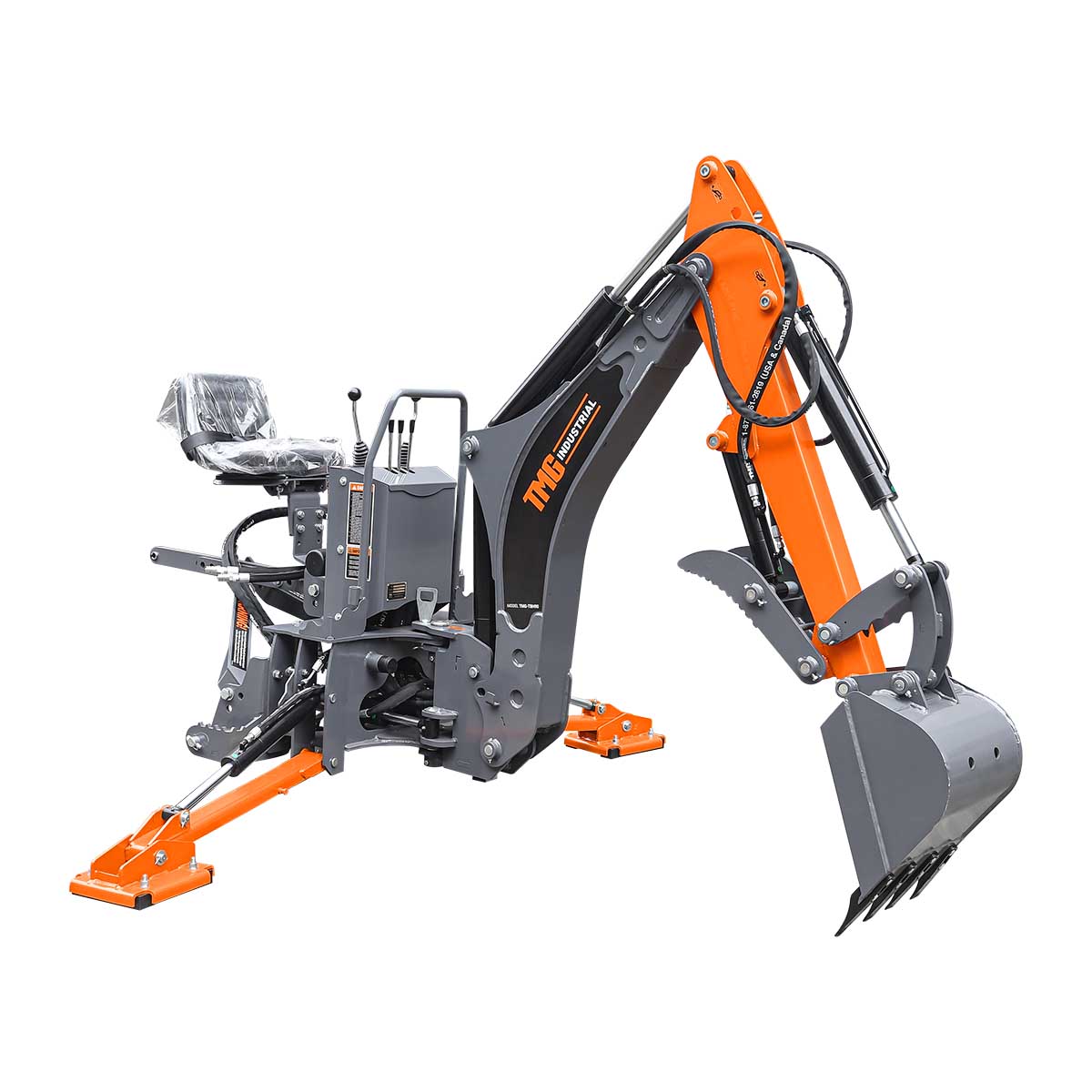

9 FT 3-Point Swing Backhoe Attachment, 15" Bucket with Hydraulic Thumb, 180° Boom and Bucket Rotation, TMG-TBH90H

The TMG-TBH90H 9-ft Tractor Swing Backhoe Attachment is engineered for versatile excavation projects, offering extended reach and a 180° boom swing to access challenging areas without constant repositioning. It is compatible with 45–100 HP tractors and includes a standard 15" digging bucket, ideal for tasks like digging trenches, installing irrigation systems, and landscaping. This unit now features an integrated hydraulic thumb for the bucket, enabling operators to grab, lift, and precisely place objects and debris.

Power and control focused, this backhoe features Italian Hydro Control valves that skillfully optimize hydraulic pressure distribution, ensuring precise timing and superior performance. Its dual hydraulic cylinder arm and robust bucket linkage are well-gusseted to handle high breakout forces and impressive burrowing power, allowing for a full 180° bucket rotation. Furthermore, the 3-point hitch connection to your tractor eliminates the need for a dedicated, separate excavating machine.

Designed for durability and simple operation, maintenance is streamlined with replaceable bushings, bolt-on cast teeth, and accessible grease fittings on all major pivot points. The stabilizer legs include removable rubber street pads to protect and cushion sensitive surfaces like lawns, blacktop, and concrete. For tractors lacking an auxiliary hydraulic system, an optional external self-contained hydraulic pump is available (sold separately) to ensure efficient energy transmission and maximize digging force.

TMG Industrial also carries several tractor backhoes without hydraulic thumb option: TMG-TBH72, TMG-TBH84, TMG-TBH88, and TMG-TBH90.

• Recommended Tractor Horsepower: 45-100 HP
• Tractor Hookup: 3-Point Hitch, Category 1 & Category 2
• Hydraulic Volume Requirements: 5-7 GPM
• Flow Divider Included: Yes
• Operating Pressure: 2320 PSI
• Hydraulic Thumb: Included
• Digging Depth (2 ft. flat bottom): 9'6"
• Overall Operating Height (fully raised): 125"
• Reach from Swing Post: 129"
• Loading Height (bucket at 60° rotation): 84"
• Dipper Boom Digging Force: 2200 lb
• Bucket Digging Force: 3300 lb
• Transport Height (with boom fully retracted): 80"
• Transport Width (with stabilizers up): 58"
• Transport Length: 72"
• Ground Clearance: 10"-12"
• Bucket Size: 15"
• Bucket Rotation: 180°
• Swing Arc: 180°
• Stabilizer Width (spread): 89"
• Stabilizer Width (transport): 58"
• Transport Weight (base unit only-no bucket or mounts): 870 lb
• Self-contained gear pump (TMG-TBH90-J): sold separately

• Digging & Reach: 9'6" digging depth with 180° boom swing allows working in all directions to challenging, hard-to-reach job sites.
• Precise Hydraulic Control: Italian Hydro Control valves optimize hydraulic pressure, delivering precise timing and performance for maximum control and power.
• Tractor Hookup: Connects easily using the 3-point hitch, fitting Category 1 & 2 setups and 45–100 HP tractors for various digging and landscaping work.
• Bucket with Hydraulic Thumb: A 15" digging bucket combined with a hydraulic thumb allows operators to grab, move, and precisely place objects or debris.
• High Durability Structure: Dual hydraulic cylinders and gusseted linkage withstand high breakout forces, ensuring superior burrowing power and long life.
• Simple Maintenance: Maintenance is simple with replaceable bushings, bolt-on cast teeth, and accessible grease fittings on all pivot points.
• Surface Protection: Stabilizer legs are fitted with removable rubber street pads to cushion the ground and prevent damage to surfaces.
