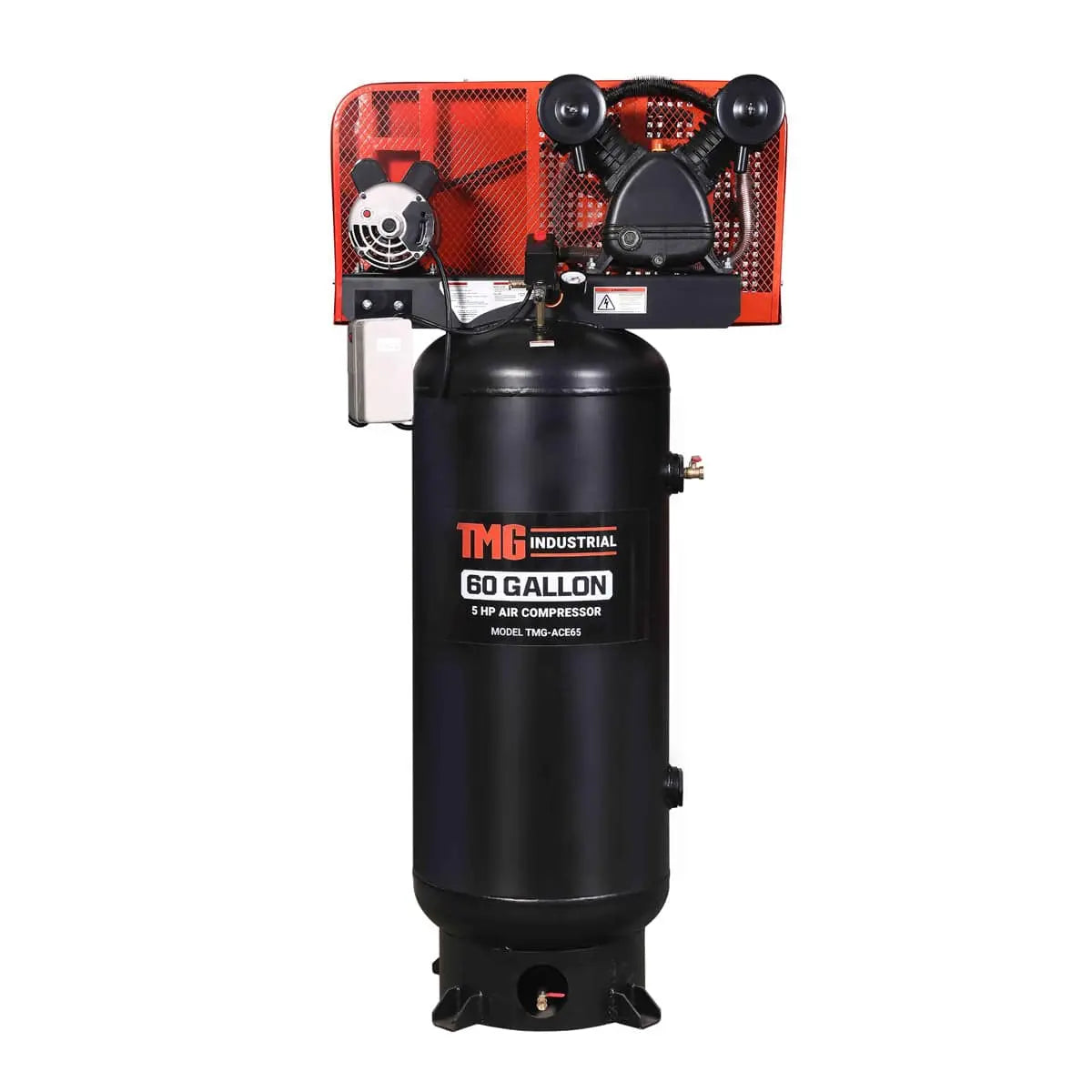

60 Gallon 5 HP Stationary Electric Air Compressor, 5 Min Fill Time, 230V Induction Motor, Single Stage, TMG-ACE65
- Richmond Warehouse 5 in stock
- Mississauga Warehouse 2 in stock
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store
The TMG-ACE65 5 HP Stationary Electric Air Compressor is equipped with a 60 gallon air tank and operated by a CSA approved, double cast iron, oil-lubricated motor that houses a one-piece cast iron crankcase and full cast iron cylinder body. Excellent piece of equipment to power hoses and tools around an automotive shop, manufacturing warehouse or repair garage.
¼" and ½" quick connectors enable operators to use two tools at the same time, with an air outlet port for simple, rust-protective draining. This compressor is powered by a single phase heavy-duty 230V induction motor with a top operating speed of 3450 RPM so you never experience a drop in power.
Designed with a finned tube intercooler that offers maximum cooling action to prolong valve life, eliminate carbon buildup and contribute to better output and performance overall. Built to last in tough industrial settings long-term.
TMG Industrial also carries other air compressors: TMG-ACE10, TMG-ACE25, TMG-ACE60, TMG-ACE80, TMG-ACE85
- Electric motor: AC230V/60hz, single phase, 5HP
- Induction motor speed: 3450 RPM
- Compression: single stage
- Maximum working pressure: 145 PSI
- 14.4 CFM at 40 PSI
- 12.4 CFM at 90 PSI
- Air tank size: 60 gal vertical tank
- Tank fill time: <5 minutes
- Noise level: 80 dB
- (1) ¼” NPT quick connector
- (1) ½” NPT valve
- Excellent piece of equipment to power hoses and tools like sanders, sprayers, nail guns and more around an automotive garage, warehouse or machine shop
- Equipped with a 60 gallon air tank that is filled by a single phase heavy-duty 230V induction motor that has a top operating speed of 3450 RPM
- CSA-approved,5 HP, double cast iron, oil-lubricated motor that has a one-piece cast iron crankcase and full body cast iron cylinder body
- 145 max. PSI air pressure for optimum tool performance
- 1/4” and 1/2” NPT connectors for simultaneous multiple tool use and air output ports for manual draining to protect against rust and corrosion
- Durable cast iron oil-lubricated pump has one-piece cast iron crankcase and full cast iron cylinder body
- Finned tube intercooler for maximum cooling and increased valve life
