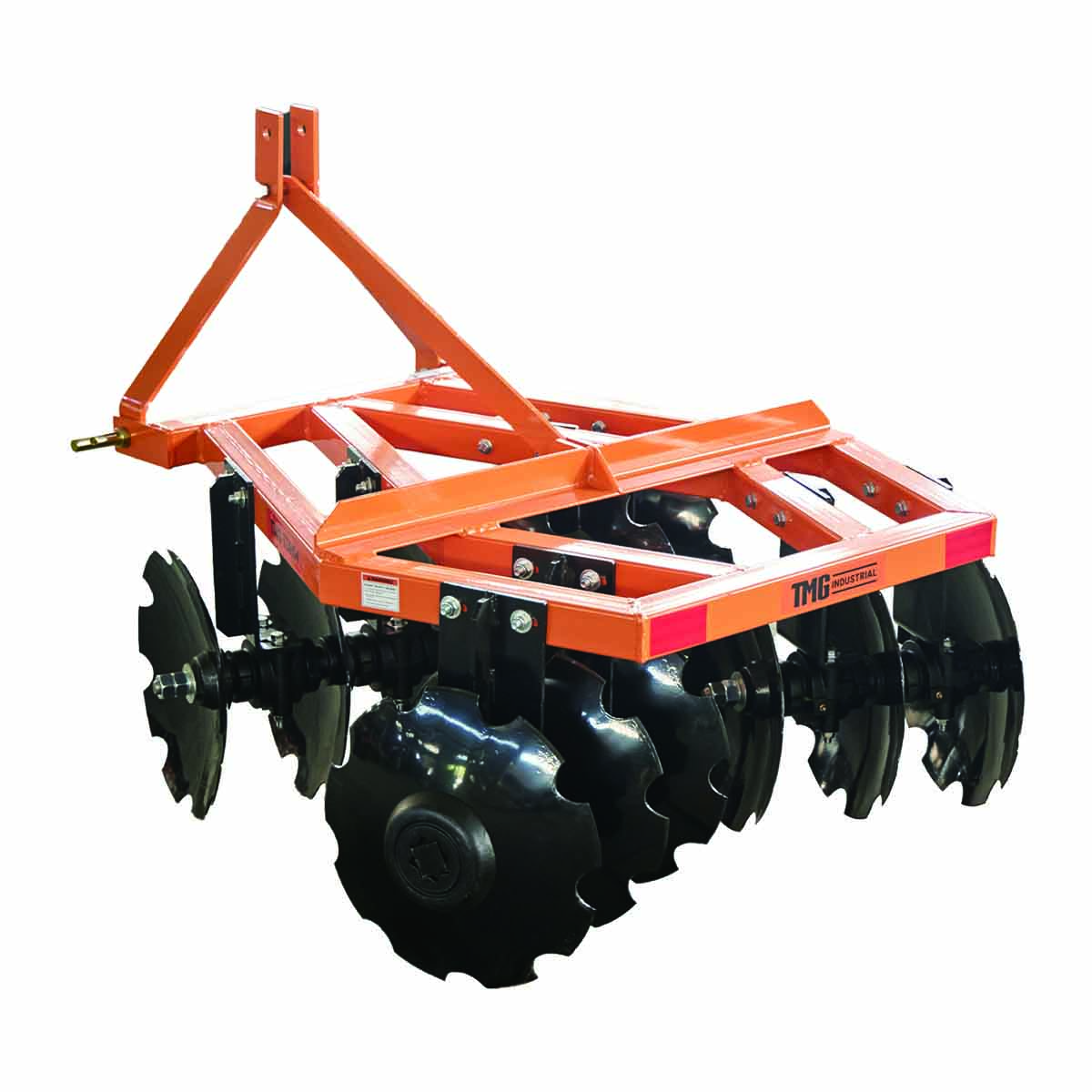

48" Notched Disc Harrow, 3-Point Hitch, Cat 1 Hook-up, 20-30 HP Tractors, TMG-TDH04

The TMG-TDH04 Notched Disc Harrow is the perfect tool for efficient and effective soil preparation. Designed for 3-point hitch Cat 1 tractors with 20-30 HP, it offers a 48" cutting width and (12) 16" notched discs.

Each disc is made from durable alloy steel, heat-treated and powder-coated for long-term durability and performance. With a robust steel tube frame, this harrow is also built to resist rust and corrosion.

Its fixed 22° cutting angle and “X" shaped gang axles ensure deep and thorough soil cultivation, making it ideal for preparing small food plots for composting and planting.

• Product overall size: 46” x 48” x 42” (L x W x H)
• Product net weight: 418 lb
• Required horsepower: 20-30 HP
• Hitch type: Standard 3-PT, Category 1
• Cutting width: 48”
• Fixed cutting angle: 22°
• Cutting depth: 5”-7”
• Frame material: 2-½” x 2-½” x ⅛” square tube steel
• Square gang axle size: 18-¼” x 1” x 1” x 4pcs
• Notched blades material: 65Mn hard alloy steel
• Notched blades size: 16” x 3 mm/11 ga (dia. x thickness)
• Notched blades quantity: 3 blades per gang, total 12 blades for 4 gangs
• Disc blade spacing: 7-½”

• Versatile design allows it to fit most 3-Point Category 1 tractors with 20-30 HP
• Equipped with (12) 16” notched discs made from heat-treated 65Mn alloy steel
• Constructed with a durable, powder-coated steel tube frame to prevent rust and corrosion
• Fixed 22° cutting angle with “X” shaped gang axles for aggressive soil penetration
• Sealed cast iron caps and 8 greaseable spools for seamless rotation of the harrow discs
