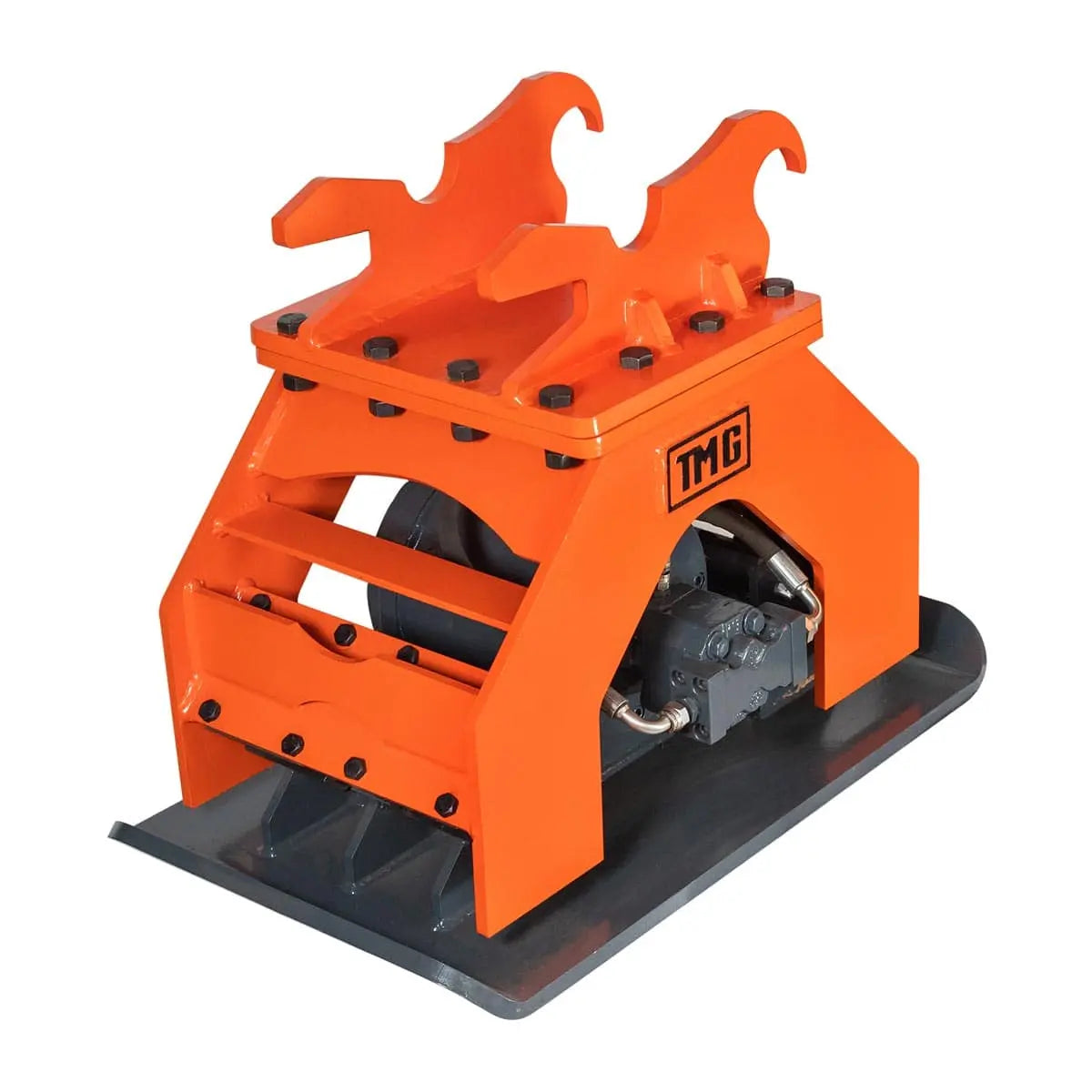

11,000-lb Hydraulic Plate Compactor for 4-7 Ton Mini Excavators – 39" Compaction Capacity TMG-ECP41

The TMG-ECP41 is a powerhouse capable of compacting soils, gravels and sands for projects needing stable, solid grounds to work and build on. Any sort of bituminous or granular materials are simply no match for the 11000 lbf of impulse force and effective compaction depth up to 39". The ideal solution for construction sites, roads, foundations and any other tight footing and road preparatory needs.

Compatible with 4 to 7 ton carriers and fitted with an easy to use quick change lugging design that keeps workflow running smoothly and efficiently. Motor is housed in a heavy-duty steel frame that is semi-open to allow for easy maintenance while still providing superior protection of its vital components. Included high pressure hydraulic hoses offer a simple hookup and disconnect as well as efficient energy transfer from your excavator to the compactor.

Eccentric weight vibration has been engineered for optimal soil compaction that translates to an 85% compaction density at 30" depth. Industrial grade rubber cushion isolates reverberations from reaching the boom, motor and bearings of the carrier ensuring minimal wear and tear and maximum force into the ground. An overload valve shutoff keeps the motor within its working range to prevent damage and extend the compactors lifespan.

• Impulse force: 11,000 lbf
• Exciter frequency: 2000 RPM
• Hydraulic flow: 12-20 GPM
• Pressure: 1450-1885 PSI
• Bottom plate: 35” x 21”
• Carrier weight: 8,800 -15,400 lb, 4-7 ton
• Soil compaction effective depth: 28”–39”
• Compaction density: 85% at 30”
• (2) ½” NPT thread high-pressure hydraulic hoses included

• Compatible with 4 to 7 ton carriers and equipped with an easy to use quick change design system that maintains workflow between job types
• Motor is housed in a heavy gauge steel, semi-open box frame that provides easy maintenance access and overall motor protection
• Eccentric weight vibration engineered for optimal soil compaction that translates to an 85% compaction density at 30” depth
• Industrial grade rubber cushion isolates vibrations from being extended to the boom, motor and bearings of your carrier
• Overload valve shutoff enables the motor to operate within its range capacity and maximize its working ability over time
• Fully sealed motor and bearings keep moisture, dust, dirt, rocks and other debris out when using in harsh working environments
• 11000 lbf of impulsive force created through almost 1900 PSI and 20 GPM hydraulic flow offer a potential compaction depth of 28”-39”
