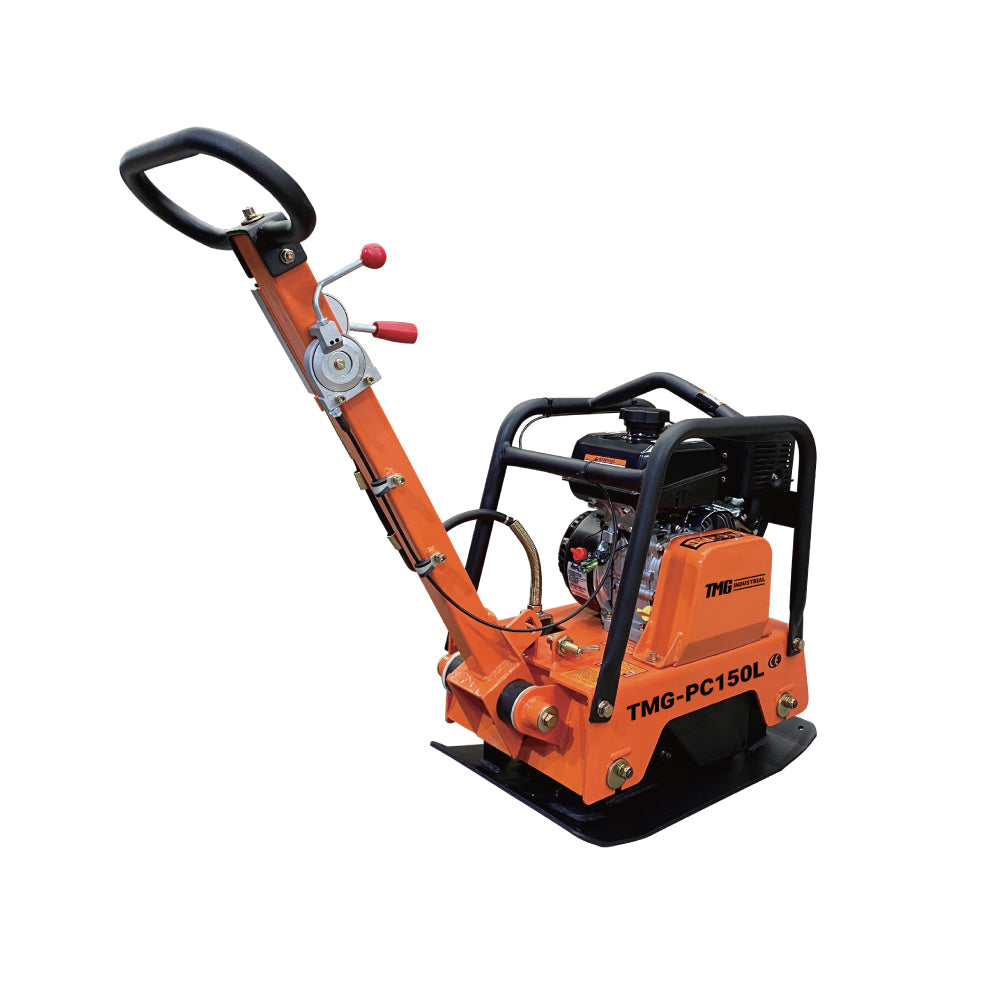

5600-lb Reversible Vibratory Plate Compactor, 6.5 HP Engine, TMG-PC150L
- Richmond Warehouse Sold out
- Mississauga Warehouse Sold out
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store
The TMG-PC150L Reversible Vibratory Plate Compactor is built for commercial and residential groundwork where a firm, stable base is essential. Its medium-duty design provides strong compaction while remaining manoeuvrable enough for confined work areas.
Hydraulic forward and reverse travel gives the operator smooth directional control, and the machine's self-propelling action helps it move steadily across the surface. The tapered base plate is designed to reduce dirt and rock buildup during operation. Rubber shock mounts help limit vibration for more comfortable handling, while the 6.5 HP gasoline engine supplies dependable power across soil, aggregate and paving applications.
With reliable performance and straightforward operation, the TMG-PC150L is a practical choice for site preparation and general compaction work. It gives professionals and property owners a durable, versatile machine for producing clean, consistent results and creating stable surfaces ready for the next stage of the project across a wide range of demanding jobs.
TMG also carries plate compactors with different compaction capacities: TMG-PC60 and TMG-PC90.
- Compaction force: 5600 lb (2540 kg)
- Compaction plate size: 25" x 16" (635 x 406.4 mm)
- Travel speed: 65 ft/min (19.8 m/min)
- Work capacity: 3900 sq-ft/hour (362 m²/hour)
- Vibration frequency: 4300 VPM
- Compaction depth: 12" (304.8 mm)
- Maximum inclination angle: 15°
- Overall dimensions: 67" x 24" x 57" (L x W x H)
- Operating weight: 270 lb (122.5 kg)
Engine Specifications
- Engine: Loncin G200F
- Horsepower: 6.5 HP
- Engine type: Air-cooled, 4-stroke, OHV, single-cylinder
- Displacement: 196 cc
- Strong Compaction: Delivers 5,600 lb of force and up to 12" compaction depth across demanding soil, aggregate and paving applications.
- Tapered Base Plate: Its self-cleaning shape helps reduce dirt and rock buildup, keeping the plate cleaner during demanding compaction work.
- Reduced Operator Vibration: Rubber shock mounts help limit vibration at the handle, improving comfort and control during longer compaction jobs.
- 6.5 HP Gas Engine: Supplies dependable power for repeated commercial and residential compaction work, with straightforward pull-start operation and controls.
