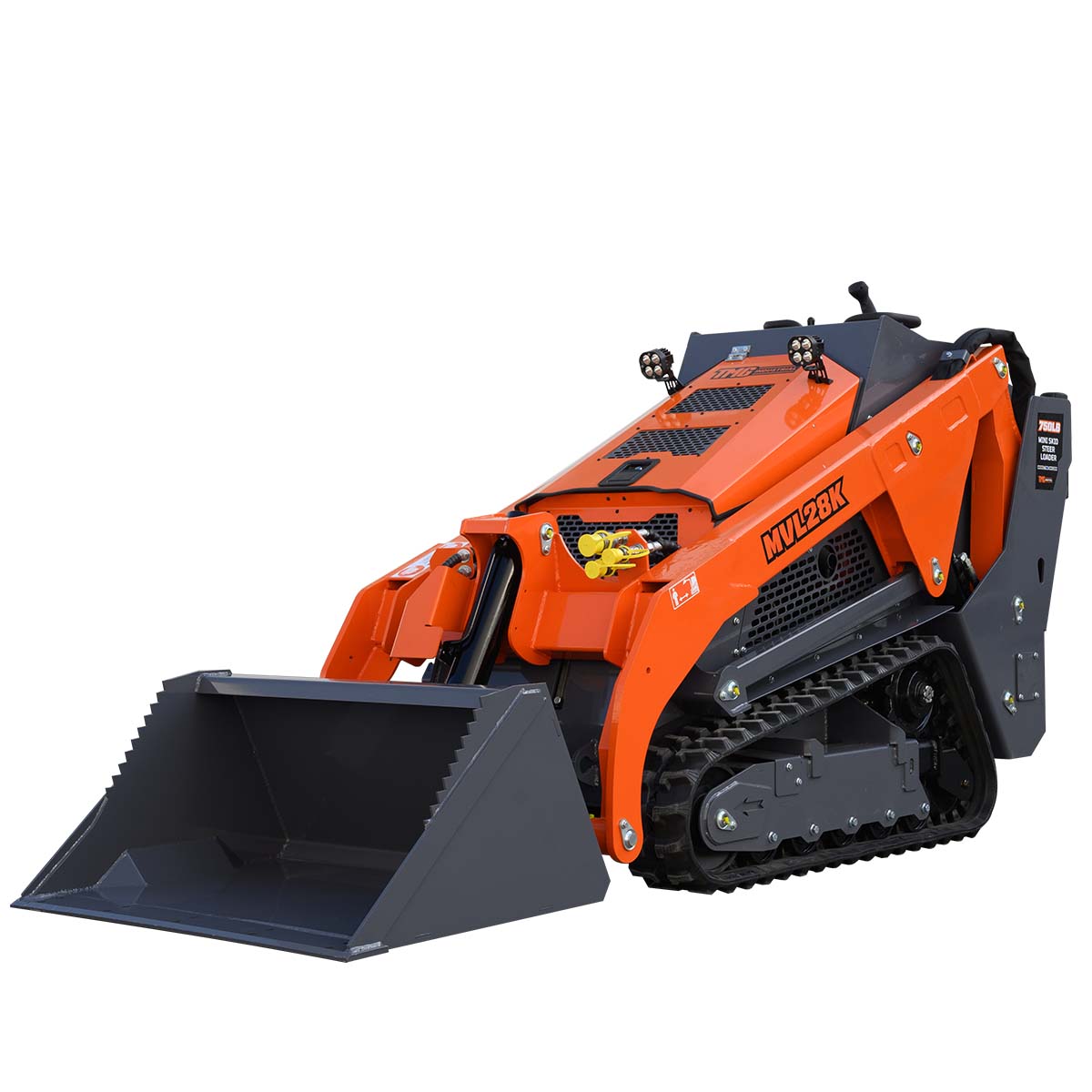

Mini Skid Steer Loader, 24.6HP Kubota Diesel Engine, 750lb Lift Capacity, 112in Lift Height with 44in Front Bucket, TMG-MVL28K

The TMG-MVL28K Mini Skid Steer Loader is a versatile powerhouse designed to deliver heavy-duty performance in tight spaces. Powered by a 24.6 HP Kubota D1105 liquid-cooled diesel engine, this machine offers the reliability and fuel efficiency needed for demanding commercial and residential projects. Its compact footprint allows it to navigate narrow passages while maintaining the strength to handle significant earthmoving and lifting tasks.

At the core of its productivity is a robust hydraulic system featuring independent left/right track drive, providing operators with precise control and exceptional maneuverability across various terrains. The 44-inch wide front bucket with a 7-cubic-foot capacity helps move more material in fewer trips, while the 112-inch maximum lift height makes loading high-sided trucks and trailers effortless.

Beyond standard dirt work, the TMG-MVL28K is a multi-tool for any scenario. Equipped with quick-connect hydraulic connectors, it seamlessly integrates with dozens of optional attachments, transforming from a loader to a trencher, auger, or sweeper in minutes. Whether you are a professional landscaper, managing a farm, or working in construction, this skid steer offers the stability of rubber tracks and the muscle of a 750-lb lifting capacity to get the job done right.

Capacity & Operation Range:

• Lift capacity: 750 lbs / 340 kg
• Maximum gradeability: 30°
• Track ground pressure: 3.48 psi / 24 kPa
• Drive speed: 0–2.8 mph / 0–4.5 km/h
• Maximum lift height: 112 in / 2852 mm
• Hinge pin height: 92.5 in / 2350 mm
• Reach (fully raised): 37.4 in / 950 mm
• Ground clearance: 3.07 in / 78 mm
• Minimum turning radius: 69.3 in / 1760 mm
• Width between tracks: 38.6 in / 980 mm
• Weight: 3307 lbs / 1500 kg

Engine Specifications:

• Model: Kubota D1105 (3-Cylinder)
• Horsepower: 24.6 HP
• Displacement: 1123 cc / 1.1 L
• Bore x Stroke: 78.0 x 78.4 mm (3.07 x 3.09 in)
• Maximum speed: 3000 RPM
• Maximum torque: 68.3 N.m / 50.3 ft-lbs @ 2000 RPM
• Fuel capacity: 5.3 gal / 20 L
• Engine oil capacity: 5.4 qt / 5.1 L

Hydraulic System:

• Hydraulic pressure: 2610 psi
• Hydraulic tank capacity: 5.8 gal / 22 L
• Auxiliary standard flow: 8.7–12.7 gpm / 33–48 L/min
• Braking: Hydraulic braking system

Front Bucket & Dimensions:

• Bucket width: 44 in / 1118 mm
• Bucket capacity: 7.06 cu ft / 0.2 m³
• Overall dimensions: 118 x 39.4 x 60.2 in / 3000 x 1000 x 1530 mm

• Kubota Diesel Power: Features a high-performance 24.6 HP Kubota Diesel engine, offering exceptional reliability, fuel efficiency, and longevity for daily use.
• Lifting Capacity: Delivers a strong 750-lb lifting capacity and a 112-inch maximum lift height to handle heavy loading tasks with ease.
• Large Front Bucket: The 44-inch wide front bucket holds 7 cubic feet of material, significantly increasing job site productivity and efficiency.
• Hydraulic Versatility: Integrated quick-connect hydraulic connectors allow for fast, easy switching between compatible attachments for diverse applications.
• Intuitive Drive System: The simple-to-operate hydraulic drive features independent track controls, providing maneuverability and precision in confined work areas.
• Stable Rubber Tracks: Designed with durable rubber tracks that are gentle on finished landscaping while providing stability on slippery surfaces.
• Multi-Job Compatibility: Engineered to function with a wide range of attachments, making this machine an ideal solution for various industries.
