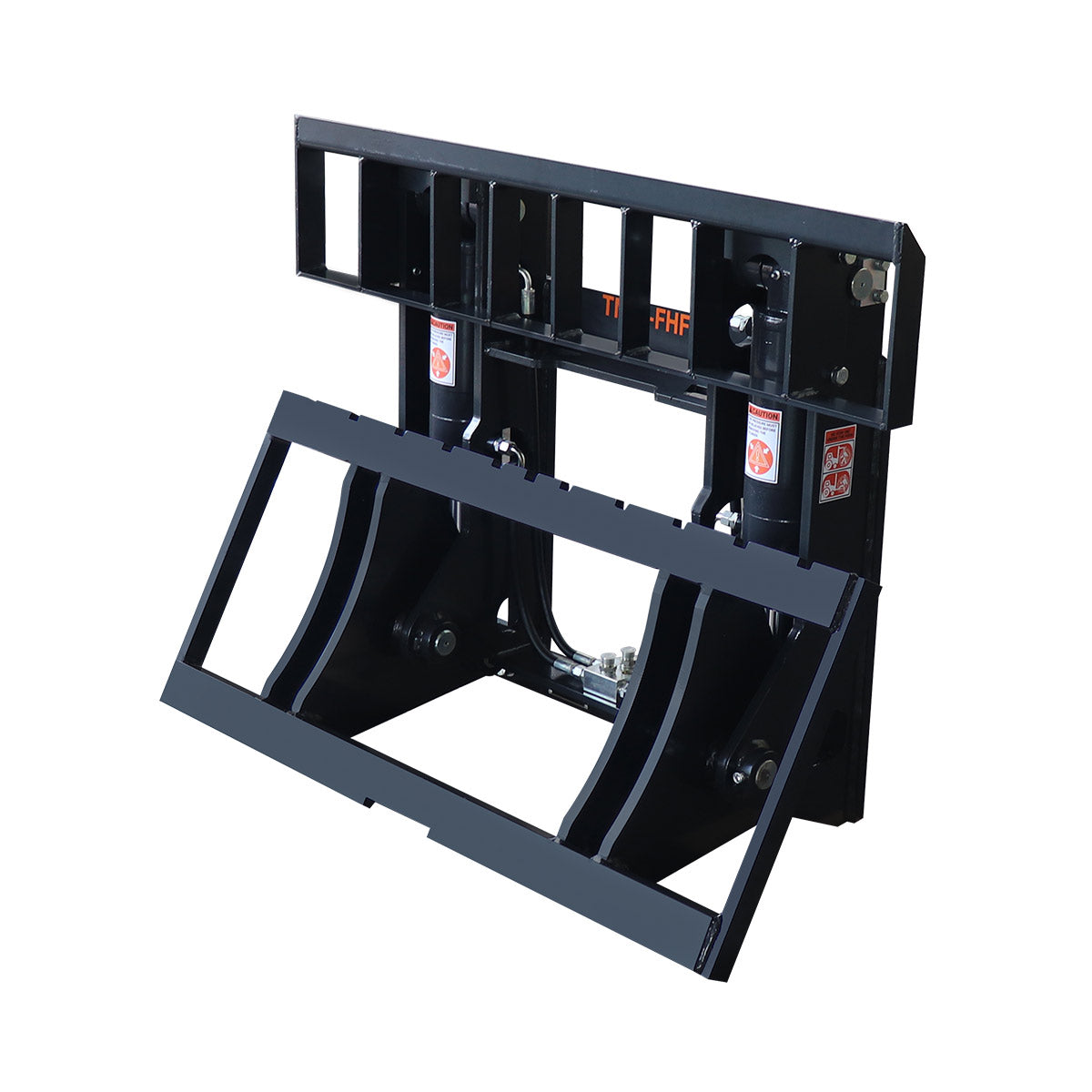

Forklift Tilt Carriage Attachment, Class III Mount, 35° Up Tilt and 51° Down Tilt, 6600 Lb Capacity, TMG-FHF30

The TMG-FHF30 Power Tilt Carriage Attachment is a hydraulic forklift attachment designed to improve dumping, tipping, and unloading efficiency. Designed for Class II forklift carriage mounting, it is built with heavy-duty steel construction for reliable durability and long-lasting performance in demanding material handling environments.

With a rated capacity of 6600 lb, this attachment provides controlled tilt movement for emptying boxes, bins, hoppers, skips, and non-tiltable containers. The 35° up tilt and 51° down tilt range helps operators unload bulk materials such as sand, gravel, scrap metal, grain, and industrial parts with better control.

The TMG-FHF30 helps transform a standard forklift into a more versatile dumping machine for warehouses, recycling plants, agricultural facilities, foundries, yards, and industrial work environments. Its controlled tilting function also improves pouring accuracy when unloading materials into smaller receivers or specific drop-off areas.

TMG Industrial also carries a similar model of the tile carriage attachment: TMG-FHF20.

• Installation Grade: Class III Mount
• Load Capacity: 6600 lb (3000 kg)
• Frame Dimension: 16.3"- 43.3" (415 - 1100 mm)
• Up Tilt Angle: 35°
• Down Tilt Angle: 51°
• Fork Spacing: 0"-36.6" (0 - 930 mm)
• Effective Thickness: 14.9" (378 mm)
• Horizontal Center of Gravity: 7.5" (190 mm)
• Hydraulic Pressure: 2000 - 3300 PSI (14 - 23 MPa)
• Hydraulic Flow: 1.1 - 3.2 GPM (4 - 12 L/min)
• Hydraulic Fittings: 1BH-06-16 (M16 to G3/8")
• Hydraulic hoses are not included.
• Net Weight: 629 lb (286 kg)

• 6600 Lb Capacity: Rated to handle loads up to 6600 lb, making it suitable for medium-duty tipping, dumping, and material handling applications.
• Tilt Angle + 35° to - 51°: Offers a wide tilting range for controlled material dumping, pouring, and unloading in industrial and agricultural work environments.
• Class III Mount: Designed for forklifts with Class II carriage mounting, making it suitable for many common mid-size forklifts.
• Reinforced Structure: Built with heavy-duty steel construction for reliable durability and long-lasting performance under repeated tipping cycles.
• Improved Dumping Efficiency: Ideal for unloading sand, gravel, scrap metal, grain, industrial parts, and other bulk materials from non-tiltable containers.
• Enhanced Pouring Accuracy: Provides controlled tilt movement, allowing operators to pour materials into smaller receivers or specific unloading areas.
