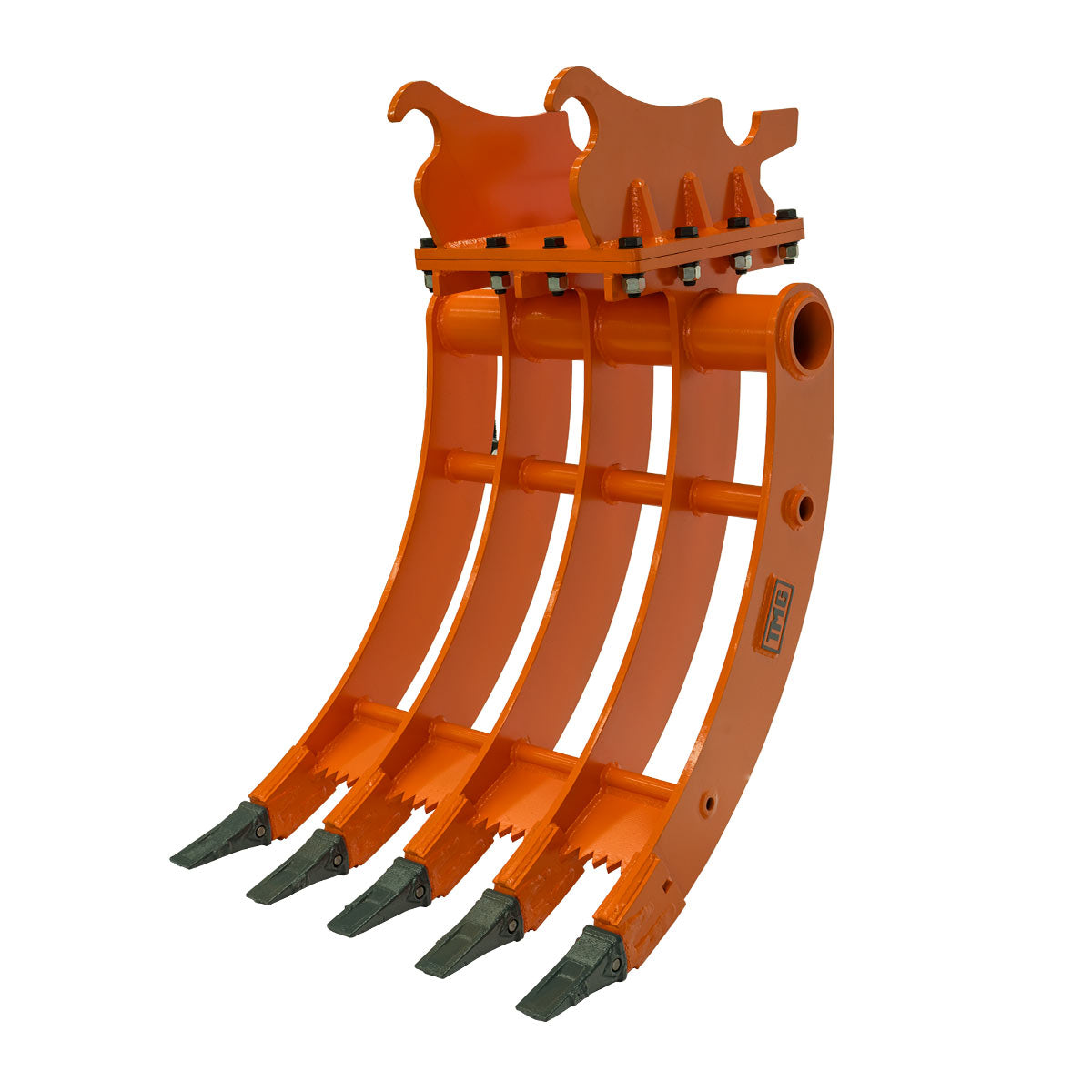

35" Excavator Rake for 10-18 Ton Excavators, 5 Tines, Root Rake, Quick Change, TMG-ERK35
- Richmond Warehouse 3 in stock
- Mississauga Warehouse Sold out
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store
The TMG-ERK35 Excavator Rake is a heavy-duty attachment designed for fast cleanup, soil separation and vegetation management work. Built for 10-18 ton excavators, it gives operators a practical tool for clearing unwanted material while keeping the excavator productive across site preparation and property maintenance jobs.
The 35" working width and five-tine design provide steady ground engagement, while the tine spacing allows soil to pass through as larger material is separated from the work area. The curved tine profile improves breakout force and makes the rake easier to use when loosening roots, brush and compacted surface material.
Built with approx. 0.75" thick steel plate tines, the TMG-ERK35 is made for regular use in demanding ground conditions. A replaceable ripper boot extends wear life, while quick-change lugging provides faster attachment and release when switching between excavator tools.
- Excavator weight: 10-18 ton
- Operating weight: 820 lb (372 kg)
- Working width: 35" (890 mm)
- Tine spacing: 7-3/4" (197 mm)
- Number of tines: 5
- Tine thickness: 3/4" (19 mm)
- 10-18 Ton Excavator: Designed for mid-size excavators requiring reliable raking performance in tougher ground and cleanup conditions.
- 35" Working Width: Wider working width gives operators steady material control during raking, clearing and soil separation work.
- 5 Steel Tines: Thick steel tines with open spacing provide durable ground engagement and efficient material separation.
- Curved Tine Design: Curved tine profile improves breakout force and material control during regular raking and clearing applications.
- Quick-Change Lugging: Q/C lugging design provides easier attachment and release, reducing setup time when switching excavator attachments.
