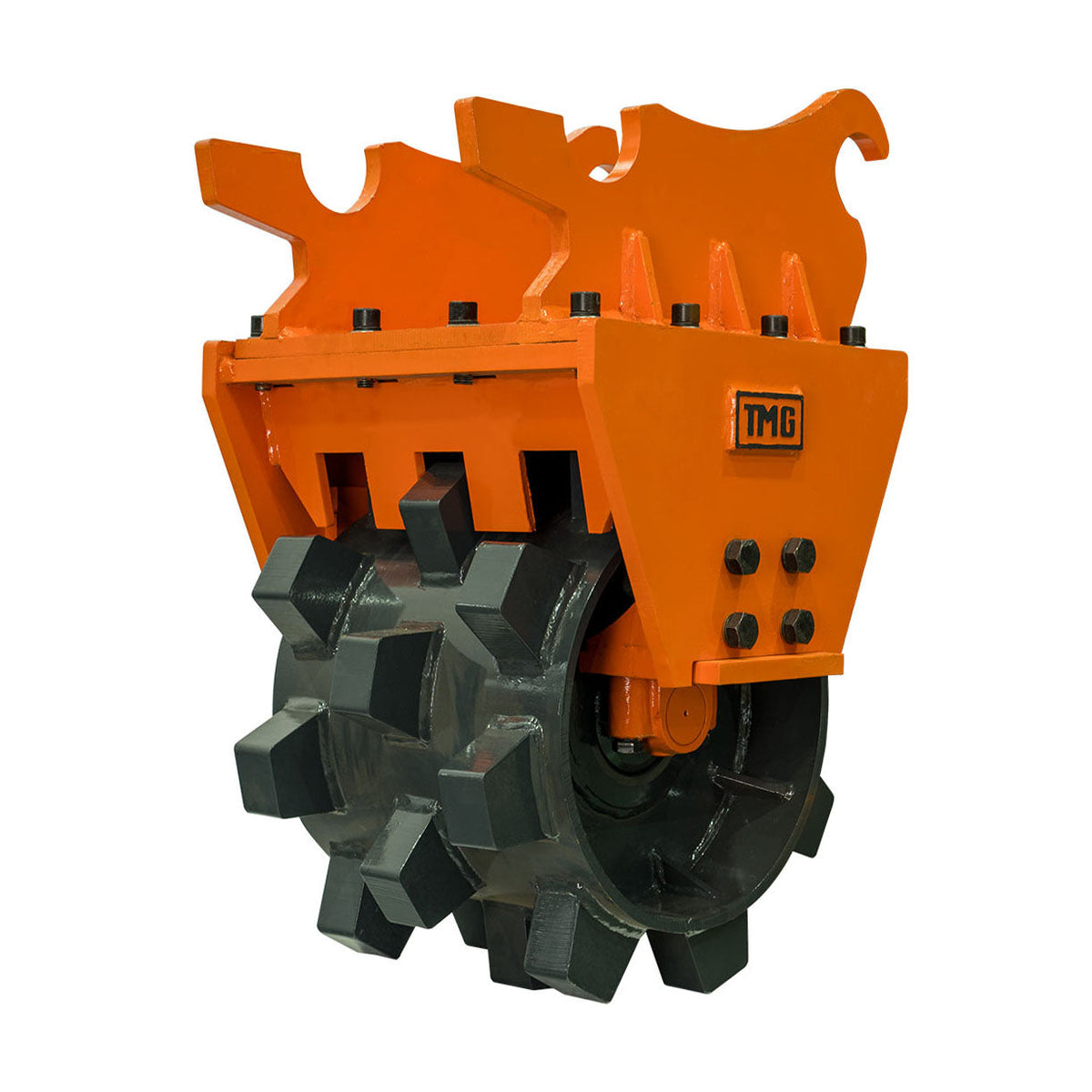

20" Compaction Wheel for 4-8 Ton Excavators, Quick change, 24 Tamping Pads, TMG-ECW20
- Richmond Warehouse 1 in stock
- Mississauga Warehouse Sold out
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store
The TMG-ECW20 20" Compaction Wheel is a heavy-duty excavator attachment designed for trench compaction, backfilling, and soil preparation work. Built for 4-8 ton excavators, it provides a compact and durable solution for contractors, landscapers, utility crews, and property maintenance operations working in narrow or hard-to-reach areas.
A 20" diameter wheel with 24 pads applies focused pressure into soil during repeated passes, helping compact backfill in trenching, drainage, foundation, and general excavation applications. Fully sealed self-aligning bearings support smooth wheel rotation, while side protector plates help reduce wear during regular jobsite use.
The internal mud guard helps prevent muck buildup inside the drum, making the attachment practical for wet or sticky ground conditions. With a strong compact frame and quick-change lugging design, the TMG-ECW20 helps improve excavator versatility without relying on diesel-fuelled trench rollers, compaction plates, or vibratory tandem rollers for every compaction task.
- Excavator compatibility: 4-8 ton excavators
- Overall dimensions: 30" x 20" x 20" (L x W x H), 760x500x510mm
- Wheel diameter: 20" (500 mm)
- Wheel width: 13-3/4" (350 mm)
- Number of pads: 24
- Product weight: 605 lb (274 kg)
- 4-8 Ton Excavator Range: Designed for compact and mid-size excavators, allowing operators to compact soil in confined areas.
- 20" Compaction Wheel: Large wheel diameter and 13-3/4" working width provide consistent ground contact for compacting trench fill and prepared soil.
- 24 Pad Design: Individual tamping pads apply concentrated pressure into the soil, increasing compaction during every repeated pass.
- Sealed Bearings: Fully sealed bearing design allows smooth wheel rotation while protecting internal components from dirt and debris.
- Protected Wheel: Side protector plates and an internal mud guard reduce wear and prevent muck buildup during operation.
- Quick-Change: Q/C lugging design provides easier attachment and release, reducing setup time when switching excavator attachments.
