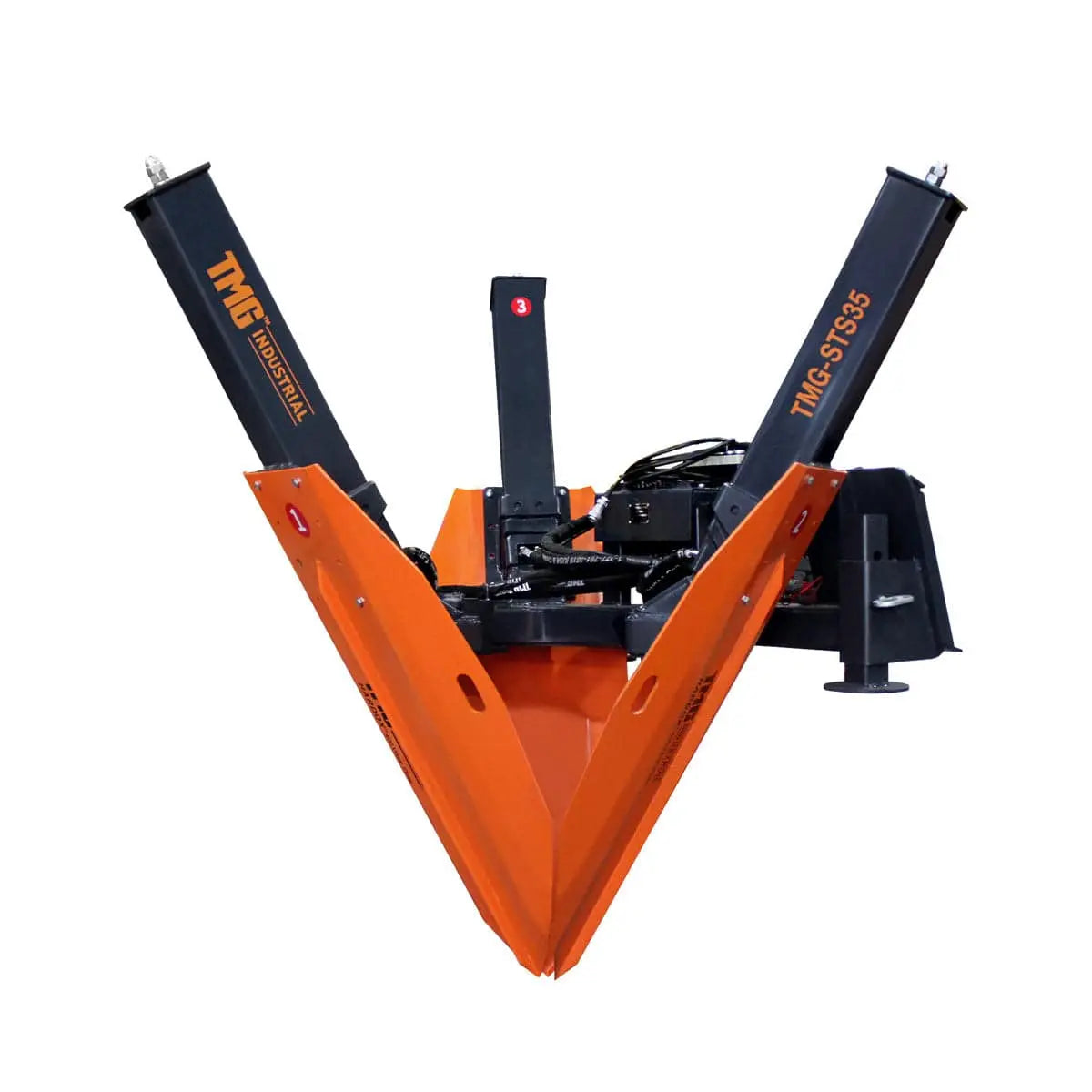

36" Skid Steer Hydraulic Tree Spade, 4" Diameter Cut Capacity, 22" Blade Opening, Hardox® 400 Blades, TMG-STS35
- Richmond Warehouse 6 in stock
- Mississauga Warehouse Sold out
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store
The TMG-STS35 Skid Steer Hydraulic Tree Spade is an excellent addition to the inventor of any nursery or landscaping business. Add phenomenal tree removal and transplanting capabilities to your customers with the clean and powerful working action of this tree spade. Equipped with heavy-duty Hardox® 400 Blades that slice through roots and minimize any damage to the tree so it can be immediately replanted or repurposed.
Capable of working with trees up to 4" in diameter so you can easily distribute new growth saplings to customers and sell more product without tearing up your growing grounds. The root ball itself is 27-½" in diameter and 36" in depth. Our tree spade has an opening of 22" and can accommodate various tree types ranging anywhere from four to six feet in height.
Three removable blades can easily be sharpened or replaced and are arranged opposite one another for a completely clean cut configuration that supports the root ball upon removal. Enclosed heavy gauge frame design provides firm rear stabilization and heavy down-pressure support for a smooth working action. This attachment mitigates the labor-intensive work around your nursery, is easy to maintain and ships free from our warehouse in Richmond, BC.
- Overall size: 72” (L) x 70” (W) x 72” (H)
- Operating weight: 1500 lb
- Tree height capacity: 4-6 feet (approx.)
- Max. root cutting capacity: 4”
- Max. ball diameter: 27-½”
- Max. ball depth: 36”
- Max. ball weight: 1250 lb
- Blade quantity: 3
- Max. blade opening: 22”
- Blade cylinder stroke: 28”
- Swing cylinder stroke: 4-½”
- Hardox® 400 steel blades:
- Hardness: 370-430 HBW
- Thickness: 8 mm
- Blades angle: 30°
- Flow rate: 16-21 GPM
- Pressure range: 1740-3045 PSI
- Hydraulic hoses, flat-face couplers and control box included
- Two height-adjustable kickstands
- Greaseable pin fittings
- Universal skid steer mount
- Incredible attachment for any nursery or landscaping business that needs to remove or transplant trees with minimal ground disturbance
- Abrasion-resistant Hardox® 400 steel blades provide toughness and durability to slice through tree roots and offer a clean cut every time
- 22” wide blade opening can accommodate various tree types up to 4” in diameter and four to six feet in height
- Oppositely configured blades form an evenly sized root ball for easy transplanting; blades are removable for easy changing and sharpening
- Enclosed heavy gauge frame design provides firm rear stabilization and heavy down-pressure support for a smooth working action
- Two height-adjustable kickstands for easy storage and greaseable pin fittings for simple routine maintenance that will keep this spade running long-term
- Universal mount that fits most skid steer makes and models; included hydraulic hoses, flat face couplers and control box
