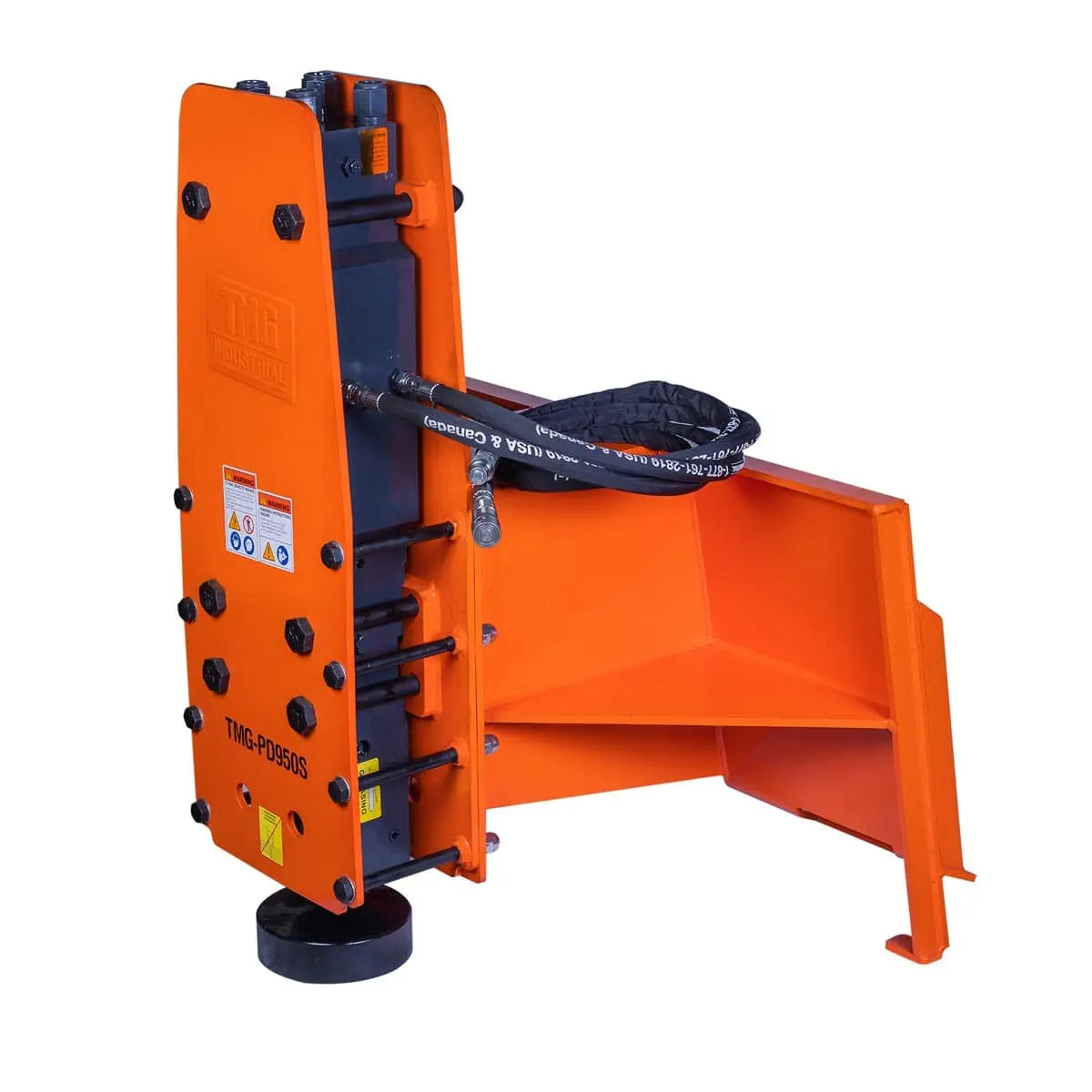

Skid Steer Post Pounder, Post Driver, 10" Post Diameter, 1030 J Energy, 400-800 BPM, TMG-PD950S
- Richmond Warehouse 5 in stock
- Mississauga Warehouse 2 in stock
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store
The TMG-PD950S Skid Steer Post Pounder is trusted by contractors, farmers and acreage homeowners across North America to install their fence posts and piping. Simple to attach hydraulic lines and a bolt-on, open frame mounting plate made of heavy gauge steel allow for a smooth and secure hook up to your machine. Easily set up a property perimeter, stand signs or put in agricultural fencing with this powerful post driver hammer.
Will accommodate posts up to 10" in diameter with a solid steel driving cup that efficiently transfers power from the piston to the object being struck. Four through bolts tightly affix the front/back head and cylinder of the post pounder for a durable construction that can handle its 1030 J energy and 400-800 BPM work capacity.
Located in the back head of the hammer is a cushion chamber charged with nitrogen (N2) gas that compresses during upward strokes of the piston. This serves to provide maximum absorption of piston recoil, efficiently storing this energy for the next blow. Continuous vibratory drive motion means posts will be in the ground in no time at all. Allows you to work smarter and protect your body from unnecessary labour.
We also carry a smaller model of this post pounder: TMG-PD700S.
- Operating weight: 1200 lb
- Energy class: 1030 J
- Skid steer lifting capacity required: 1750 lb
- Skid steer power recommended: 50-100 HP
- Hydraulic flow: 13-24 GPM
- Working pressure: 1750-2500 PSI
- Chisel shaft diameter: 3”
- Pounding rate: 400-800 BPM
- Steel plate frame: ¾”
- Driving cup inside size: 10” diameter
- Hydraulic hose: ½” diameter
- Universal skid steer quick attach mount
Accessories:
- (1) Service toolbox kit
- (2) ½” Hydraulic hoses and flat face couplers included
- (1) Nitrogen charge kit with CGA580 cylinder adaptor
- *Nitrogen does not come charged due to shipping protocols
- Handy addition to your farm, contracting business or home operations for the installation of posts, pipe, signs and fencing of all kinds
- Bolt-on open-frame mounting plate made of strong, heavy-gauge steel that is easy to attach to your machine and remove for routine maintenance
- Commercial-grade nitrogen power cell housed in the back head of the hammer provides maximum absorption of piston recoil for efficient hammering
- Front head provides support, piston converts kinetic energy to pounding and the cylinder contains a hydraulic circuit for piston reciprocation
- Continuous vibratory driving mode with a 400-800 BPM work rate evenly transfers energy downward into the object being hammered
- 1200 lb industrial steel construction with four through bolts that tightly affix the hammer’s front/back head and cylinder together
- High strength steel driving cup can accommodate posts up to 10” in diameter and effectively transfers the pounders 580 ft-lb energy capacity
