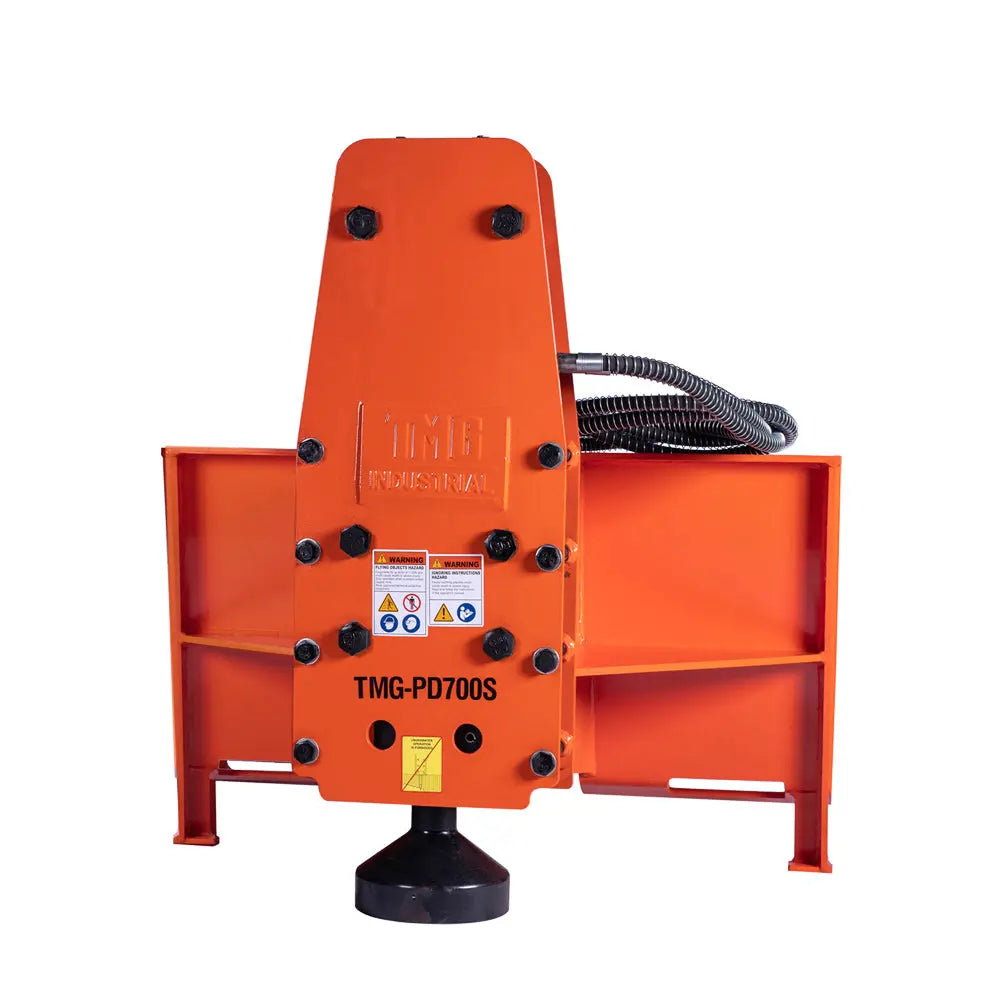

Skid Steer Post Pounder, Post Driver, 8" Post Diameter, 838 J Energy, 500-900 BPM, TMG-PD700S
- Richmond Warehouse 10 in stock
- Mississauga Warehouse 3 in stock
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store
The TMG-PD700S Skid Steer Post Pounder is trusted by contractors, farmers and acreage homeowners across North America to install their fence posts and piping. Simple to attach hydraulic lines and a bolt-on, open frame mounting plate made of heavy gauge steel allow for a smooth and secure hook up to your machine. Easily set up a property perimeter, stand signs or put in agricultural fencing with this powerful post driver hammer.
Will accommodate posts up to 8" in diameter with a solid steel driving cup that efficiently transfers power from the piston to the object being struck. Four through bolts tightly affix the front/back head and cylinder of the post pounder for a durable construction that can handle its 838 J energy and 500-900 BPM work capacity.
Located in the back head of the hammer is a cushion chamber charged with nitrogen (N2) gas that compresses during upward strokes of the piston. This serves to provide maximum absorption of piston recoil, efficiently storing this energy for the next blow. Continuous vibratory drive motion means posts will be in the ground in no time at all. Allows you to work smarter and protect your body from unnecessary labour.
We also carry a larger model of this post pounder: TMG-PD950S.
- Operating weight: 1100 lb
- Energy class: 838 J
- Skid steer lifting capacity required: 1500 lb
- Skid steer power recommended: 30-70 HP
- Hydraulic flow: 9.5-16 GPM
- Working pressure: 1600-2000 PSI
- Chisel shaft diameter: 68mm
- Pounding rate: 500-900 BPM
- Steel plate frame: ¾”
- Driving cup inside size: 8” diameter
- Hydraulic hose: ½” diameter
- Universal skid steer quick attach mount
Accessories:
- (1) Service toolbox kit
- (2) ½” Hydraulic hoses and flat face couplers included
- (1) Nitrogen charge kit with CGA580 cylinder adaptor
- *Nitrogen does not come charged due to shipping protocols
- Handy addition to your farm, contracting business or home operations for the installation of posts, pipe, signs and fencing of all kinds
- Bolt-on open-frame mounting plate made of strong, heavy-gauge steel that is easy to attach to your machine and remove for routine maintenance
- Commercial-grade nitrogen power cell housed in the back head of the hammer provides maximum absorption of piston recoil for efficient hammering
- Front head provides support, piston converts kinetic energy to pounding and the cylinder contains a hydraulic circuit for piston reciprocation
- Continuous vibratory driving mode with a 500-900 BPM work rate evenly transfers energy downward into the object being hammered
- 1100 lb industrial steel construction with four through bolts that tightly affix the hammer’s front/back head and cylinder together
- High strength steel driving cup can accommodate posts up to 8” in diameter and effectively transfers the pounders 700 ft-lb energy capacity
