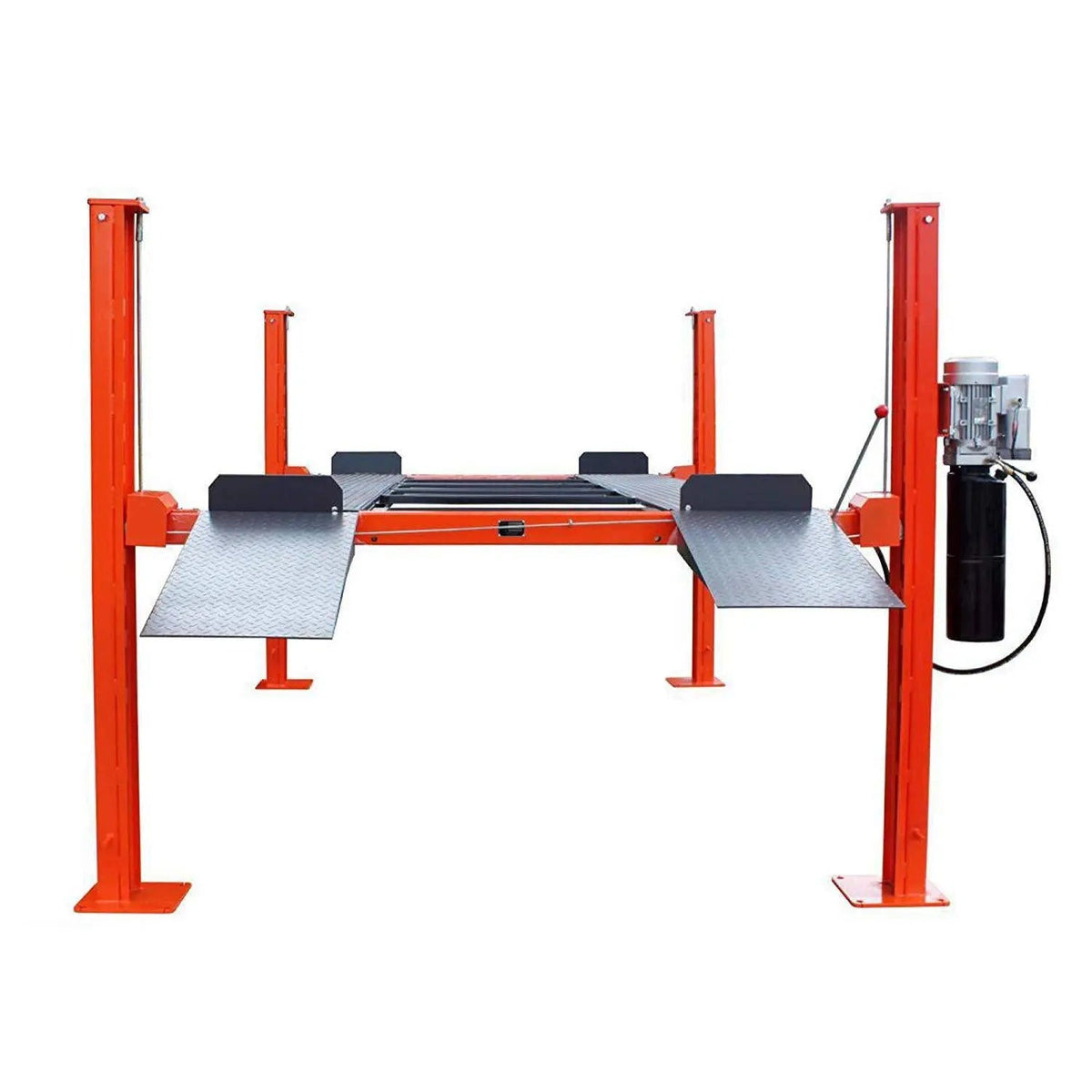

4-Post Auto Lift, 9,000 lb Lift Capacity, 77" Rise, Removable Ramp, CETL Certified Power Unit, TMG-ALF90
- Richmond Warehouse 12 in stock
- Mississauga Warehouse 2 in stock
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store
The TMG-ALF90 4-Post Auto Lift is an excellent choice for personal garages, small shops or general automotive service departments. With a 9000 lb lifting capacity and 77" lift height you can easily lift most cars, trucks and SUVs to fit another underneath or for mechanical work of any kind. Several safety elements have been built in to ensure a secure, reliable automotive work and storage solution that is heavy-duty and built to last.
This lift features a lock ladder column design which allows you to easily adjust the height inside each column. It is one of the safest columns on the market and the same system trusted by professional car dealerships and large automotive service centers. A non-skid surface runway and anti-sway slider blocks in each column help keep your vehicle in place during loading/unloading, work and storage.
A single hydraulic cylinder is mounted underneath the runway and is powered by a 220 VAC, 3 HP motor for smooth, steady lifting operation. This lift is versatile and can be used in any shop or home environment with three included drip trays for fluid checks, changes and repairs. Ships free from our warehouse in Richmond, BC.
- Max. lift capacity: 9,000 lb
- Max lift height: 77"
- Max lift clearance under runways: 73”
- Overall length: 207" (with ramps), 175’’ (w/o ramps)
- Outside column width: 105"(without motor), 117" (with motor)
- Length clearance between columns: 160’’
- Width clearance between columns: 92"
- Column height: 84"
- Column frame size: 6” x 2.75”
- Column base: 12” x 12”
- Column steel thickness: 8 gauge
- Runway length: 165”
- Runway width: 18.5”
- Runway metal thickness: ½’’
- Runway height on the ground: 4.5"
- Width between runways(outside): 75"
- Width between runways(inside): 37.5"
- Steel cable diameter: 3/8“ Optional parts: rolling jack
- Width range: 690-1175mm, Max height: 455mm, including connector
Hydraulic Pump Power Unit:
- 220VAC, 3HP, single phase
- No-load speed: 3360 RPM
- Working pressure: 2600 PSI
- Tank capacity: 2.5 US gallons
- Pump oil required: AW32/AW46
- ETL certified for Canada and the USA
- Great for classic car repairs, fluid checks/changes, commercial garages, home projects and increased vehicle storage space
- 9000 lb lift capacity and 77” lift height easily handles most cars, trucks and SUVs for dynamic storage and work possibilities
- Single hydraulic cylinder mounted underneath runway and powered by a 220 VAC, 3 HP, ETL Certified motor for smooth, steady lifting operation
- Lock ladder column design allows you to easily adjust the height of each column; widely considered the safest column design on the market
- Non-skid surface runway and anti-sway slider blocks in each column keep your vehicle in place during loading/unloading, work and storage
- Durable, industrial strength construction and manual safety release keeps you in control of any lowering action and reduces the risk of accidents
- Long approach ramps for low ground clearance vehicles that can be removed to further increase storage height underneath
- Mobile caster system available (sold separately in TMG parts store)
