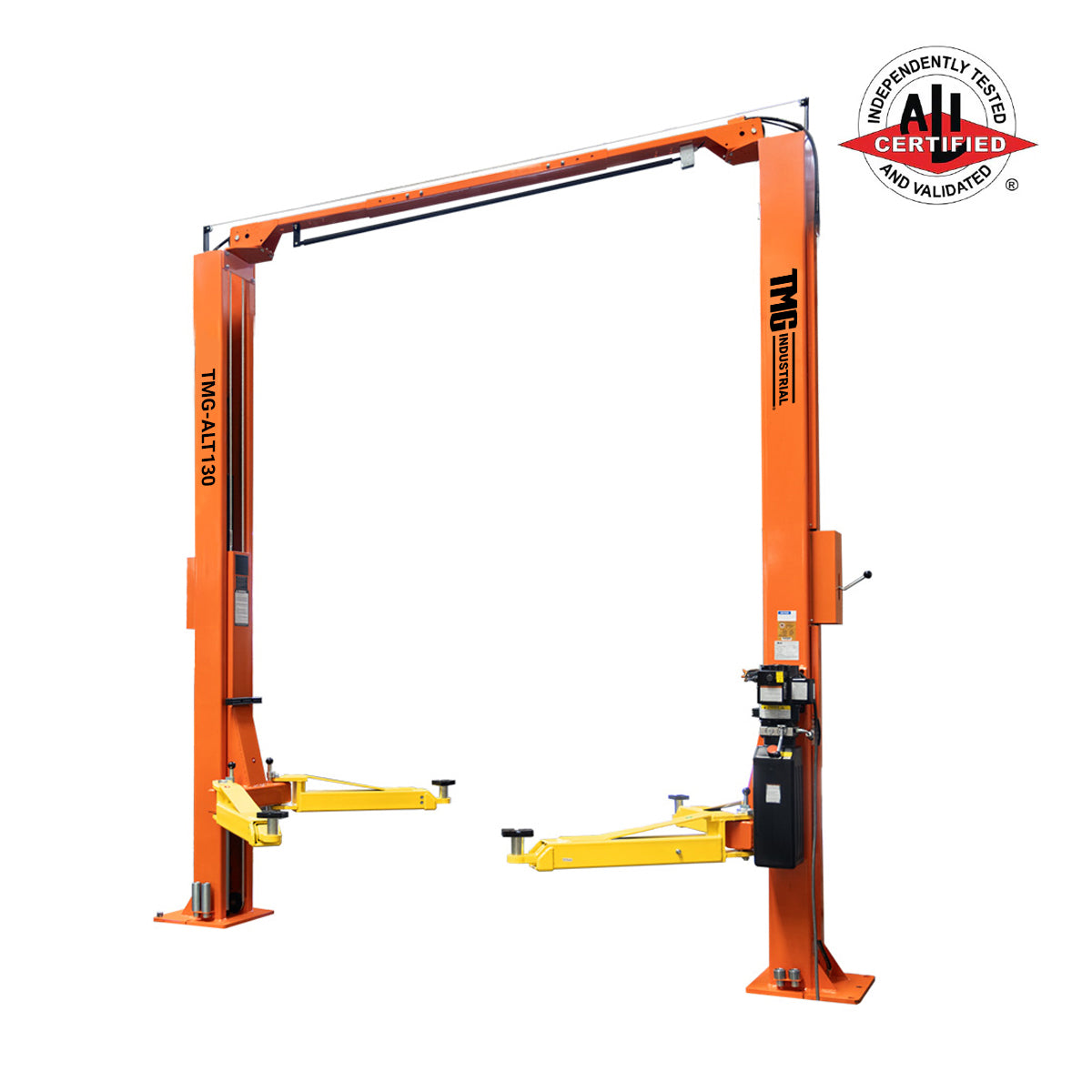

ALI Certified 10,000 lb Two-Post Overhead Auto Lift, Symmetric Arms, 79" Lift Height, 144" Cross Beam TMG-ALT130

The ALI Certified TMG-ALT130 Two-Post Overhead Auto Lift with a dual-purpose convertible arm design is built for commercial shops, professional garages, and personal workshops that need a strong, versatile, and safe lifting solution. With a 10,000 lb capacity and up to 79" of lift height (with adapters), it easily handles most cars, trucks, and SUVs for a variety of maintenance and repair tasks.

This ALI-certified lift meets industry safety standards and is approved for use in most commercial automotive shops. Its overhead crossmember design keeps hydraulic, cable, and electrical lines protected while maintaining a clear workspace. The crossmember also enhances structural stability and balance between the columns for smooth, secure operation.

Heavy-duty symmetric telescoping arms with auto restraints and a dual hydraulic chain-drive system ensure precise, reliable performance. Compact, durable, and easy to operate, the TMG-ALT130 provides lasting value and dependable lifting capability for both professional and personal use.

TMG Industrial also carries other Overhead Auto Lift models with ALI certification for enhanced safety and compliance:

• TMG-ALT120: Asymmetric/Symmetric Arms, 144" Columns
• TMG-ALT128: Asymmetric/Symmetric Arms, 166" Columns
• TMG-ALT138: Symmetric Arms, 166" Columns

• ALI Certified: Yes
• Load Capacity (lb): 10,000 lb
• Maximum Lift Height: 73" (Without Adapters), 79" (With 6" Adapters)
• Minimum Height from Ground: 4"
• Number of Adapter: 4 x 3 sets
• Adapter Height (inch): 1.5", 3", 6"
• Overall Height (inch): 144"
• Overall Width (inch):
  140" (Narrow Spacing), 146" (Medium Spacing), 152" (Wide Spacing)
• Column to Column Width:
  111" (Narrow Spacing), 117" (Medium Spacing), 123" (Wide Spacing)
• Drive Thru Clearance:
  100" (Narrow Spacing), 106" (Medium Spacing), 112" (Wide Spacing)
• Overhead Stop Height: 135"
• Front Arm Reach: 37" - 60"
• Rear Arm Reach: 37" - 60"
• Arm Spec:
  Rear Section: 120 x 110 x 6 mm, Middle Section: 100 x 90 x 8 mm, Front Section: 80 x 70 x 8 mm
• Column Spec: 288 x 175 x 6 mm
• Column Material: Heavy-duty Carbon Steel
• Safety Cable Spec:
  10 NAT 6 x 19s + IWS 1870 (Dia. 10 mm, Steel Core Wire, Tensile Strength 1870 MPa)
• Safety Cable Length: 10.1 m
• Travel Time: Lift in 60 Sec; Lower in 45 Sec

Hydraulic Power Unit:

• Power: 208 - 240V AC, 3 HP, Single Phase
• Rated Current: 16 A
• CIPR (Cubic Inches Per Revolution): 0.1288
• Pump RPM: 2880 / 3450
• Hydraulic Pressure: 2450 PSI
• Hydraulic Port: 9/16 - 18UNF
• Tank Capacity: 3.17 Gal
• Hydraulic Oil: AW32, AW46
• CETL Certified: Yes

Professional-Level Capacity

Lift capacity up to 10,000 lb, making it ideal for most cars, trucks, and SUVs.

Space-Saving Architecture

Compact two-post lift conserves valuable floor space while maintaining exceptional strength and operational stability.

Generous Working Space

Offers up to 73" (with adapters: 79") of lift height, enabling full undercarriage access for maintenance.

Versatile Width Adjustment

Three column-to-column width options adapt easily to varying worksite requirements.

Overhead Design

Overhead cross-member shields hydraulic hoses, cables, and wires while leaving workspace between columns clear.

Safety Overhead Switch

Overhead automatic stop prevents accidents, reduces equipment damage, and ensures safer operating conditions.

Adaptive Lift Arms

Symmetric, adjustable arms with automatic restraints provide stability across various vehicle types.

Durable Operation

Dual hydraulic chain-drive cylinders and heavy-duty steel cables deliver smooth, reliable performance under load.

Built for Longevity

Heavy-duty construction, dual mechanical safety locks, and self-lubricating components ensure sustained commercial-grade performance.
