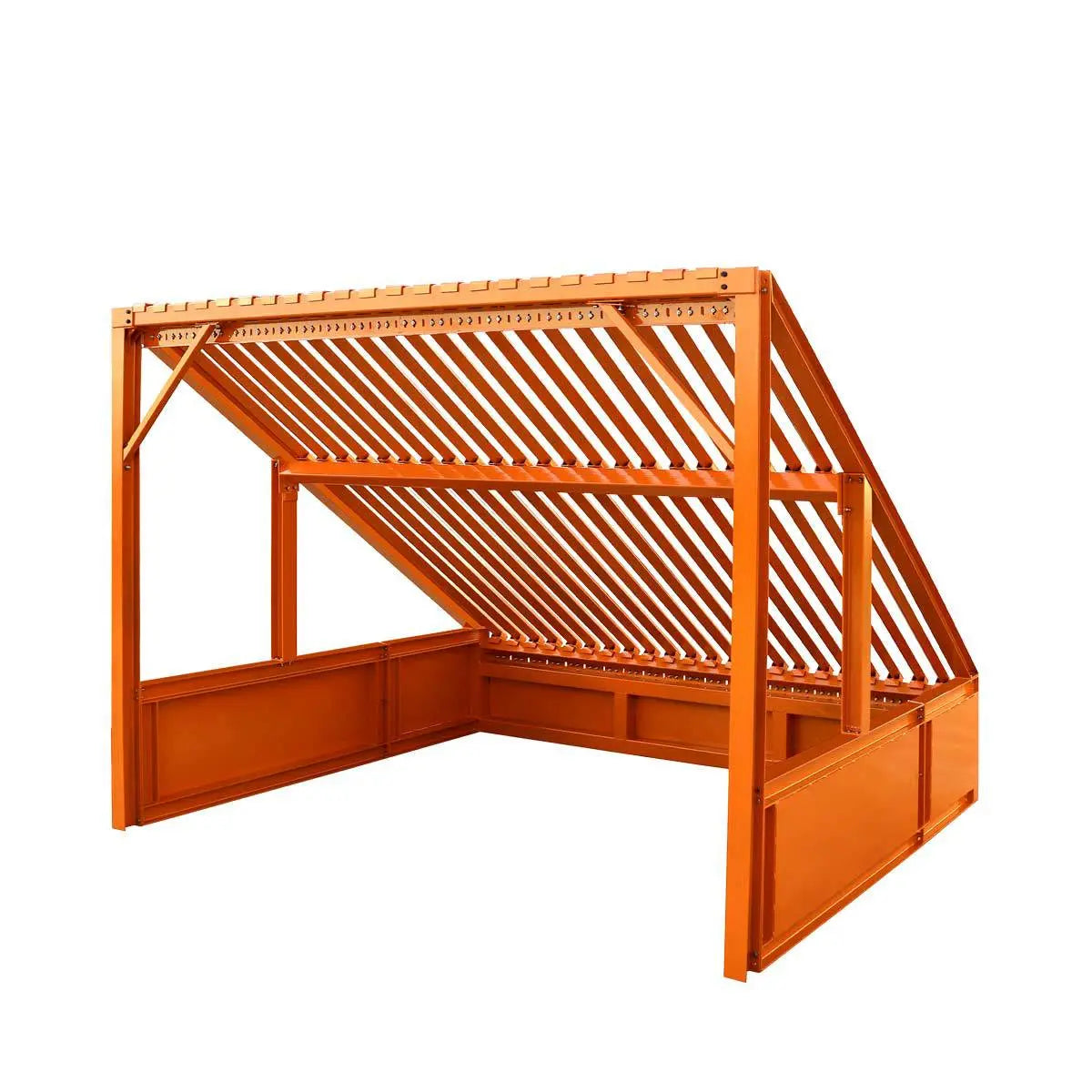

The TMG-RS12 Heavy-Duty Grizzly Static Rock Screen is designed for efficient material sorting in industries like mining, construction, aggregates, recycling, and landscaping. Featuring a robust 4"x4" I-beam frame and a powder-coated steel structure, this screen is built to last. The 12' x 9' loading area and 5000 lb load capacity are ideal for handling large, mixed loads. Adjustable bolt-on deck bars with 1" to 5" spacing provide versatility for different materials.
The diamond-shaped, self-cleaning deck bars reduce maintenance and ensure smooth material flow. The 37° slope allows debris to slide off efficiently, keeping your site clean. Quick to assemble and designed for heavy-duty use, the TMG-RS12 is perfect for pre-sorting oversized materials before crushing or further processing, saving time and improving productivity.
We also carry a smaller model of this screen: TMG-RS10
- Structure size: 12’(L) x 9’ (W) x 8.9’ (H)
- Average load capacity: 5000 lb
- Primary frame:
- 4” x 4” I-beam posts
- 4” x 4” crossing square tubing
- Sidewall and front wall steel plate: 10-gauge
- Deck bars: 1.6" x 1.6" square tubing, 11' in length, 8-gauge
- Standard bar spacing: 3"
- Standard bar quantity: 22 (3" spacing)
- Minimum bar spacing: 1" (extra deck bars required)
- Maximum bar quantity: 32 (1" spacing)
- Maximum bar spacing capacity: 5"
- First and the last deck bar opening: 2.75"
- Slope angle: 37°
- Spare deck bars sold separately
- Assembly required
- Assembly time: 2-3 hours for two handymen
- Ideal for a variety of industries and applications including open-pit mining, recycling, crushing, demolition and landscaping
- 4” x 4” heavy gauge I-beam structural design with a 5000 lb working capacity will handle any and all extreme working conditions
- Self-cleaning deck bars installed in a diamond shape angle with a tapered opening for long-term maintenance free screening
- Square tubing main frame is quick to assemble and can serve as a staple in your job site or work yard to be used whenever necessary
- Large 12’ x 9’ sift accepting area underneath isolates the clean product from your waste and keeps a tidy inventory of your materials
- Bolt-on adjustable deck bars have versatile minimum to maximum 1” (extra deck bars required) to 5” bar spacing options to fit your every need
- Industrial strength construction with a powdered coated finish that makes this screener resistant to rust, wear and corrosion
