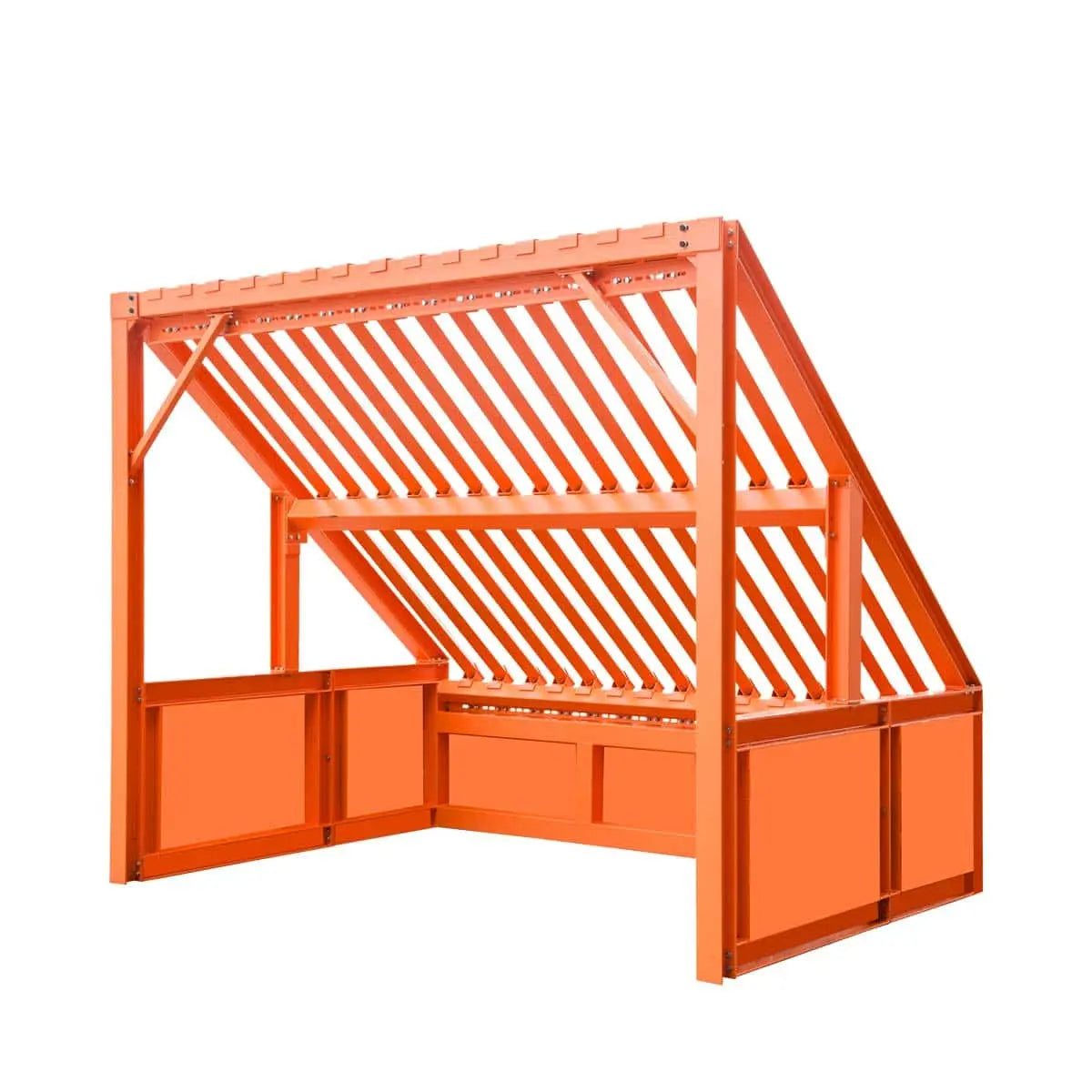

10' Heavy Duty Grizzly Rock Screen with Adjustable Deck Bars, 5000-lb Capacity TMG-RS10

The TMG-RS10 Heavy-Duty Grizzly Static Rock Screen is designed for efficient material sorting in industries like mining, construction, aggregates, recycling, and landscaping. Featuring a robust 4"x4" I-beam frame and a powder-coated steel structure, this screen is built to last. The 10' x 7' loading area and 5000 lb load capacity are ideal for handling large, mixed loads. Adjustable bolt-on deck bars with 1" to 5" spacing provide versatility for different materials.

The diamond-shaped, self-cleaning deck bars reduce maintenance and ensure smooth material flow. The 37° slope allows debris to slide off efficiently, keeping your site clean. Quick to assemble and designed for heavy-duty use, the TMG-RS10 is perfect for pre-sorting oversized materials before crushing or further processing, saving time and improving productivity.

We also carry a larger model of this screen: TMG-RS12 Parts and accessories of this product are compatible with Stanforge SF-RS10.

• Structure size: 10’ (L) x 7-¼’ (W) x 7-½’ (H)
• Average load capacity: 5000 lb
• Primary frame:
  • 4” x 4” I-beam posts
  • 4” x 4” crossing square tubing
• Sidewall and front wall steel plate: 10 GA
• Deck bar: 1-¾” x 1-¾” square tubing, 9’ in length, 8 GA
• Standard bar spacing: 3”
• Standard bar quantity: 18 (3” spacing)
• Minimum bar spacing: 1” (extra deck bars required)
• Maximum bar quantity: 26 (1” spacing)
• Maximum bar spacing capacity: 5”
• First and the last deck bar opening: 2-¾”
• Slope angle: 37°
• Spare deck bars sold separately
• Assembly required

• Ideal for a variety of industries and applications including open-pit mining, recycling, crushing, demolition and landscaping
• 4” x 4” heavy gauge I-beam structural design with a 5000 lb working capacity will handle any and all extreme working conditions
• Self-cleaning deck bars installed in a diamond shape angle with a tapered opening for long-term maintenance free screening
• Square tubing main frame is quick to assemble and can serve as a staple in your job site or work yard to be used whenever necessary
• Large 10’ x 7’ sift accepting area underneath isolates the clean product from your waste and keeps a tidy inventory of your materials
• Bolt-on adjustable deck bars have versatile minimum to maximum 1” (extra deck bars required) to 5” bar spacing options to fit your every need
• Industrial strength construction with a powdered coated finish that makes this screener resistant to rust, wear and corrosion
