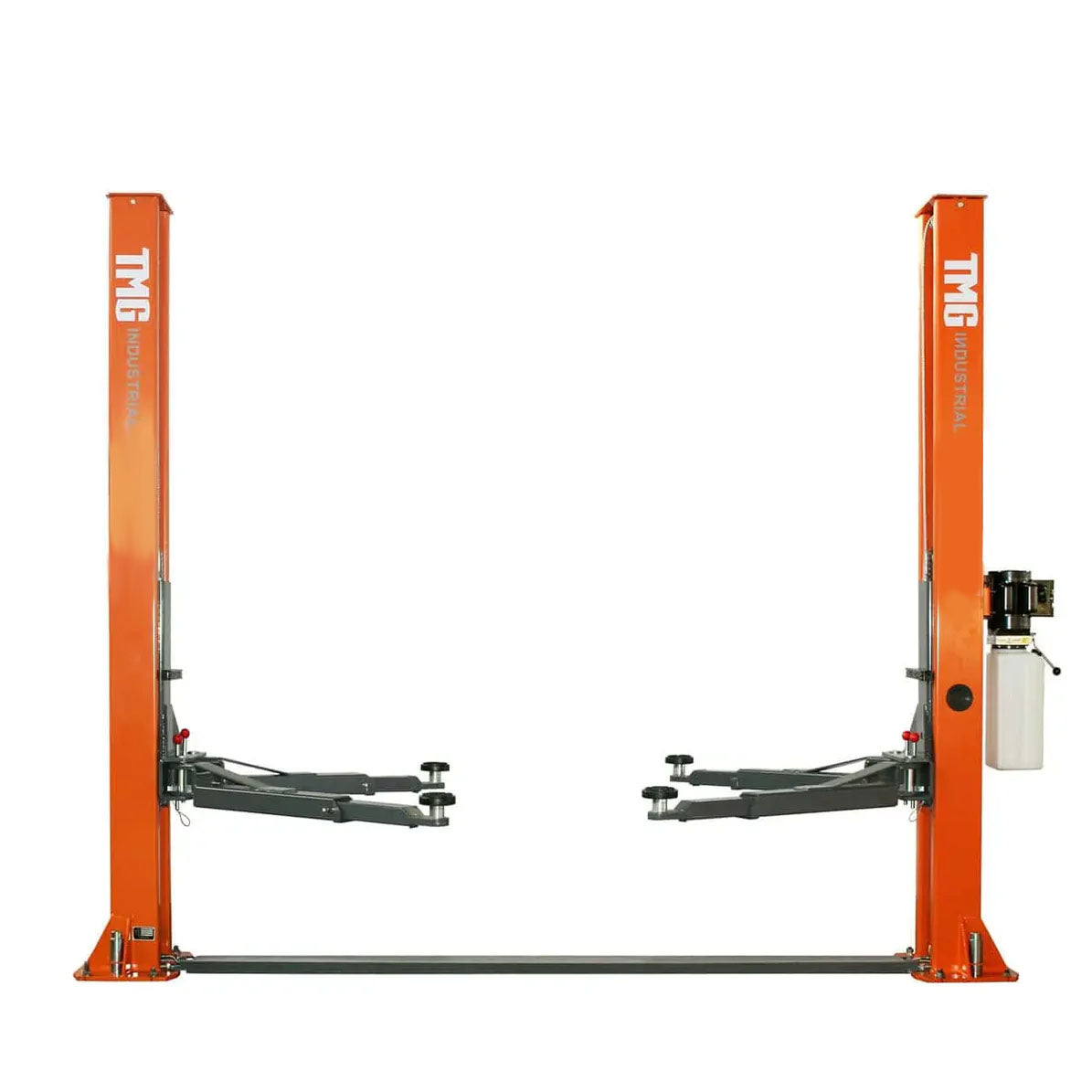

Two-Post Auto Lift, 10,000 lb Capacity with Floor Plate & Dual Lock for Shop & Garage TMG-TPL45

The TMG-TPL45 Two-Post Car Lift is a reliable, heavy-duty solution for home garages, auto shops, and service bays. With a 10,000 lb lifting capacity and 77" lift height, it easily lifts most cars, trucks, and SUVs for mechanical work and maintenance.

The floor plate design keeps hydraulic, cable, and electrical lines protected while providing full overhead clearance—ideal for low-ceiling spaces. Symmetric telescopic arms offer flexible positioning to support various vehicle types, while automatic arm restraints and self-lubricating carriage sliders ensure long-lasting performance with reduced wear.

Dual hydraulic chain-drive cylinders and 3/8" industrial-strength steel cables deliver smooth and stable lift operation. A reinforced structural base adds durability and safety, making this a dependable choice for any mechanic or DIYer.

Whether you're outfitting a personal garage or upgrading a small shop, the TMG-TPL45 delivers professional-grade lifting at an exceptional value. Parts and accessories of this product are compatible with Stanforge SF-TPL45.

• Lift capacity: 10,000 lb
• Overall height: 110”
• Overall width: 134”
• Outside column width: 124”
• Inside column width: 110”
• Crossing floor plate height: 1-¼”
• Column size: 10-1/2” x 7”
• Column base: 20” x 15”
• Column steel: 6 GA
• Carriage steel: 4 GA
• Cable diameter: ⅜”
• Lift height (pad only): 72”
• Lift height (with 5” adapter): 77”
• Lift height clearance: 71"
• Minimum height from the ground: 4-½”
• Drive through clearance: 100”
• Retractable front arm: 31-1/2” - 48”
• Retractable rear arm: 31-1/2" to 48"
• Travel speed:
  • Rise up at 90% load: 45 to 50 sec.
  • Lower down: 30 to 35 sec.
• Max. load capacity per arm: 2,500 lb
• Installation concrete slab required (minimum): 4-½” with 3000 PSI cured
• Automatic arm restraints
• Dual point lock release
• Mounting hardware included
• Requires 25A breaker

Hydraulic Motor Pump Power Unit:

• 220 VAC, 3 HP, single phase
• No-load speed: 3360 RPM
• Working pressure: 2600 PSI
• Tank capacity: 2.5 US gal
• Pump oil required: AW32/AW46
• CETL certified

• 10,000 lb lifting capacity and 77” lift height can accommodate most trucks, cars, SUVs and classic/sport models with ease
• Floor plate design protects cables, hydraulic lines and electrical wires while keeping the top open for maximum vehicle clearance overhead
• Symmetric telescopic reach arms on either side feature automatic arm restraints and offer a diverse array of support positions
• Dual hydraulic chain-drive cylinders power heavy-duty ⅜” steel cables and generate more than enough force for a smooth lifting operation
• Two post floor plate design is only limited by ceiling height; it has a small footprint and is easy to install in a variety of locations around your shop or garage
• Reliable, solid, industrial construction with a reinforced base
