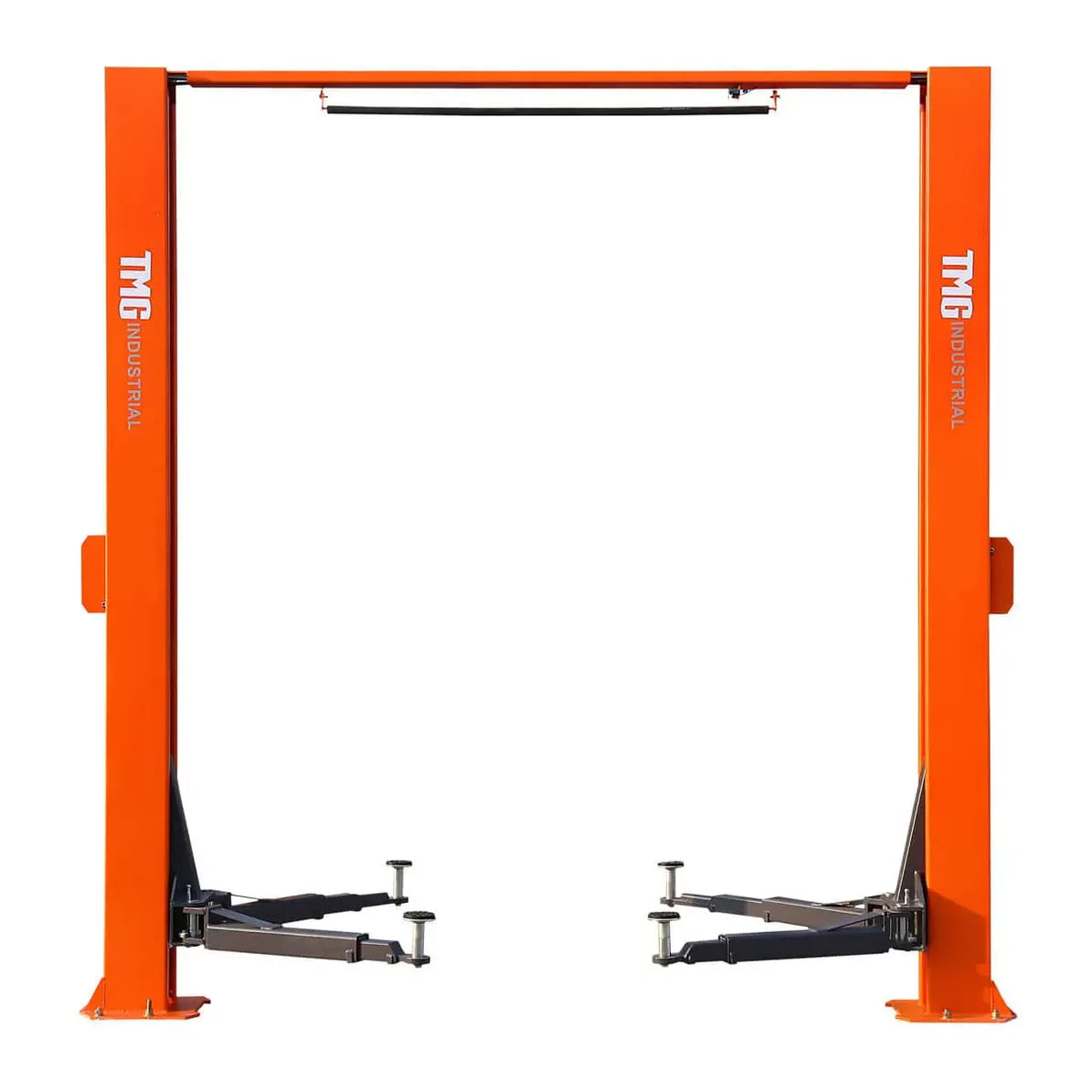

10,000-lb Two Post Overhead Auto Lift, Symmetric Arms, 72" Lift Height, Dual-Point Lock Release, TMG-ALT100

The TMG-ALT100 Two-Post Overhead Auto Lift is an excellent choice for personal garages, small shops or general automotive service departments. With a 10,000 lb lifting capacity and 72" lift height you can easily lift most cars, trucks and SUVs for mechanical work of any kind. An overhead cross member design keeps all hydraulic, steel cable and electrical lines protected while clearing the bottom for free space between the columns.

Symmetric telescopic reach arms on each side provide versatile support positions to accommodate all the unique makes and models you may be working on. Self-lubricated carriage sliders along the columns and automatic arm restraints reduce wear on the lift and will give you long lasting performance with lower operating costs and maintenance expenses.

Dual hydraulic chain-drive cylinders power ⅜" industrially strengthened steel cables that are fed through the columns and overhead to give you the force needed for smooth, efficient lift operation. This lift features an automatic overhead stop switch to maximize safety and has an overall heavy-duty, commercial construction that is strong, solid and built to last.

• Load capacity: 10,000 lb
• Overall height: 145”
• Overall width: 146”
• Overhead stop switch: 140”
• Column width: 137” (outsides), 118” (insides)
• Column size: 10” x 9-½”
• Column base: 19” x 17”
• Column steel thickness: 5 mm
• Max. lift height: 69” (without pads), 72” (with pads)
• Min. height with pad from the ground: 3”
• Drive through clearance: 107”
• Adapter height: 3” (4 pieces), 6” (4 pieces)
• Steel cable:
  • Length: 365”
  • Thickness: ⅜”
• Retractable front arm: 30” - 49”
• Retractable rear arm: 34” - 49”
• Arm steel thickness: 8 mm/6 mm
• Travel speed:
  • Rise up at 90% load: 45 to 55 seconds
  • Lower down: 30 to 40 seconds
• Max. load capacity per arm: 2,500 lb
• Automatic arm restraints
• Dual point lock release
• Mounting hardware included

Hydraulic Motor Pump Power Unit:

• 220 VAC, 3 HP, single phase
• No-load speed: 3360 RPM
• Working pressure: 2600 PSI
• Tank capacity: 2.5 US gal
• Pump oil required: AW32/AW46
• CETL certified

• 10,000 lb lifting capacity and 72” lift height can accommodate most trucks, cars, SUVs and classic/sport models with ease
• Overhead design protects cables, hydraulic lines and electrical wires while keeping the floor clear between columns for work on low profile vehicles
• Symmetric telescopic reach arms on either side feature automatic arm restraints and offer a diverse array of support positions
• Dual hydraulic chain-drive cylinders power heavy-duty ⅜” steel cables and generate more than enough force for a smooth lifting operation
• Automatic overhead stop switch installed at 140” to reduce the risk of damage/accidents and ensure safe working conditions
• Two post overhead design maximizes the lifting and stationary working stability; it has a small footprint and is easy to install in a variety of locations around your shop or garage
• Durable, reinforced construction ensures safety and reliability for personal workshops and high-use environments
