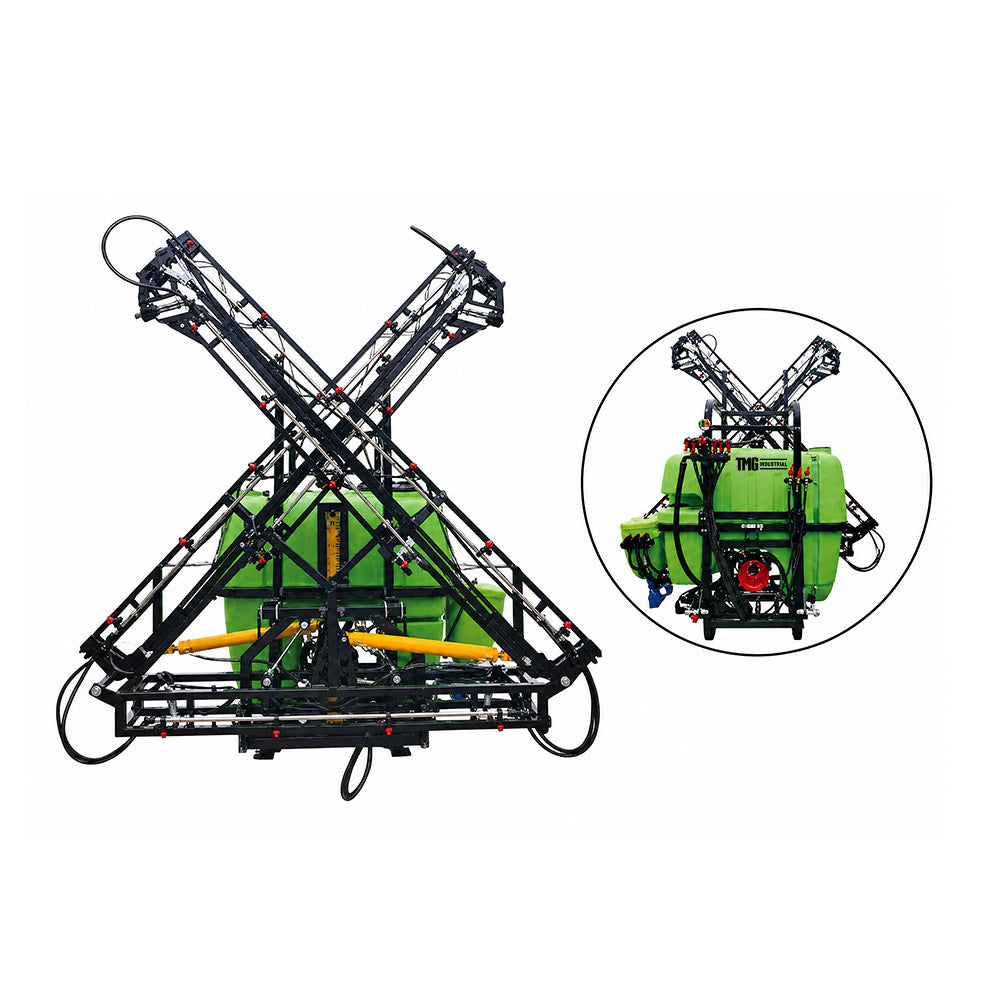

160 Gal Boom Sprayer, Hydraulic Folding 40' Boom, 20 GPM, Tractor Mounted 3-Point PTO, TMG-PSTB160H
- Richmond Warehouse Sold out
- Mississauga Warehouse Sold out
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store
The TMG-PSTB160H Sprayer is a tractor-mounted PTO sprayer designed for field, crop and property spraying applications. Its large tank capacity provides practical spray volume for covering wider treatment areas with fewer refills, making it suitable for larger acreage and agricultural maintenance work.
A 20 GPM spray system works with 24 nozzles and a 40' hydraulic folding boom to deliver broad, even coverage across the work area. The hydraulic folding design makes boom handling easier during transport, setup and storage, especially when moving between fields or work locations.
Built with balance and shock absorption systems, the TMG-PSTB160H keeps the boom steadier over uneven field conditions. The tractor-mounted frame make it a practical spraying solution for crop treatment, field maintenance and property spraying work where wide coverage and efficient operation are needed.
TMG also carries these models: TMG-PSTB160
- Chemical tank capacity: 160 gal (600 L)
- Tractor compatibility: 50 HP, 3 Point
- Pump flow rate: 20 GPM (78 L/min)
- Number of nozzles: 24
- Working pressure: 0-580 PSI (0-4 MPa)
- Circuit-washing tank capacity: 21.1 gal (80 L)
- Hand-washing tank capacity: 4.0 gal (15 L)
- Boom length: 40' (12 m)
- Fold / lift type: Hydraulic
- Net weight: 1190 lb (540 kg)
- PTO shaft: Not Included
- 3-Tank System: Includes a 160 gal chemical tank, circuit-washing tank and hand-washing tank for spraying, system rinsing and operator cleanup.
- 50 HP Tractor Compatibility: Built for larger tractors requiring reliable boom spraying performance across field treatment and crop care work.
- 40' Hydraulic Folding Boom: Wide boom coverage allows efficient field spraying, while hydraulic folding simplifies transport, setup and storage.
- 20 GPM Flow: 24-nozzle setup delivers steady spray output and even coverage across wider treatment areas during crop and field spraying work.
- Stable Boom System: Balance and shock absorption systems improve boom stability when working over uneven field conditions.
- 3-Point PTO Mount: Tractor-mounted frame creates a secure hitch connection for stable, dependable PTO-powered operation
