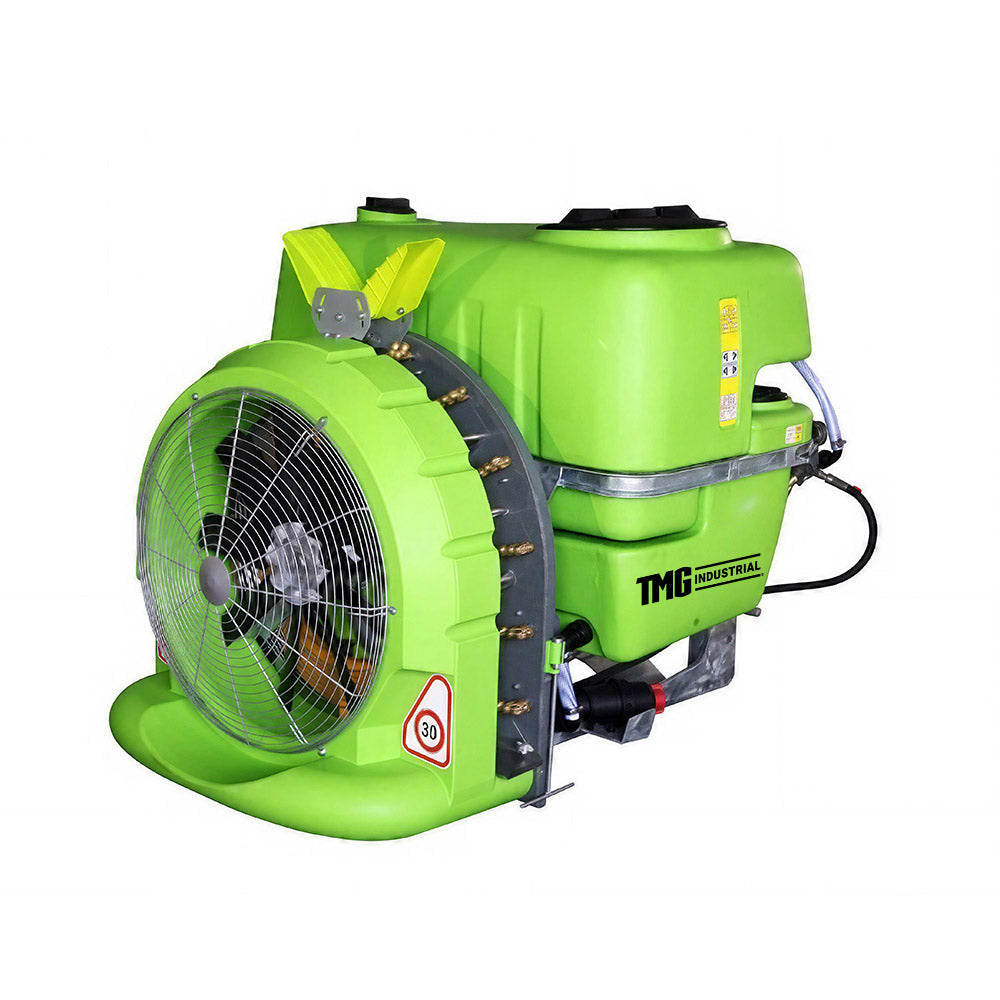

160 Gal Orchard Airblast Mist Sprayer, 20 GPM, Tractor Mounted 3-Point PTO, TMG-PST160
- Richmond Warehouse Sold out
- Mississauga Warehouse Sold out
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store
The TMG-PST160 Mist Sprayer is a tractor-mounted 3-point PTO sprayer designed for orchard, crop and property spraying work. Its 600 L tank capacity gives operators extended spraying volume for larger treatment areas and longer runs between refills.
The 20 GPM spray system uses 12 nozzles to deliver steady misting coverage, while the 10 m spray range gives operators practical reach around planted areas. A large 800 mm ventilation fan moves air through the spray pattern for effective distribution during agricultural spraying tasks.
Designed for tractors rated at 50 HP or greater, the TMG-PST160 mounts to compatible 3-point hitch systems.
- Chemical Tank Capacity: 160 gal (600 L)
- Tractor Compatibility: 50 HP, 3 Point
- Pump flow rate: 20 GPM (78 L/min)
- Number of nozzles: 12
- Working pressure: 0-580 PSI
- Spray range: 33' (10 m)
- Circuit-washing tank capacity: 21.1 gal (80 L)
- Hand-washing tank capacity: 4.0 gal (15 L)
- Ventilation fan diameter: 31.5" (800 mm)
- Net weight: 595 lb (270 kg)
- Mounting: Tractor mounted 3-point PTO
- PTO shaft: Not Included
- 3-Tank System: Includes a 160 gal chemical tank, circuit-washing tank and hand-washing tank for spraying, system rinsing and operator cleanup.
- 50 HP Tractor Compatibility: Designed for tractors rated at 50 HP for PTO-powered spraying applications.
- 3-Point PTO Mount: Tractor-mounted frame creates a secure hitch connection for stable, dependable PTO-powered operation
- 20 GPM Flow: 12-nozzle setup delivers steady spray output and even misting coverage for agricultural spraying work.
- 10 m Spray Range: Wide spray range gives operators broader reach for larger planting areas and regular property maintenance.
