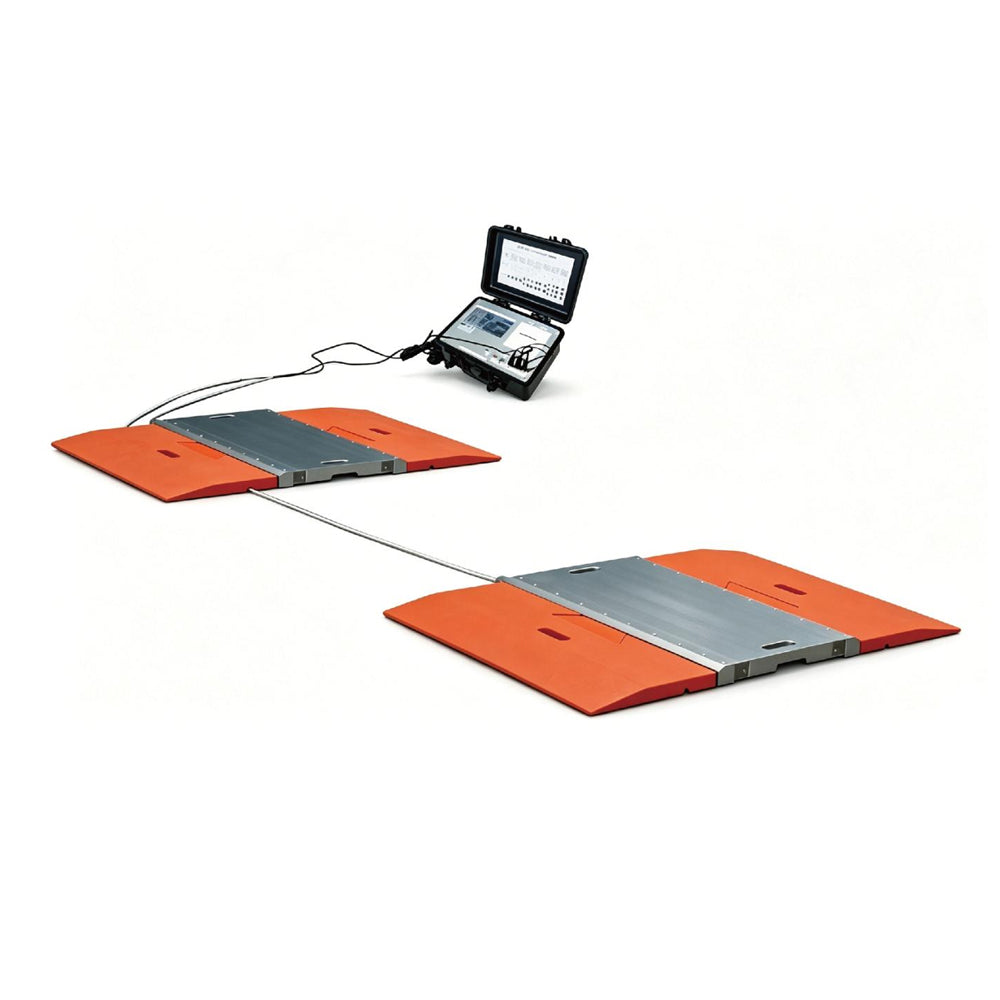

30 Ton Portable Axle Pad Scale, 15 Ton / 3300 lb Maximum Capacity Per Weighing Pad, Digital Display and Printer, TMG-FSP30

The TMG-FSP30 30 Ton Portable Axle Weighing Scale offers a heavy-duty, versatile, and fully mobile weighing solution tailored for highway inspection, construction sites, agriculture, and fleet management. Crafted from high-intensity aluminum alloy, the scale pads are lightweight enough for effortless transport between job sites while offering a robust ≤30-ton double-pad axle capacity. Built to operate reliably under rugged outdoor conditions, the scale features an IP66 waterproof rating, integrated seal protection, and an anti-electromagnetic interference system that ensures reliable, stable readings on standard concrete, flat dirt, or temporary construction grounds.

Engineered for flexibility, the TMG-FSP30 supports both in-motion (dynamic) and static weighing operations. Vehicles can drive across the pads at speeds up to 8 km/h for rapid, automated dynamic axle load calculations, or come to a full stop for high-precision static measurements. The system includes built-in auto-compensation algorithms to correct weighing errors on double- and triple-jointed axles, alongside a 120% load cell overload detector to ensure long-term durability and equipment safety.

The complete scale system is controlled via a smart 8-inch IPS touchscreen indicator wrapped in a protective hardshell case. Operating on a rechargeable battery or AC power, the indicator processes multi-channel inputs and features a built-in thermal printer to generate detailed weighing reports on-demand—including date, time, vehicle license number, individual axle weights, and overall total weight. With options for wired or wireless connectivity, cloud update integration, and customizable user permissions, the TMG-FSP30 delivers commercial-grade weighing efficiency wherever your fleet operates.

TMG also carries other models of floor scales: TMG-FS03, TMG-FS05, and TMG-FS10.

Weighing & Load Cell System

• Maximum Axle Capacity (2 Pads): ≤30 tons / 6,600 lbs
• Weighing Capacity per Pad: 15 tons / 3,300 lbs
• Number of Load Cells: 6 per pad
• Dynamic Accuracy: ≤±2.5%
• Static Accuracy (2-Pad Axle): ≤±0.3%
• In-Motion Speed Requirement: ≤8 km/h
• Overload Protection: 120%
• Wireless Distance: ≤30 m
• Operating Temperature: -10°C to +65°C (14°F to 140°F)
• Each Pad Size: 800 x 450 x 42 mm (31.5" x 17.7" x 1.7")
• Each Ramp Size: 800 x 350 mm (31.5" x 13.8")
• Overall Size (Pad + Ramps Assembly): 800 x 1060 x 42 mm (31.5" x 41.7" x 1.7")

Smart Touch Screen Indicator

• Screen Display: 8" IPS Touchscreen with True Color display
• Enclosure Material: Heavy-duty ABS
• Channels: 2 channels standard (expandable up to 16 channels)
• Units of Measurement: kg, ton, lb, kilo lb
• Power Supply: AC Adapter 110-240V (50/60Hz); Rechargeable Battery 6V/4000mAh
• Communication Interfaces:
  • Wired Edition: USB 2.0 and RS232 default
  • Wireless Edition: USB 2.0 and Bluetooth default (Optional Wi-Fi / LTE/5G)
• Printer: Built-in Thermo-Sensitive Dot Matrix Printer (uses 57.5 mm thermo-sensitive paper)
• Supported Languages: English, Spanish, French, Japanese and Chinese.
• System Capabilities: Auto-compensation system for double/triple joint axles, multipoint linear correction, multi-user permission management, and cloud support for remote updates

• High-Strength Aluminum Construction: Engineered with high-intensity aluminum alloy for a lightweight, easily portable structure built to endure demanding environments.
• IP66 Waterproof & Sealed Protection: Designed with IP66-rated waterproofing and full environmental sealing to withstand operations in heavy rain or snow.
• High-Accuracy Load Cells: Integrated with 6 precision load cells providing exceptional accuracy for both static axle weighing and in-motion measurement.
• 120% Overload Protection: Built-in overload detector protects the system against structural and electronic damage from unexpected, excessive axle loads.
• Anti-Electromagnetic Interference: Integrated shielding prevents external signals and electromagnetic noise from distorting weighing accuracy or altering recorded measurements.
• Smart Touch Screen Indicator: Features an 8-inch true color IPS touchscreen with built-in thermal printing, user permission controls, and multi-language support.
