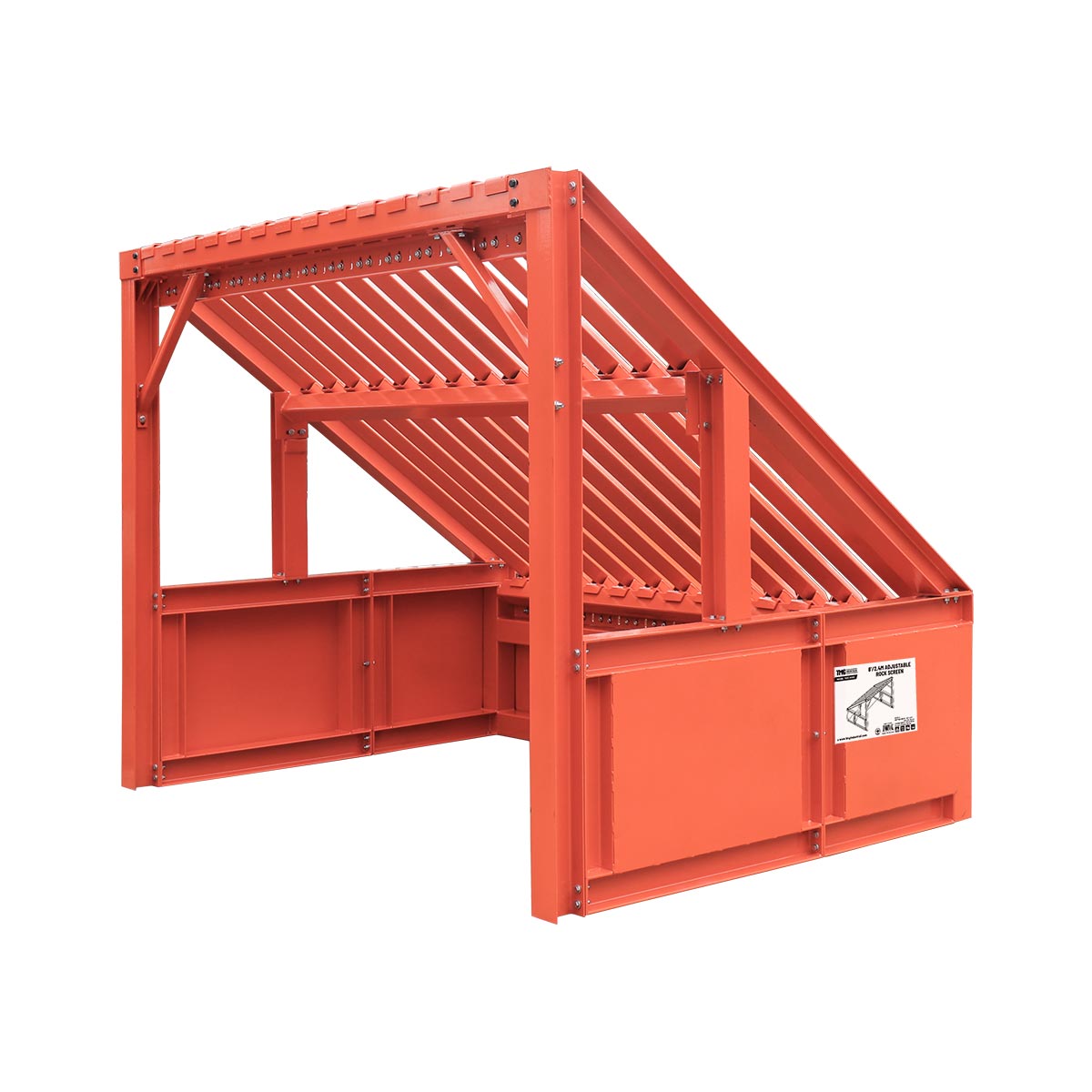

8' Heavy Duty Grizzly Rock Screen with Adjustable Deck Bars, 5000-lb Capacity TMG-RS08
- Richmond Warehouse 4 in stock
- Mississauga Warehouse Sold out
- Richmond Store Check with store
- Kelowna Store Check with store
- Oakville Store Check with store
The TMG-RS08 Heavy-Duty Grizzly Rock Screen is built for efficient material screening in open-pit mining, demolition, landscaping, construction, and land clearing applications. Designed as a static screening solution, it helps separate usable material from oversized rocks, debris, roots, and site waste.
With a large internal screening area, adjustable deck bar spacing, and a 5000 lb load capacity, this grizzly screen is practical for processing soil, gravel, aggregate, and mixed jobsite material. The 37° screening slope helps material move through the deck while allowing larger rocks and debris to fall away from the work area, resulting in cleaner separation.
Built with reinforced steel components, approx. Featuring a robust 4"x4" I-beam frame and powder-coated surfaces, the TMG-RS08 is made for dependable outdoor performance. It is a durable, low-maintenance screening solution for contractors, landscapers, acreage owners, and material handling operations.
- Product Dimensions: 95-1/2" (L) x 69-1/4" (W) x 77-3/4" (H)
- Maximum Load Capacity: 5000 lb
- Primary Frame: 4” x 4” I-beam posts
- Internal Screening Area: 87-1/2" x 65-3/8"
- Standard Bar Quantity: 14 bars (3" spacing)
- Minimum Bar Spacing: 1” (extra deck bars required)
- Maximum Bar Spacing: 5"
- Screening Slope Angle: 37°
- Product Weight: 1605 lb (729 kg)
- Heavy-Duty Screening Capacity: Built to handle up to 5000 lb while separating rock, debris, soil, gravel, and oversized material in demanding outdoor work environments.
- Large Internal Capacity: Spacious 88" x 65" internal bucket dimensions provide ample room for efficient material handling and screening operations.
- Adjustable Bar Spacing: Configurable screening bars support spacing from 1" with 20 bars up to 5" with 10 bars to accommodate various material sizes and applications.
- Optimal Slope Design: Engineered with a 37° slope angle to promote efficient material flow, debris removal, and effective separation performance.
